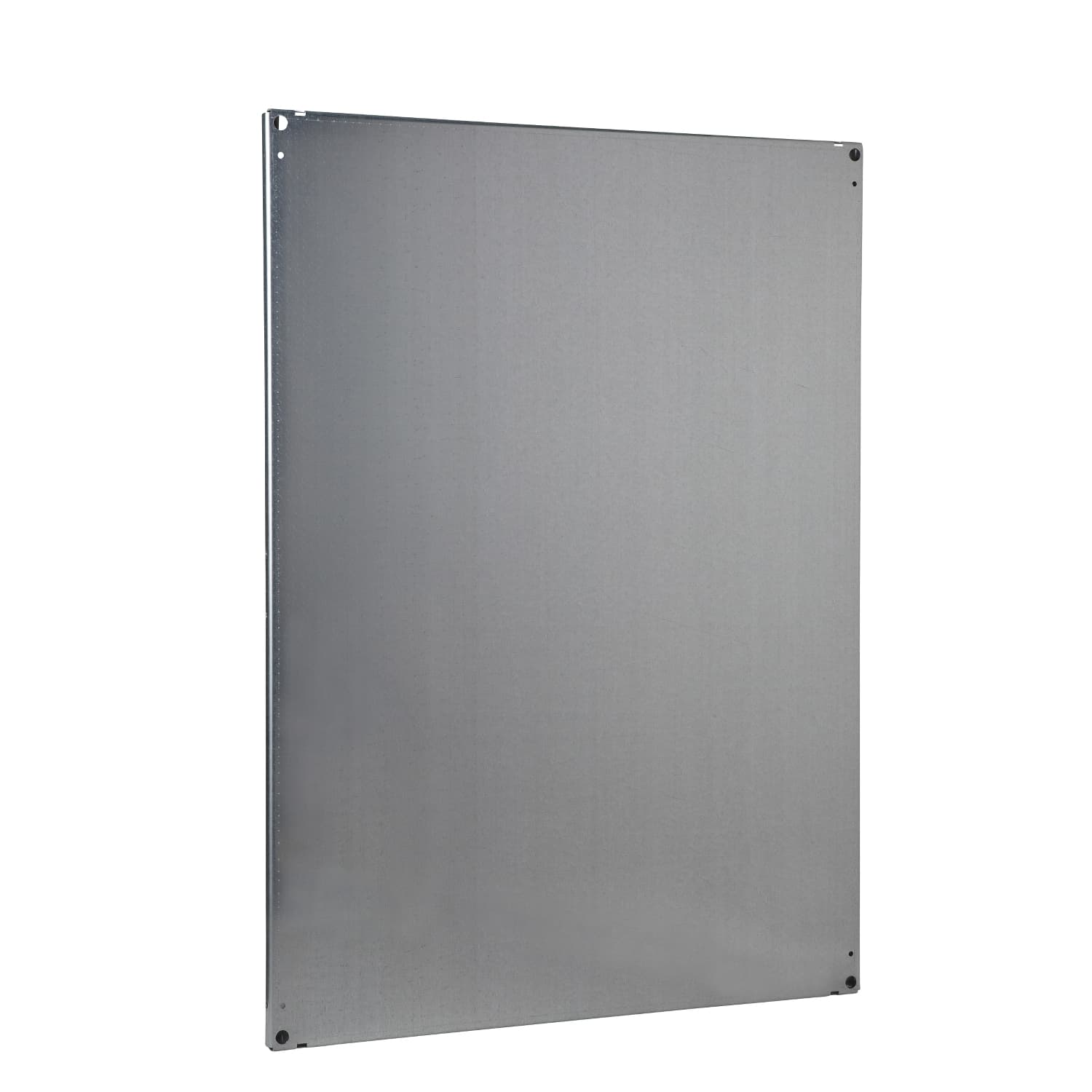

Schneider Electric PanelSeT mounting plate. Plain mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure H2000 W1600mm, galvanized steel.
Plain mounting plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure H2000 W1600mm, galvanized steel. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| Range | PanelSeT |
|---|
| Accessory / separate part category | Mounting accessory |
|---|
| Product or component type | Mounting plate |
|---|
| Device application | Multi-purpose |
|---|
| Enclosure nominal dimensions | - H: 2000 mm W: 1600 mm |
|---|
| Mounting plate description | Plain |
|---|
| Range compatibility | PanelSeT SF · PanelSeT SM · PanelSeT SFX · PanelSeT SMX |
|---|
| Device composition | 1 mounting plate · 2 sliding shoes |
|---|
| Quantity per set | Set of 1 |
|---|
| Material | Galvanised steel |
|---|
| Fixing mode | By fixing brackets |
|---|
| Maximum load | 300 kg/m² |
|---|
| Permanent permissible load | 500 kg intermediate position · 600 kg back of the enclosure |
|---|
| Height | Fixing centers: 1850 mm · Nominal: 2000 mm · Real: 1897 mm |
|---|
| Width | Fixing centers: 1450 mm · Nominal: 1600 mm · Real: 1496 mm |
|---|
| Depth | 27 mm |
|---|
| Unit Type of Package 2 | PAL |
|---|
| Number of Units in Package 2 | 10 |
|---|
| Package 2 Height | 49.000 cm |
|---|
| Package 2 Width | 200.000 cm |
|---|
| Package 2 Length | 152.000 cm |
|---|
| Package 2 Weight | 745.000 kg |
|---|
| Warranty (in months) | 18 |
|---|
