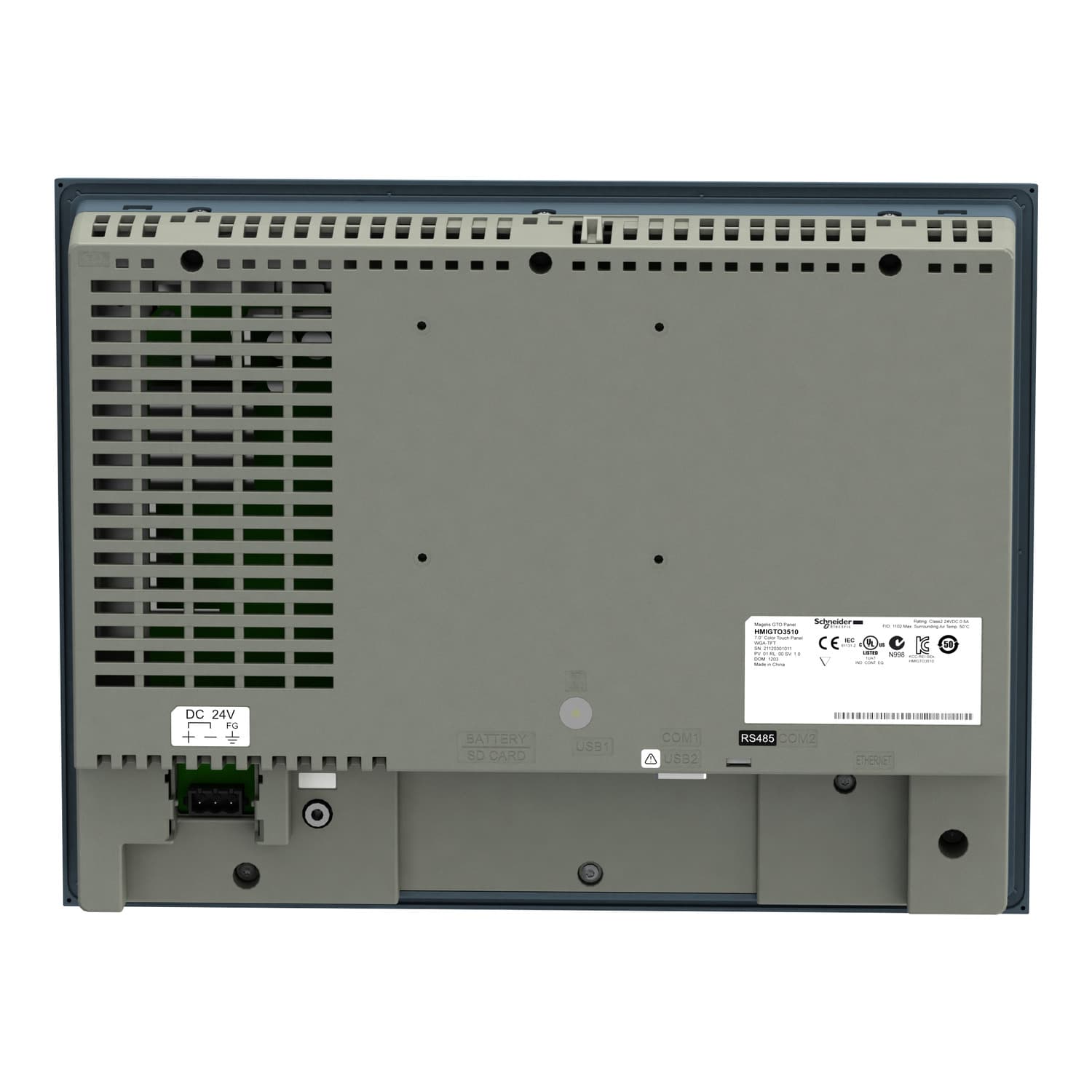

Schneider Electric advanced touchscreen panel. advanced touchscreen panel, Harmony GTO,800 x 600pixels SVGA, 12.1inch TFT, 96MB.
advanced touchscreen panel, Harmony GTO,800 x 600pixels SVGA, 12.1inch TFT, 96MB. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony GTO |
|---|---|
| Product or component type | Advanced touchscreen panel |
| Display colour | 65536 colours |
| Display size | 12.1 inch |
| Supply | External source |
| Battery type | Lithium battery for internal RAM, autonomy: 100 days, charging time = 5 day(s), battery life = 10 year(s) |
| Processor name | ARM926EJ-S |
| Software package | Vijeo Designer |
| Terminal type | Touchscreen display |
| Display type | Backlit colour TFT LCD |
| Display resolution | 800 x 600 pixels SVGA |
| Touch sensitive zone | 1024 x 1024 |
| Touch panel | Resistive film, 1000000 cycles |
| Backlight lifespan | 50000 hours white at 25 °C |
| Brightness | 16 levels - control by touch panel · 16 levels - control by software |
| Character font | Taiwanese (traditional Chinese) · ASCII (European characters) · Chinese (simplified Chinese) · Japanese (ANK, Kanji) · Korean |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…28.8 V |
| Inrush current | 30 A |
| Maximum power consumption in W | 12 W when power is not supplied to external devices · 7 W when backlight is OFF · 8 W when backlight is dimmed · 17 W |
| Local signalling | Status LED green, steady for offline · Status LED green, steady for operating · Status LED orange, flashing for software starting up · Status LED red, steady for power supply (ON) · Status LED clear, faded for power supply (OFF) · COM2 LED yellow, steady for data is being transmitted · COM2 LED yellow, faded for no data transmission · SD card LED green, steady for card is inserted · SD card LED green, faded for card is not inserted or is not being accessed |
| Memory description | Flash EPROM, 96 MB |
| Data backed up | 512 KB internal RAM (SRAM) |
| Data storage equipment | SD card, <= 32 GB · SDHC card, <= 32 GB |
| Downloadable protocols | Schneider Electric Modicon Modbus · Schneider Electric Modicon Uni-TE · Schneider Electric Modicon Modbus Plus · Schneider Electric Modicon FIPWAY · Mitsubishi Melsec third party protocols · Omron Sysmac third party protocols · Rockwell Automation Allen-Bradley third party protocols · Siemens Simatic third party protocols · Schneider Electric Modicon Modbus TCP |
| Integrated connection type | COM1 serial link SUB-D 9, interface: RS232C, transmission rate: 2400...115200 bps · COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps · COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI · Ethernet RJ45, interface: 10BASE-T/100BASE-TX · Ethernet RJ45, interface: IEEE 802.3 · USB 2.0 type A · USB 2.0 type mini B |
| Product mounting | Flush mounting |
| Fixing mode | By 4 screw clamps |
| Front material | PPT |
| Enclosure material | PPT |
| Type of cooling | Natural convection |
| Width | 315 mm |
| Height | 241 mm |
| Depth | 56 mm |
| Product weight | 2.5 kg |
| Standards | UL 508 · IEC 61131-2 · IEC 61000-6-2 |
| Product certifications | C-Tick · KCC · cULus · CE · UKCA · UKEX |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % without condensation |
| Operating altitude | < 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529 · IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z conforming to IEC 61131-2 |
| Vibration resistance | 3.5 mm (f = 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2 · 1 gn (f = 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - conforming to IEC 61131-2 |
