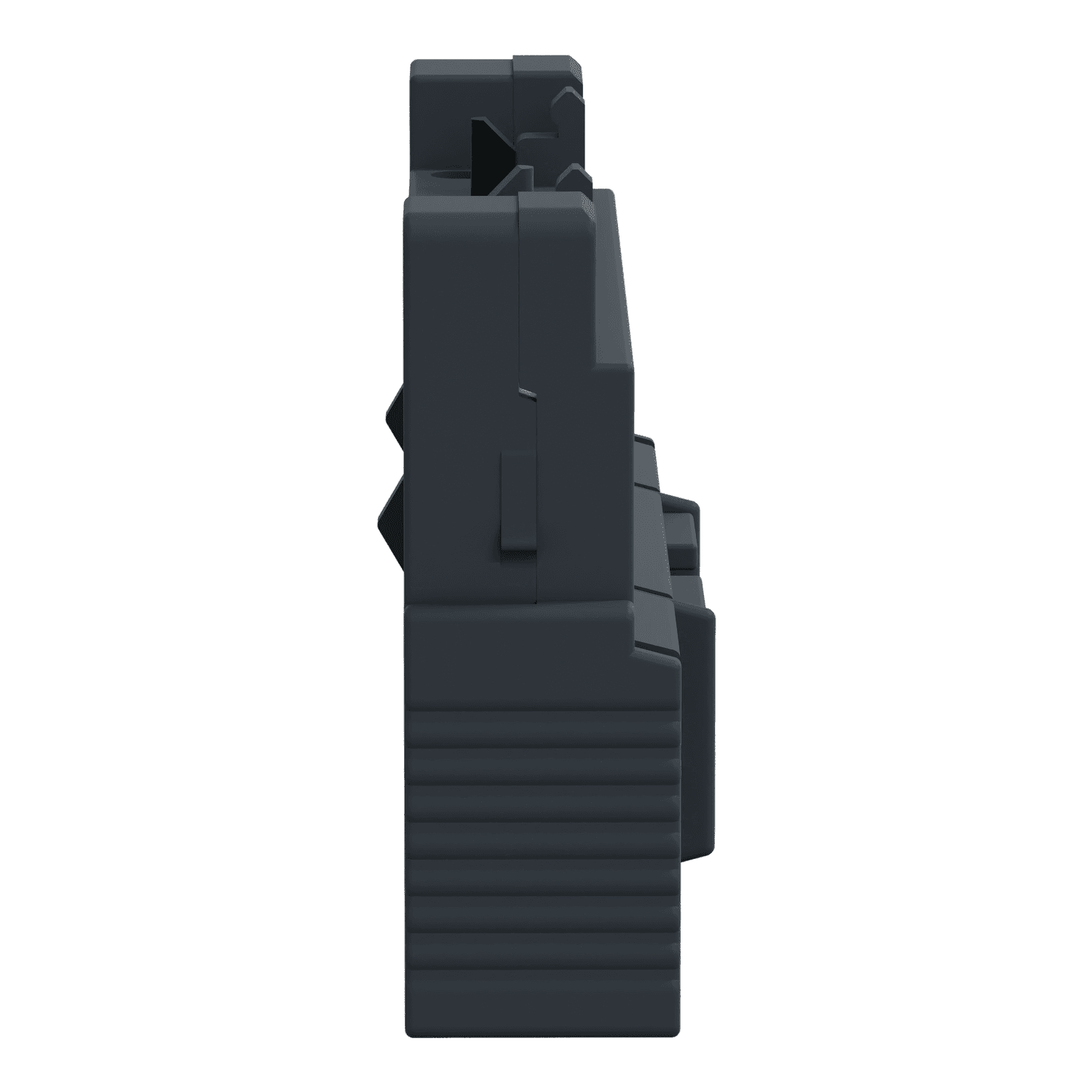

Schneider Electric TeSys · TeSys Deca auxiliary contact block, rated 2.5 A. Auxiliary contact block,TeSys Deca,2NO,front mounting,for GV2.
Auxiliary contact block,TeSys Deca,2NO,front mounting,for GV2. Genuine Schneider Electric product supplied by United Force.
| Range | TeSys · TeSys Deca |
|---|---|
| Device short name | GVAE |
| Product or component type | Auxiliary contact block |
| Product compatibility | GV2P · GV2L · GV2ME · GV2LE · GV2RT · GV2LM · GV3P · GV3L |
| Mounting location | Front side |
| Pole contact composition | 2 NO |
| Quantity per set | Set of 10 |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 · 300 V conforming to CSA C22.2 No 14 · 250 V conforming to IEC 60947-1 |
| [Ue] rated operational voltage | 24...240 V AC · 24...60 V DC |
| [Ith] conventional free air thermal current | 2.5 A |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GG fuse 10 A · GB2CB06 circuit breaker 10 A maximum |
| Rated operational power in VA | 120 VA at 110…120 V AC-15 - electrical durability: 100000 cycles · 120 VA at 230…240 V AC-15 - electrical durability: 100000 cycles · 48 VA at 24 V AC-15 - electrical durability: 100000 cycles · 60 VA at 48 V AC-15 - electrical durability: 100000 cycles |
| Rated operational power in W | 15 W at 48 V DC-13 - electrical durability: 100000 cycles · 24 W at 24 V DC-13 - electrical durability: 100000 cycles · 9 W at 60 V DC-13 - electrical durability: 100000 cycles |
| Tightening torque | 1.7 N.m screw clamp terminals |
| Height | 11 mm |
| Width | 45 mm |
| Depth | 29 mm |
| Product weight | 0.02 kg |
| Colour | Dark grey |
| Environmental characteristic | Normal environment |
| Standards | EN/IEC 60947-5-1 · UL 60947-4-1 · CSA C22.2 No 60947-4-1 · IEC/EN 60335-1:Clause 30.2 · IEC/EN 60335-2-40:Annex JJ |
| Product certifications | CB Scheme · CE · UKCA · CCC · cULus · EAC |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.000 cm |
| Package 2 Width | 20.000 cm |
| Package 2 Length | 27.000 cm |
| Package 2 Weight | 183.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 260 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.204 kg |
| Warranty (in months) | 18 |
