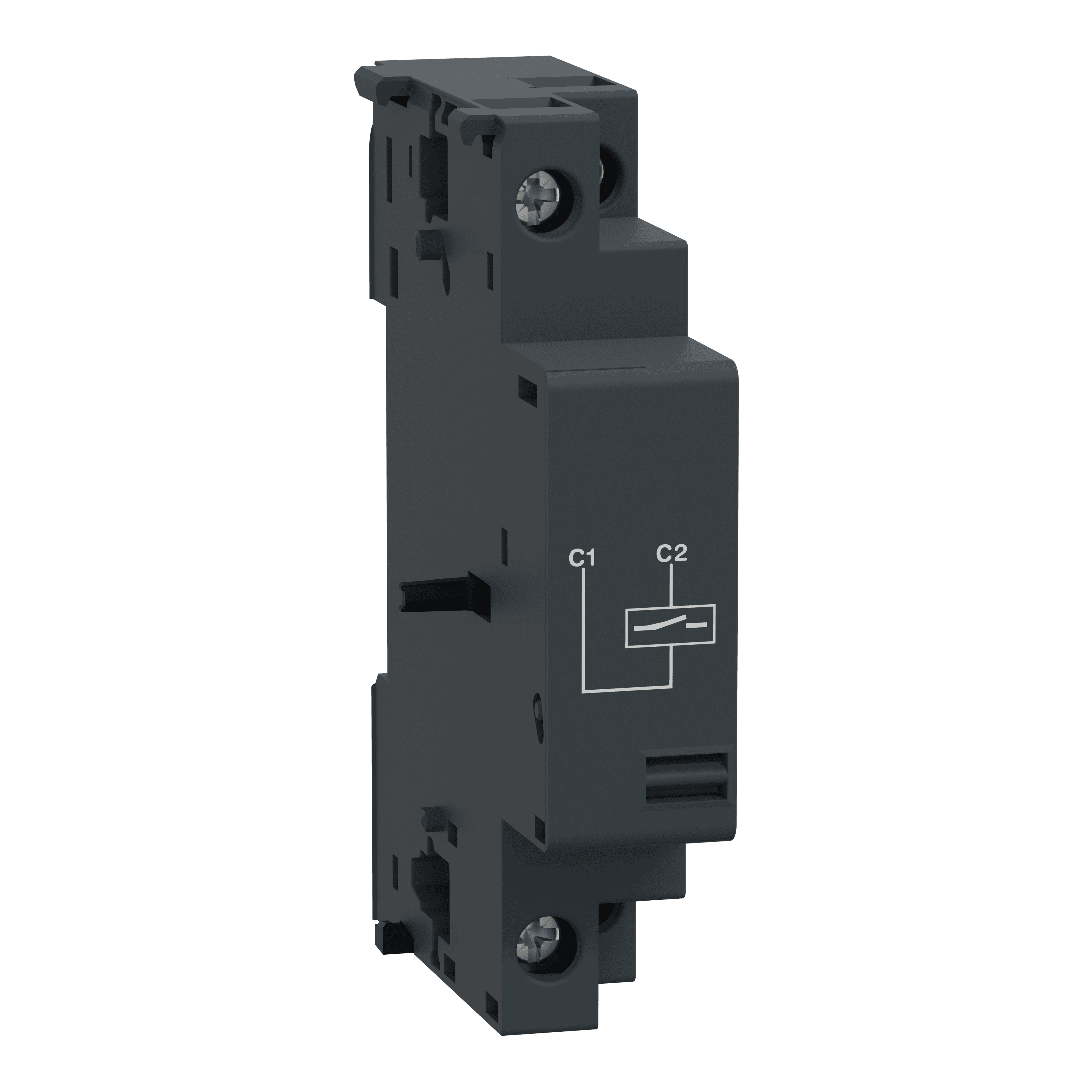

Name: Shunt release (MX),TeSys Deca frame 2,220-240V AC 60Hz
Brand: Schneider Electric
SKU: GVAS226
Price: 529 SAR
Availability: InStock

Shunt release (MX),TeSys Deca frame 2,220-240V AC 60Hz

SKUGVAS226

240 V

529

Excl. VAT · +15% added at checkout · Bulk pricing from 10+ units

In stock· ships in 2–3 days

Availability

Delivered nationwideOr collect from our branch

Choose delivery or store pickup at checkout.

Min order 1 · sold individually · pack of 1

100% genuine

5-day delivery

7-day returns · 14-day exchange

Secure payment

Schneider Electric TeSys · TeSys Deca shunt trip release. Shunt release (MX),TeSys Deca frame 2,220-240V AC 60Hz.

Shunt release (MX),TeSys Deca frame 2,220-240V AC 60Hz. Genuine Schneider Electric product supplied by United Force.

Technical specifications

Range	TeSys · TeSys Deca
Product or component type	Shunt trip release
Device short name	GVAS
[Uc] control circuit voltage	220...240 V AC 60 Hz
Range compatibility	TeSys GV2ME · TeSys GV2LE · TeSys GV2L · TeSys GV2P · TeSys GV3L · TeSys GV3P · TeSys Deca
Control circuit voltage limits	0.7...1.1 Un
[Ui] rated insulation voltage	690 V AC conforming to IEC 60947-1 · 600 V AC conforming to UL 60947-4-1 · 600 V AC conforming to CSA C22.2 No 60947-4-1
Threshold tripping voltage	0.75...0.2 Un
Inrush power in VA	14 VA AC
Inrush power in W	10.5 W
Hold-in power consumption in VA	5 VA AC
Hold-in power consumption in W	1.6 W
Operating time	10...15 ms conforming to IEC 60947-1
On-load factor	100 %
Connections - terminals	Screw clamp terminals 1 cable(s) 1…2.5 mm²solid · Screw clamp terminals 2 cable(s) 1…2.5 mm²solid · Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end · Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end · Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end · Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end
Tightening torque	< 1.4 N.m on screw clamp terminals
Mechanical durability	10000 cycles with GV3P and GV3L · 30000 cycles with GV2ME and GV2P
Quantity per set	Set of 10
Height	89 mm
Width	18 mm
Depth	66 mm
Product weight	0.105 kg
Colour	Dark grey
Unit Type of Package 2	S02
Number of Units in Package 2	42
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.830 kg
Warranty (in months)	18

Shunt release (MX),TeSys Deca frame 2,220-240V AC 60Hz. Genuine Schneider Electric product supplied by United Force.

Technical specifications

Range	TeSys · TeSys Deca
Product or component type	Shunt trip release
Device short name	GVAS
[Uc] control circuit voltage	220...240 V AC 60 Hz
Range compatibility	TeSys GV2ME · TeSys GV2LE · TeSys GV2L · TeSys GV2P · TeSys GV3L · TeSys GV3P · TeSys Deca
Control circuit voltage limits	0.7...1.1 Un
[Ui] rated insulation voltage	690 V AC conforming to IEC 60947-1 · 600 V AC conforming to UL 60947-4-1 · 600 V AC conforming to CSA C22.2 No 60947-4-1
Threshold tripping voltage	0.75...0.2 Un
Inrush power in VA	14 VA AC
Inrush power in W	10.5 W
Hold-in power consumption in VA	5 VA AC
Hold-in power consumption in W	1.6 W
Operating time	10...15 ms conforming to IEC 60947-1
On-load factor	100 %
Connections - terminals	Screw clamp terminals 1 cable(s) 1…2.5 mm²solid · Screw clamp terminals 2 cable(s) 1…2.5 mm²solid · Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end · Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end · Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end · Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end
Tightening torque	< 1.4 N.m on screw clamp terminals
Mechanical durability	10000 cycles with GV3P and GV3L · 30000 cycles with GV2ME and GV2P
Quantity per set	Set of 10
Height	89 mm
Width	18 mm
Depth	66 mm
Product weight	0.105 kg
Colour	Dark grey
Unit Type of Package 2	S02
Number of Units in Package 2	42
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	4.830 kg
Warranty (in months)	18
