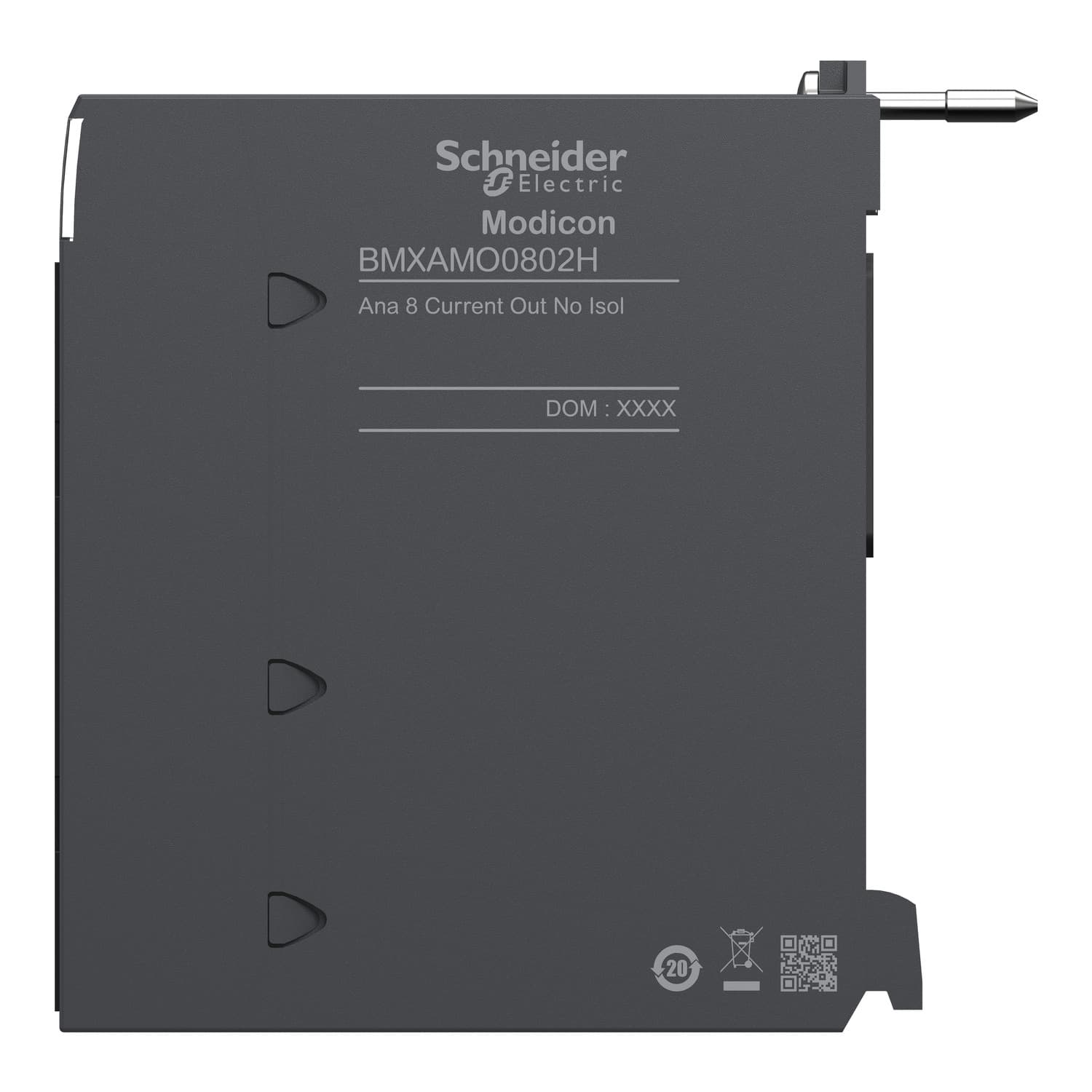

Schneider Electric analog output module. Analog high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA, for severe environments.
Analog high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA, for severe environments. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Analog output module |
| Product specific application | For severe environments |
| Electrical connection | 20 ways 1 connector |
| Isolation between channels | Non isolated |
| Measurement error | <= 0.45 % of full scale - 25...70 °C · 0.1 % of full scale 25 °C |
| Temperature drift | 45 ppm/°C 0...20 mA · 45 ppm/°C 4...20 mA |
| Minimum crosstalk attenuation | 80 dB |
| Common mode rejection | 80 dB |
| Isolation voltage | 1400 V DC between channels and ground · 1400 V DC between channels and bus |
| Detection type | Open circuit 4...20 mA · Short circuit 0...20 mA |
| Load impedance ohmic | <= 350 Ohm 0...20 mA · <= 350 Ohm 4...20 mA |
| Analogue output number | 8 |
| Analogue output type | Current: 0...20 mA · Current: 4...20 mA |
| Analogue output resolution | 16 bits |
| Supply | Internal power supply via rack |
| Conversion time | <= 4 ms |
| Maximum conversion value | 0...21 mA 0...20 mA · 0...21 mA 4...20 mA |
| Fallback mode | Configurable · Predefined |
| MTBF reliability | 1500000 H |
| Operating altitude | 0...2000 m · 2000...5000 m with derating factor |
| Status LED | 1 LED (green) RUN · 1 LED per channel (green) channel diagnostic · 1 LED (red) ERR · 1 LED (red) I/O |
| Product weight | 0.15 kg |
| Power consumption in W | 3.6 W 24 V DC typical · 3.9 W 24 V DC maximum · 0.35 W 3.3 V DC typical · 0.48 W 3.3 V DC maximum |
| Current consumption | 150 mA at 3.3 V DC · 135 mA at 24 V DC |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Product certifications | Merchant Navy · ATEX · CE · CSA · EAC · RCM · IEC-Ex · UL |
| Standards | IEC 61131-2 · IEC 61000-6-4 · IEC 61000-6-2 · EN 61010-2-201 |
| Environmental characteristic | Gas resistant class Gx · Gas resistant class 3C4 · Dust resistant class 3S4 · Sand resistant class 3S4 · Salt resistant level 2 · Mold growth resistant class 3B2 · Fungal spore resistant class 3B2 · Hazardous location class I division 2 |
| Protective treatment | Conformal coating |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.050 kg |
| Warranty (in months) | 18 |
