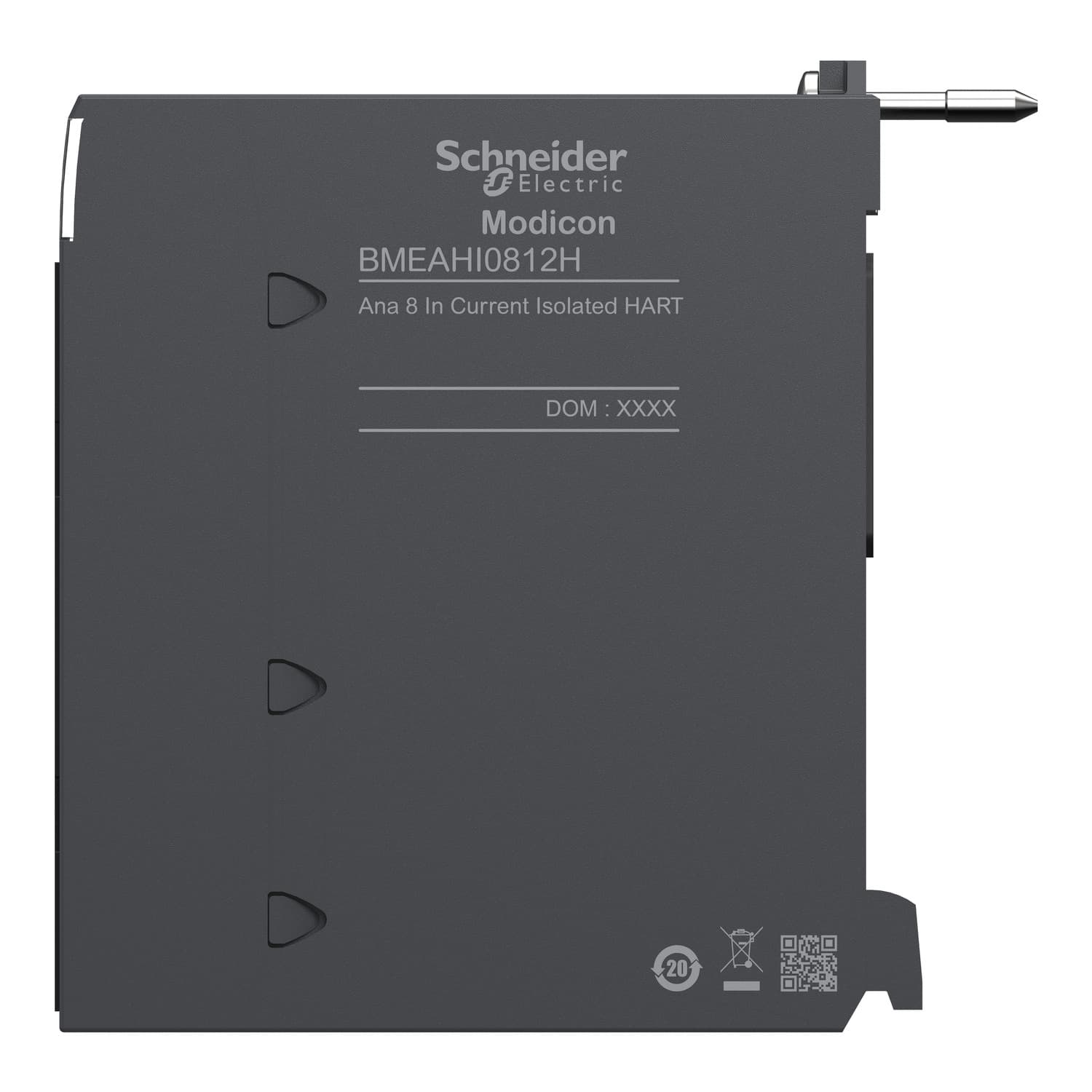

Schneider Electric analog input module. analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA, for severe environments.
analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA, for severe environments. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Analog input module |
| Application specific I/O | HART |
| Product compatibility | BMEP58... processor · BMXFTB20... terminal block · ABE7CPA31 · ABE7CPA02 · ABE7CPA03 · Head module BMECRA31210 · BMEXBP... backplane |
| Electrical connection | 20 ways terminal block · Telefast |
| Isolation between channels | Isolated |
| Analogue input number | 8 |
| Analogue input type | Current 4...20 mA |
| Analogue input resolution | 15 bits + sign |
| Input impedance | 250 Ohm internally protective resistor (3.6 to 50 Ohm) |
| Measurement error | 0.15 % of full scale 25 °C · 0.55 % of full scale - 25...70 °C |
| Temperature drift | 50 ppm/°C |
| Isolation voltage | 1000 V DC for 60 s between channels · 1400 V DC for 60 s between channels and ground · 1400 V DC for 60 s between channels and bus |
| Checks | Broken wire detection |
| Topology | Point-to-point |
| Function available | I/O mapping |
| Product weight | 0.233 kg |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m · 2000...5000 m with derating factor |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility · 2014/34/EU - ATEX directive |
| Product certifications | CE · UL · CSA · RCM · EAC · Merchant Navy · ATEX zone 2/22 · IECEx zone 2/22 |
| Standards | IEC 61131-2 · IEC 61010-2-201 · UL 61010-2-201 · CSA C22.2 No 61010-2-201 · IACS E10 · IEC 61000-6-5, interface type 1 and type 2 · IEC 61850-3, location G · IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04 · Gas resistant class 3C4 conforming to IEC 60721-3-3 · Dust resistant class 3S4 conforming to IEC 60721-3-3 · Sand resistant class 3S4 conforming to IEC 60721-3-3 · Salt resistant level 2 conforming to IEC 68252 · Mold growth resistant class 3B2 conforming to IEC 60721-3-3 · Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 · Hazardous location class I division 2 |
| Protective treatment | Conformal coating |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.870 kg |
| Warranty (in months) | 18 |
