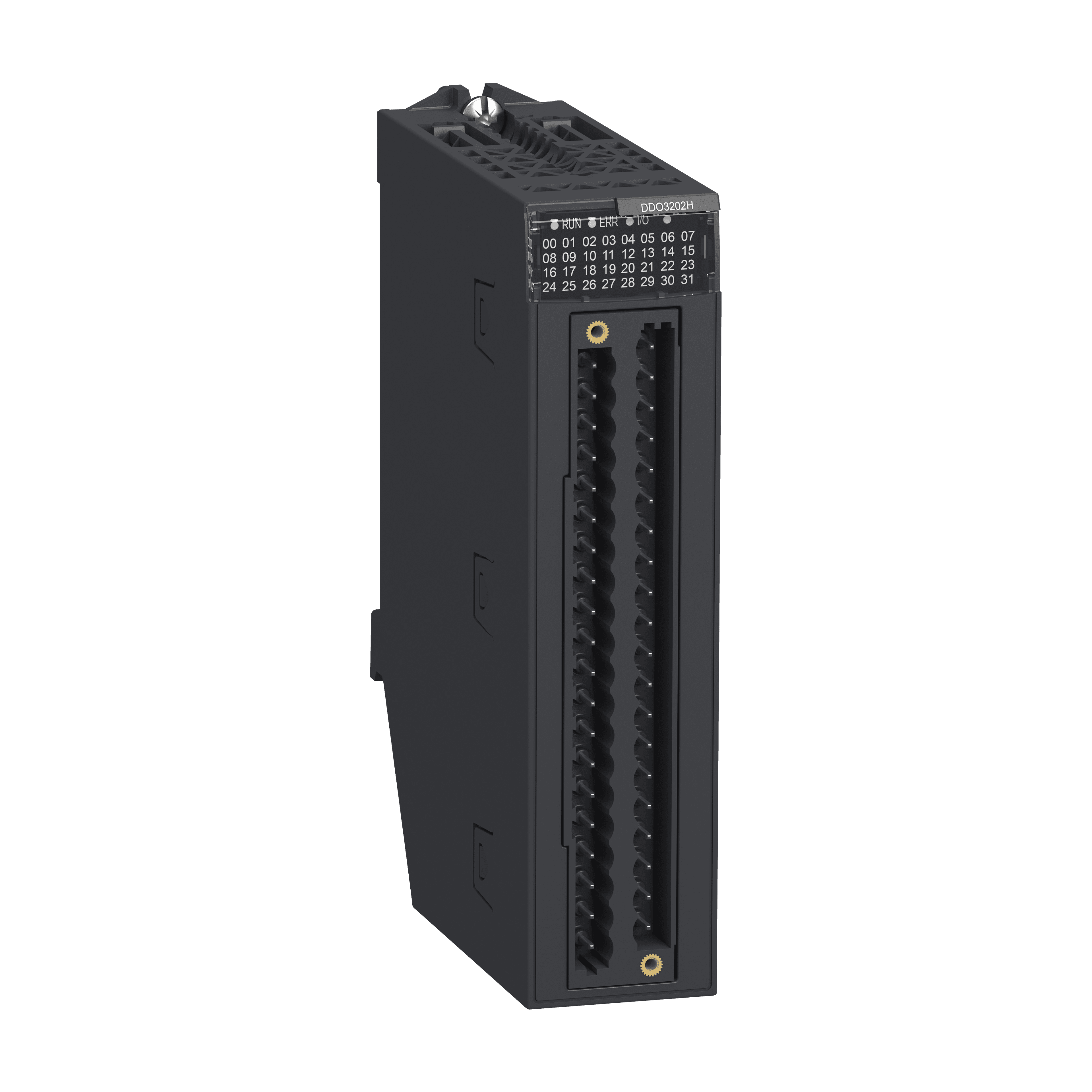

Schneider Electric discrete output module. Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC, for severe environments.
Discrete output module, Modicon X80, 32 transistor outputs, 12/24V DC, for severe environments. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Discrete output module |
| Discrete output logic | Positive |
| Response time on output | 0.3 ms |
| Maximum voltage drop | <1.2 V at state 1 |
| Insulation resistance | > 10 MOhm 500 V DC |
| Current per channel | 0.55 A |
| Maximum current per module | 17.6 A |
| Paralleling of outputs | Yes : 3 maximum |
| Switching frequency | 0.5/LI² Hz |
| Load impedance ohmic | > 54.54 Ohm |
| Reverse polarity protection | Reverse mounted diode |
| MTBF reliability | 833000 H |
| Protection type | External fuse reverse polarity protection · short-circuit protection · overload protection · overvoltage protection |
| Voltage detection threshold | 18 V DC preactuator at state 0 |
| Product weight | 143.92 g |
| IP degree of protection | IP20 |
| Protective treatment | Conformal coating |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1780 V AC at 50/60 Hz 1 minute, output/ground · 1 minute, output/internal logic |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Environmental characteristic | Gas resistant class Gx · Gas resistant class 3C4 · Dust resistant class 3S4 · Sand resistant class 3S4 · Salt resistant level 2 · Mold growth resistant class 3B2 · Fungal spore resistant class 3B2 |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.869 kg |
| Warranty (in months) | 18 |
