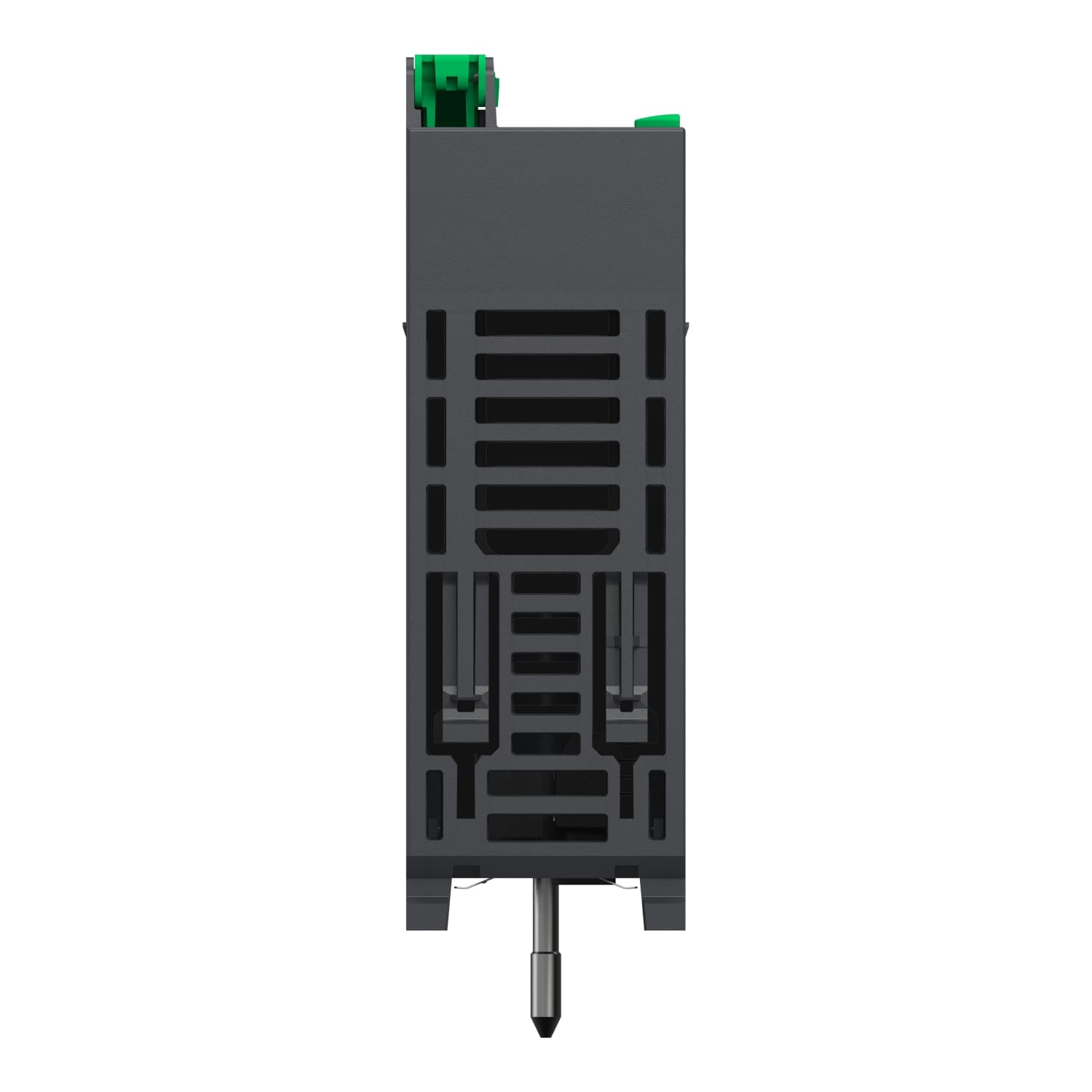

Schneider Electric ethernet tcp/ip network module. network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card, for severe environments.
network module, Modicon M340, Modbus/TCP, 1 x RJ45, flash memory card, for severe environments. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon M340 automation platform |
|---|---|
| Product or component type | Ethernet TCP/IP network module |
| Product specific application | For severe environments |
| Concept | Transparent Ready |
| Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class B30 |
| Protective treatment | Conformal coating |
| Communication service | Bandwidth management · Data Editor (via PC terminal) · FDR server · Rack Viewer · SNMP network administrator · Global Data · I/O scanning · Modbus TCP messaging · Web server configurable |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory description | Supplied Flash memory card (BMXRWSC016M) |
| Memory usage | Application saving · Activating the standard web server |
| Supply | Internal power supply via rack |
| Marking | CE |
| Local signalling | 1 LED (green) for activity on Ethernet network (ETH ACT) · 1 LED (green) for processor running (RUN) · 1 LED (green) for status of Ethernet network (ETH STS) · 1 LED (red) for data rate (ETH 100) · 1 LED (red) for memory card fault (CARD ERR) · 1 LED (red) for processor or system fault (ERR) |
| Control type | RESET push-button cold restart |
| Current consumption | 90 mA at 24 V DC |
| Module format | Standard |
| Product weight | 0.2 kg |
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility · 2014/34/EU - ATEX directive |
| Product certifications | CE · UL · CSA · RCM · EAC · Merchant Navy · ATEX zone 2/22 · IECEx zone 2/22 |
| Standards | IEC 61131-2 · IEC 61010-2-201 · UL 61010-2-201 · CSA C22.2 No 61010-2-201 · IACS E10 · IEC 61000-6-5, interface type 1 and type 2 · IEC 61850-3, location G · IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04 · Gas resistant class 3C4 conforming to IEC 60721-3-3 · Dust resistant class 3S4 conforming to IEC 60721-3-3 · Sand resistant class 3S4 conforming to IEC 60721-3-3 · Salt resistant level 2 conforming to IEC 68252 · Mold growth resistant class 3B2 conforming to IEC 60721-3-3 · Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 · Hazardous location class I division 2 |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.705 kg |
| Warranty (in months) | 18 |
