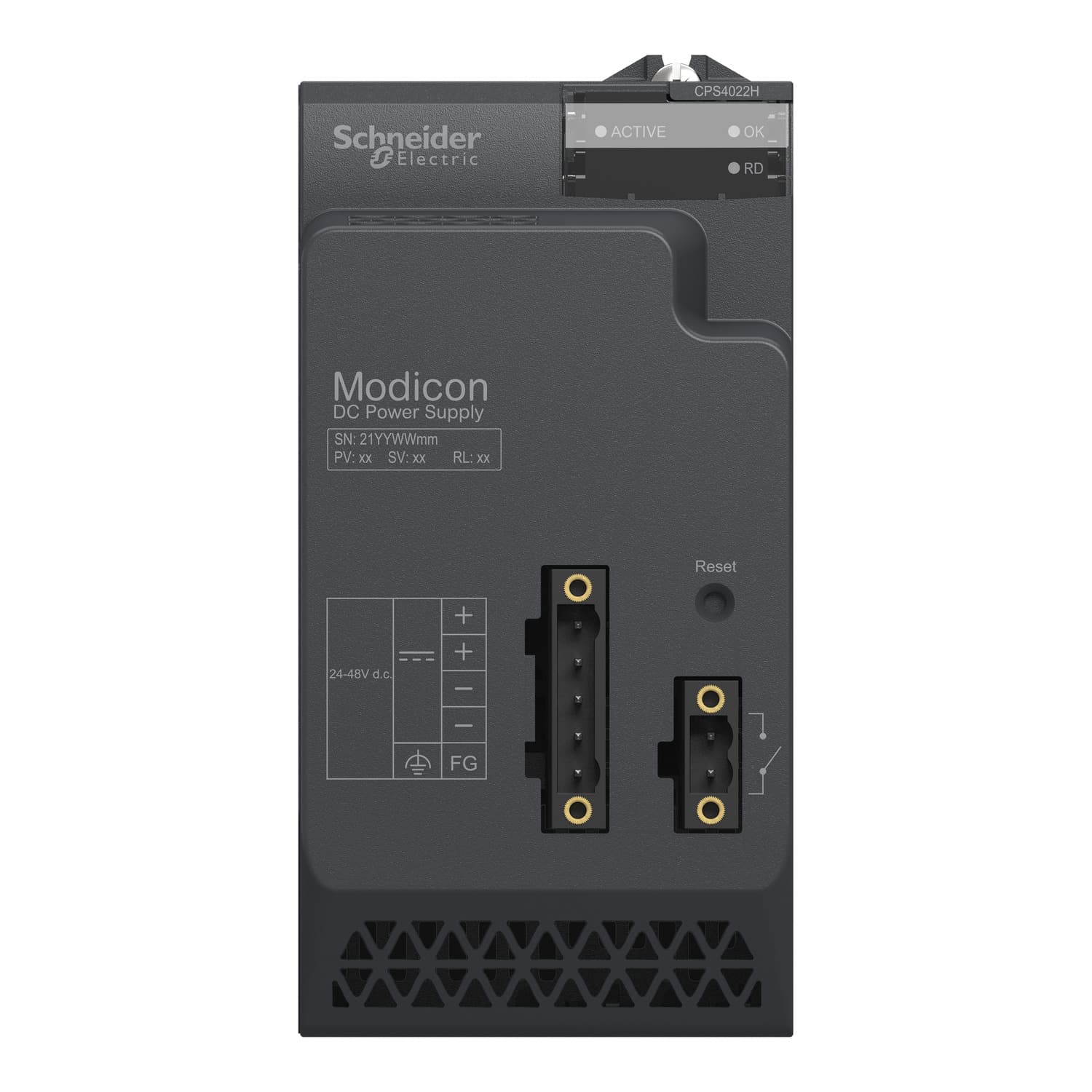

Schneider Electric power supply module. redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment.
redundant power supply module, Modicon X80, 24 to 48V DC, for severe environment. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Power supply module |
| backplane compatibility | All backplane |
| Product specific application | For severe environments |
| advanced diagnostics available via network | Temperature sensing · Uptime duration · Redundancy test · Remaining lifetime · Redundancy information |
| Primary voltage | 24...48 V |
| Supply circuit type | DC |
| Secondary power | 18 W 3.3 V DC at -25…70 °C I/O module logic power supply · 40 W 24 V DC at -25…70 °C I/O module power supply and processor if 3.3 V not loaded |
| Primary voltage limit | 18...62.4 V |
| Input current | 1.9 A 24 V · 1 A 48 V |
| Inrush current | 60 A 48 V · 60 A 24 V |
| I²t on activation | 1 A².s 24 V · 3 A².s 48 V |
| It on activation | 0.3 A.s 24 V · 0.4 A.s 48 V |
| MTBF reliability | 752000 H |
| Protection type | Internal fuse not accessible for primary circuit · Overload protection for secondary circuit · Overvoltage protection for secondary circuit · Short-circuit protection for secondary circuit |
| Current at secondary voltage | 5.5 A 3.3 V DC I/O module logic power supply · 1.67 A 24 V DC I/O module power supply and processor |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green) presence of voltages (OK) · 1 LED (green) redundancy OK · 1 LED (green) power supply status |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay · 1 connector 5 pin(s)line supply, protective earth |
| Maximum cable distance between devices | 10 m · 15 m |
| Insulation resistance | >= 100 MOhm primary/ground · >= 100 MOhm primary/secondary |
| Product weight | 0.81 kg |
| Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/ground · 1500 V primary/secondary |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility · 2014/34/EU - ATEX directive |
| Product certifications | CE · UL · CSA · RCM · EAC · Merchant Navy · ATEX zone 2/22 · IECEx zone 2/22 |
| Standards | IEC 61131-2 · IEC 61010-2-201 · UL 61010-2-201 · CSA C22.2 No 61010-2-201 · IACS E10 · EN/IEC 61000-6-5, interface type 1 and type 2 · EN/IEC 61850-3, location G · IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04 · Gas resistant class 3C4 conforming to IEC 60721-3-3 · Dust resistant class 3S4 conforming to IEC 60721-3-3 · Sand resistant class 3S4 conforming to IEC 60721-3-3 · Salt resistant level 2 conforming to IEC 68252 · Mold growth resistant class 3B2 conforming to IEC 60721-3-3 · Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 · Hazardous location class I division 2 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -25…70 °C |
| Relative humidity | 10…95 % without condensation |
| Protective treatment | Conformal coating |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.712 kg |
| Warranty (in months) | 18 |
