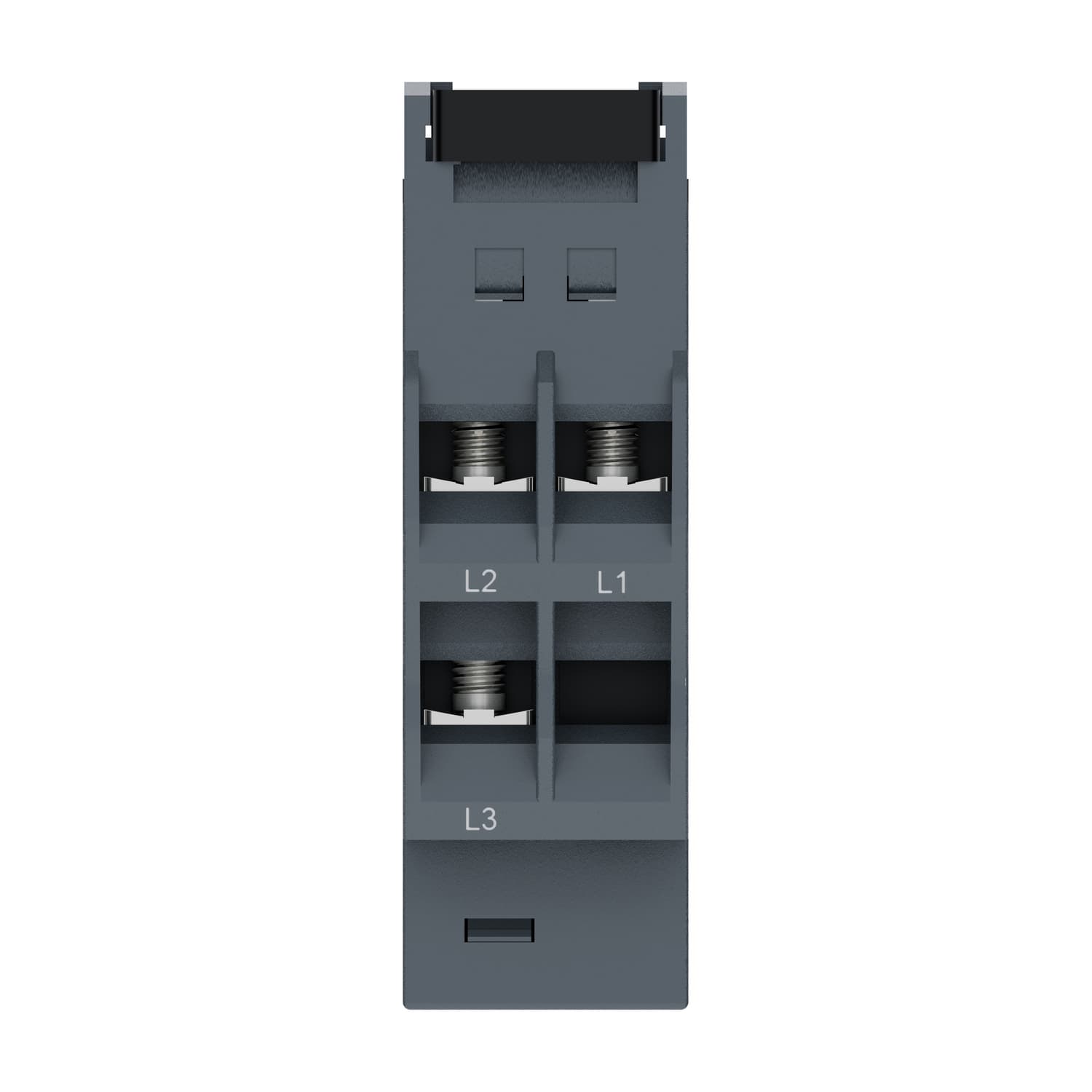

Schneider Electric 3-phase control relay. Harmony 3 phase voltage monitoring relay, Range 208 to 480 VAC, phase sequence, phase failure, 1 CO.
Brand
Schneider Electric
IP rating
IP20
Weight
0.075 kg
Complete product informationProduct description and supplied technical information
Harmony 3 phase voltage monitoring relay, Range 208 to 480 VAC, phase sequence, phase failure, 1 CO. Genuine Schneider Electric product supplied by United Force.
Technical specifications
Range of product
Harmony Control Relays
Relay type
Control relay
Relay name
RM10TG
Product or component type
3-phase control relay
Relay monitored parameters
Phase sequence · Phase failure detection
Product specific application
For 3-phase supply
Supply voltage limits
183…528 V AC, 3 phases
Supply frequency
47...63 Hz
Power consumption in VA
0…4.5 VA
Measurement range
208...480 V AC
Voltage detection threshold
< 138 V AC
Time delay type
Without
Reset time
1.5 s time delay
Response time
< 200 ms (in the event of a fault)
Power on Delay
1.5 s
Output contacts
1 C/O
nominal output current
5 A
Switching capacity in VA
1250 VA
Electrical durability
100000 cycles
Mechanical durability
10000000 cycles
Electromagnetic compatibility
conforming to IEC 61000-6-4 · conforming to IEC 61000-6-3 · conforming to IEC 61000-6-2
Standards
IEC 60255-1
Product certifications
cULus · CE · UKCA · CCC
Marking
CULus · CE · UKCA · CCC
Directives
89/336/EEC - electromagnetic compatibility · 73/23/EEC - low voltage directive
Ambient air temperature for storage
-20…80 °C
Ambient air temperature for operation
-15…60 °C
Relative humidity
10…95 %
Shock resistance
30 gn for 6 ms
IP degree of protection
IP20 (terminals) · IP40 (casing)
Pollution degree
2
Overvoltage category
II
Dielectric test voltage
1.89 kV, 1 min AC 50 Hz
Insulation resistance
> 100 MOhm at 500 V DC
[Ui] rated insulation voltage
400 V
Connections - terminals
Screw terminals, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid with or without cable end
Tightening torque
0.5…0.7 N.m
Housing material
Polycarbonate
Local signalling
LED (green) for ST (status)
Mounting support
35 mm symmetrical DIN rail conforming to IEC 60715
