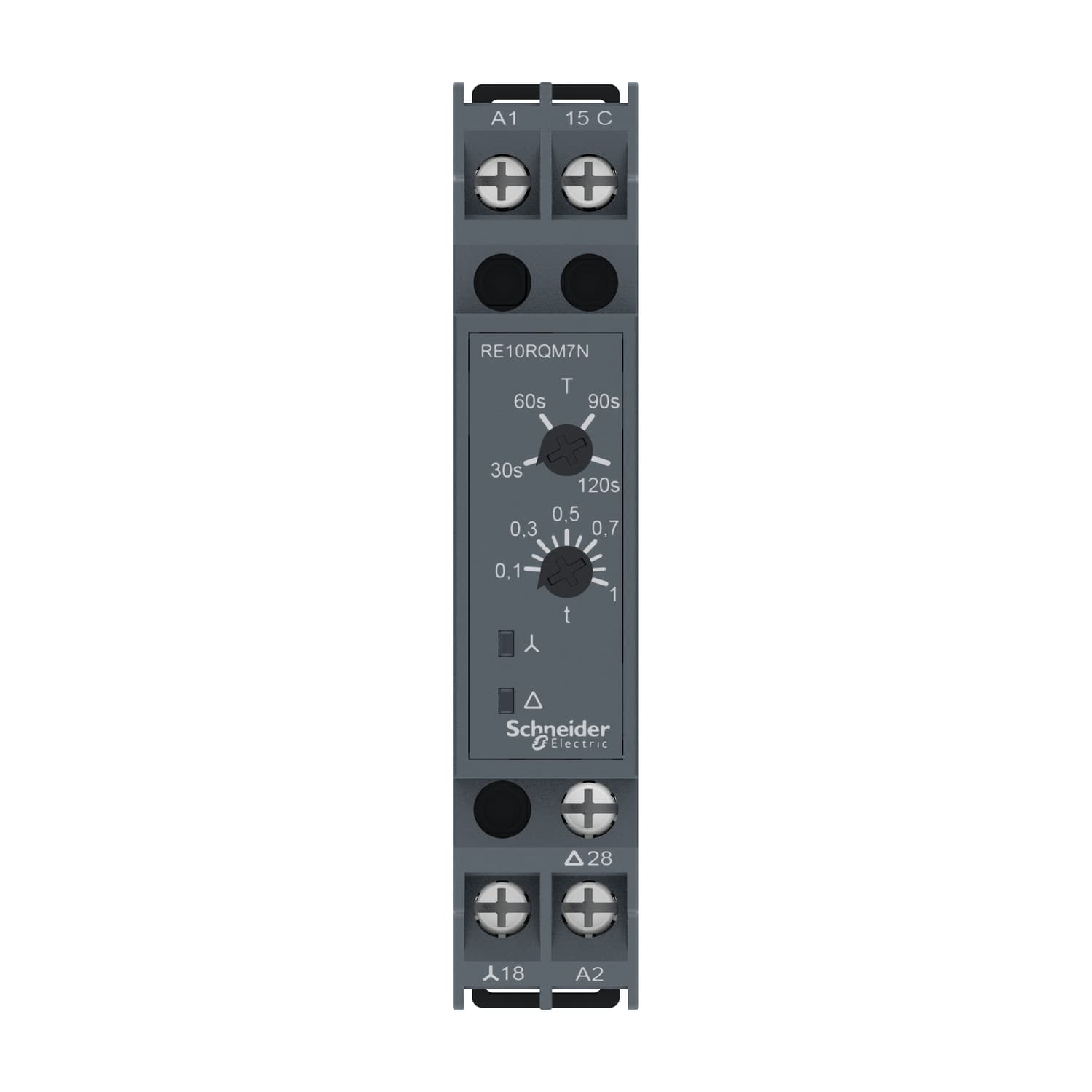

Schneider Electric modular timing relay, rated 5 A. Harmony timer relay, star-delta function, 220…240V AC, 1NO + 1NO.
Harmony timer relay, star-delta function, 220…240V AC, 1NO + 1NO. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony Timer Relays |
|---|---|
| Discrete output type | Relay |
| Product or component type | Modular timing relay |
| Time delay type | Q |
| Time delay range | 2...120 s |
| [Us] rated supply voltage | 240 V AC 50/60 Hz |
| nominal output current | 5 A |
| Contacts type and composition | 1 NO + 1 NO |
| Width pitch dimension | 17.5 mm |
| Control type | Selector switch front panel |
| [Ie] rated operational current | 5 A 250 V AC-1 conforming to IEC 60947-5-1 · 5 A 28 V DC-1 conforming to IEC 60947-5-1 · 1.5 A 240 V AC-15 conforming to IEC 60947-5-1 · 2 A 24 V DC-13 conforming to IEC 60947-5-1 |
| Voltage range | 0.8...1.1 Un |
| Connections - terminals | Screw connectors, 2 x 0.5...2 x 1.5 mm² (22 AWG...16 AWG) solid with or without cable end |
| Housing material | Polycarbonate |
| Repeat accuracy | +/- 0.5 % |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C |
| Reset time | 100 ms on de-energisation |
| Power consumption in VA | 8 VA at 240 V |
| Electrical durability | 100000 cycles at 5 A, 250 V for resistive load |
| Mechanical durability | 5000000 cycles |
| [Uimp] rated impulse withstand voltage | 5 kV for 1.2…50 µs |
| Marking | CULus · CE · CCC · UKCA |
| Mounting support | 35 mm symmetrical mounting rail |
| Local signalling | LED indicator red, steady for ST (status) |
| Product weight | 75 g |
| Compatibility code | RE10 |
| Height | 58.5 mm |
| Width | 18 mm |
| Depth | 90 mm |
| Function available | Q-Star-delta relay (2 NO outputs with same common)-1 NO + 1 NO |
| Number of functions | 1 |
| Dielectric strength | 2.5 kV for 1 mA/1 minute at 50 Hz |
| Standards | IEC 61812-1 |
| Product certifications | cULus · CE · CCC · UKCA |
| Ambient air temperature for storage | -20…60 °C |
| Ambient air temperature for operation | -10…55 °C |
| IP degree of protection | IP20 terminals: · IP40 casing: |
| Vibration resistance | 0.15 mm (f= 10…150 Hz) |
| Relative humidity | 10…95 % without condensation |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 · Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 · Fast transients immunity test - test level: 2 kV level 3 conforming to IEC 61000-4-4 |
