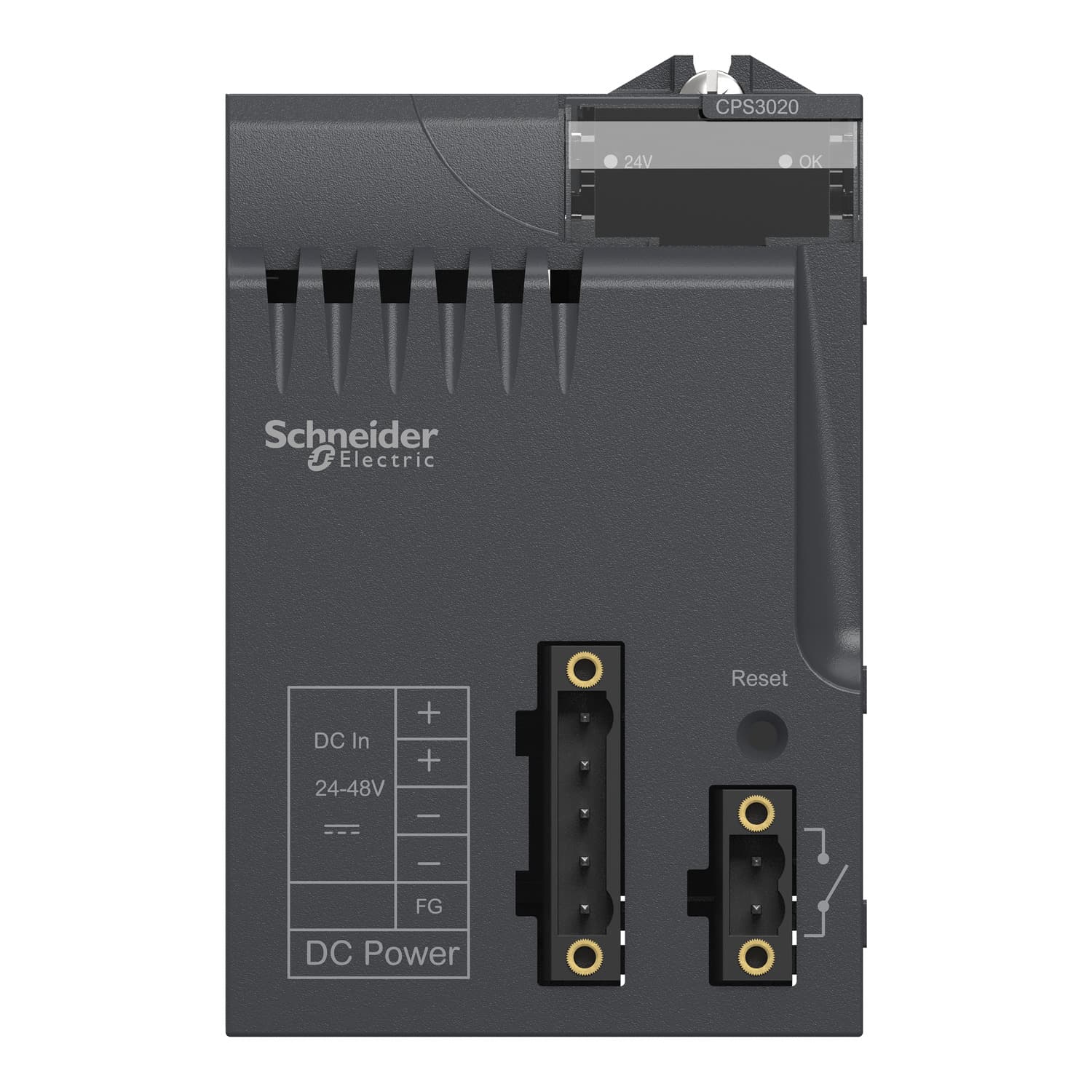

Schneider Electric power supply module. power supply module, Modicon X80, 24 to 48V DC, 31.2W.
power supply module, Modicon X80, 24 to 48V DC, 31.2W. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Power supply module |
| backplane compatibility | Not compatible with BMEXBP..02 |
| Primary voltage | 24...48 V isolated |
| Supply circuit type | DC |
| Secondary power | 15 W 3.3 V DC I/O module logic power supply · 31.2 W 24 V DC I/O module power supply and processor |
| Primary voltage limit | 18...62.4 V |
| Input current | 0.83 A 48 V · 1.65 A 24 V |
| Inrush current | 30 A 24 V · 60 A 48 V |
| I²t on activation | 1 A².s 24 V · 3 A².s 48 V |
| It on activation | 0.2 A.s 24 V · 0.3 A.s 48 V |
| MTBF reliability | 4600000 H |
| Protection type | Internal fuse not accessible for primary circuit · Overload protection for secondary circuit, 24 V sensor power supply · Overvoltage protection for secondary circuit, 24 V sensor power supply · Short-circuit protection for secondary circuit, 24 V sensor power supply |
| Current at secondary voltage | 1.3 A 24 V DC I/O module power supply and processor · 4.5 A 3.3 V DC I/O module logic power supply |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green) rack voltage OK |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay · 1 connector 5 pin(s)line supply, protective earth |
| Maximum cable distance between devices | 10 m power supply cable copper 1.5 mm² · 15 m power supply cable copper 2.5 mm² |
| Insulation resistance | >= 10 MOhm primary/ground · >= 10 MOhm primary/secondary |
| Product weight | 0.34 kg |
| Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/ground · 1500 V primary/secondary |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | TC |
| Operating altitude | 0...2000 m · 2000...5000 m with derating factor |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 7.378 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 38.000 kg |
| Warranty (in months) | 18 |
