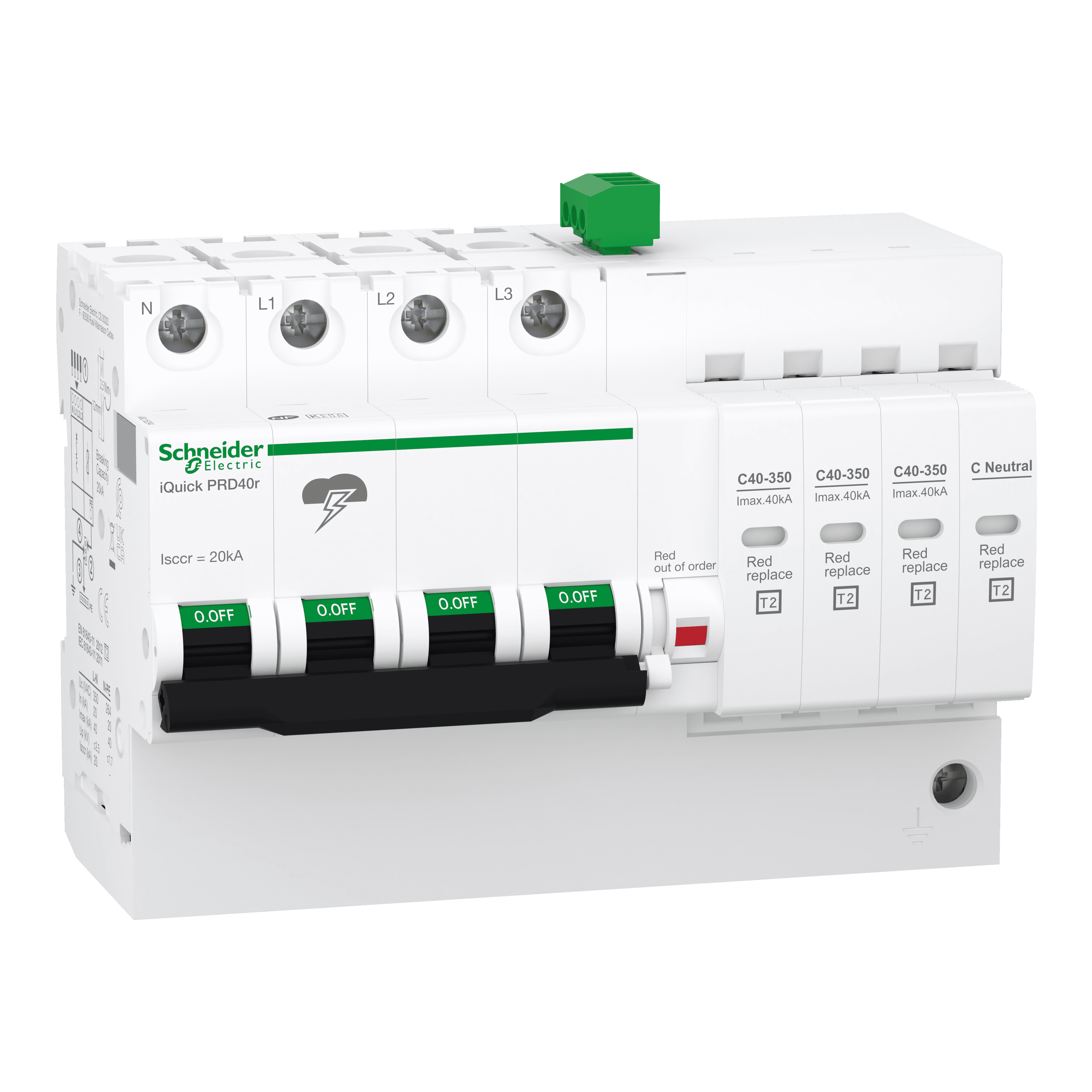

Schneider Electric Acti9 iQuick PRD surge arrester with pluggable cartridge. iQuick PRD40r modular surge arrester - 3 poles + N - 350V - with remote transfer.
iQuick PRD40r modular surge arrester - 3 poles + N - 350V - with remote transfer. Genuine Schneider Electric product supplied by United Force.
| Range of product | IQuick PRD |
|---|---|
| Product name | Acti9 iQuick PRD |
| Product or component type | Surge arrester with pluggable cartridge |
| Device short name | iQuick PRD40r |
| Device application | Distribution |
| Standards | EN 61643-11:2012 · IEC 61643-11:2011 |
| Product certifications | CE |
| Quality labels | KEMA-KEUR · NF |
| Poles description | 3P + N |
| Remote signalling | With |
| Signal contacts composition | 1 SD (1 C/O) |
| Surge arrester type | Electrical distribution network |
| Earthing system | TN-S · TT |
| Surge arrester class type | Type 2 |
| Surge arrester technology | MOV + GDT |
| [Ue] rated operational voltage | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| Nominal discharge current | Common mode: 20 kA (L/PE) · Common mode: 20 kA (N/PE) · Differential mode: 20 kA (L/N) |
| Maximum discharge current | Common mode: 40 kA L/PE · Common mode: 40 kA N/PE · Differential mode: 40 kA L/N |
| [Uc] maximum continuous operating voltage | Common mode: 264 V N/PE · Common mode: 350 V L/PE · Differential mode: 350 V L/N |
| Maximum [Up] voltage protection level | Common mode <1.5 kV type 2 L/PE · Common mode <1.5 kV type 2 N/PE · Differential mode <2.5 kV type 2 L/N |
| Disconnector device type | Integrated circuit breaker - Icu 20 kA |
| Signalling circuit voltage | 2 A/250 V AC 50/60 Hz |
| Mounting mode | Clip-on (DIN rail) |
| 9 mm pitches | 14.7 |
| Height | 94 mm |
| Width | 131.5 mm |
| Depth | 75.9 mm |
| Product weight | 0.86 kg |
| Colour | White (RAL 9003) |
| Connections - terminals | Tunnel type terminal (upside) 2.5…35 mm² · Tunnel type terminal (downside) 2.5…25 mm² |
| Tightening torque | 2.5 N.m |
| Compatibility code | IQuick PRD40r |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Relative humidity | 5…95 % |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 11.180 kg |
| Warranty (in months) | 18 |
