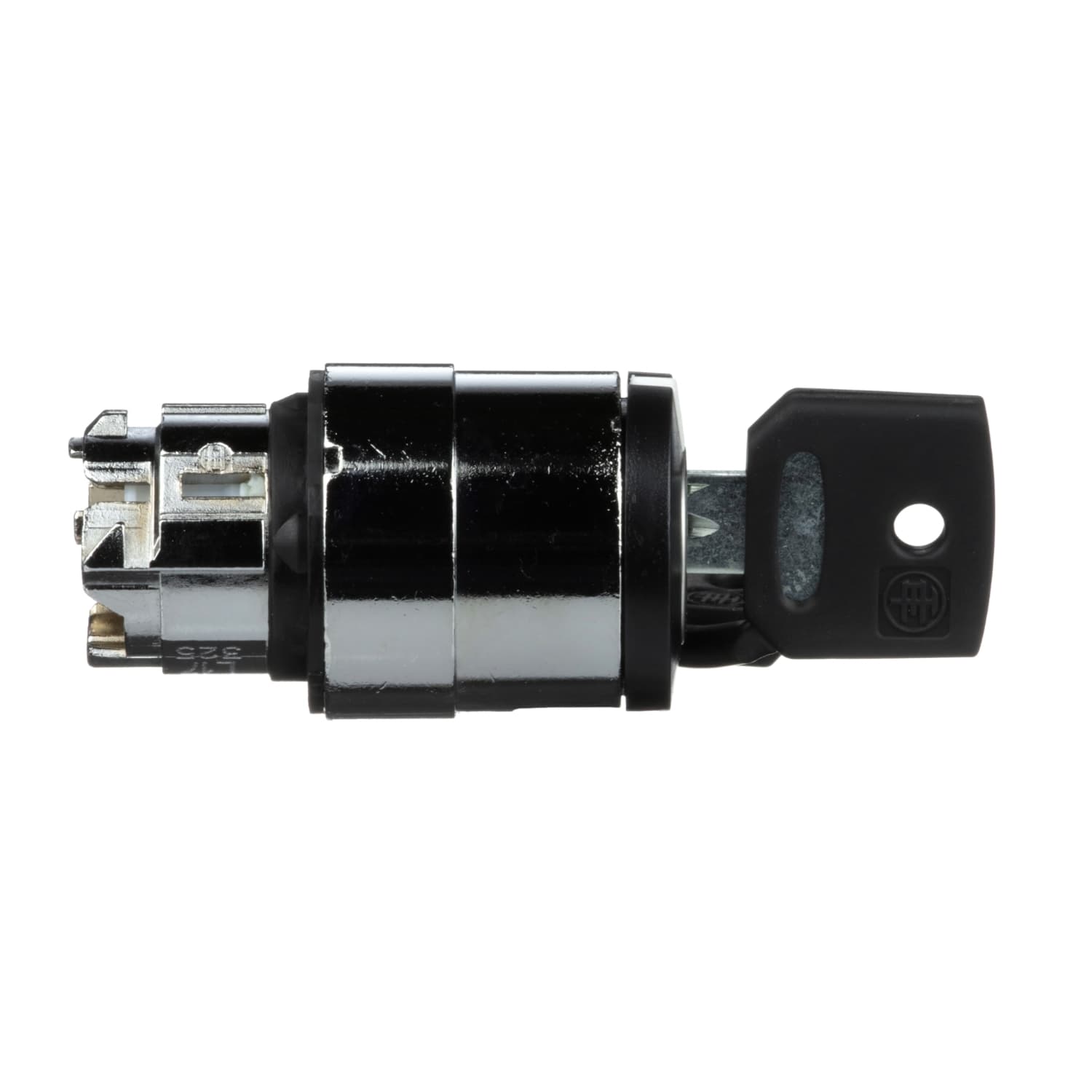

Schneider Electric head for key selector switch. Head for key selector switch, Harmony XB4, metal, black, 22mm, key 455, 2 positions,stay put.
Head for key selector switch, Harmony XB4, metal, black, 22mm, key 455, 2 positions,stay put. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony XB4 |
|---|---|
| Product or component type | Head for key selector switch |
| Device short name | ZB4 |
| Bezel material | Chromium plated metal |
| Mounting diameter | 22.5 mm |
| Head type | Standard |
| Sale per indivisible quantity | 1 |
| Shape of signaling unit head | Round |
| Operator profile | Black key switch |
| Operator position information | 2 positions 90° |
| Type of keylock | Key 455 |
| Key withdrawal position | Left |
| CAD overall width | 29 mm |
| CAD overall height | 29 mm |
| CAD overall depth | 72 mm |
| Product weight | 0.098 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Mechanical durability | 1000000 cycles |
| Electrical composition code | C3 for <6 contacts using single blocks in front mounting · C4 for <6 contacts using single and double blocks in front mounting · C5 for <5 contacts using single blocks in front mounting · C6 for <5 contacts using single and double blocks in front mounting · C7 for <4 contacts using single blocks in front mounting · C8 for <4 contacts using single and double blocks in front mounting · C11 for <3 contacts using single blocks in front mounting · C15 for <1 contacts using single blocks in front mounting |
| Device presentation | Basic element |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 · IP67 · IP69 · IP69K |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK06 with keyhole cover ZBGP conforming to IEC 50102 |
| Standards | EN/IEC 60947-1 · GB 14048.5 · EN/IEC 60947-5-5 · EN/IEC 60947-5-1 · EN/IEC 60947-5-4 · UL 508 · CSA C22.2 No 14 |
| Product certifications | CSA · DNV · BV · LROS (Lloyds register of shipping) · UL listed |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 · 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.990 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 800 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 99.004 kg |
| Warranty (in months) | 18 |
