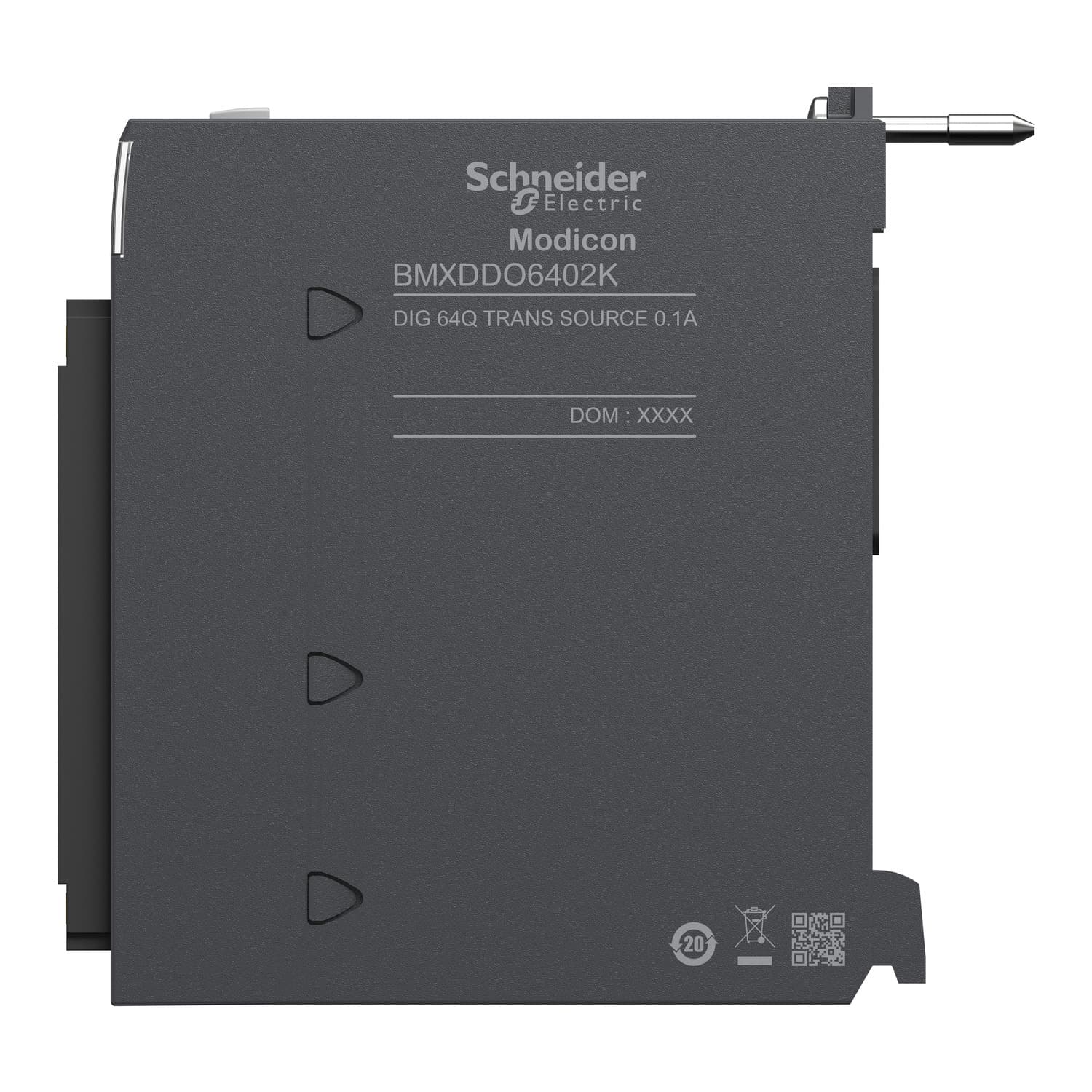

Schneider Electric discrete output module. discrete output module, Modicon X80, 64 transistor outputs, 24V DC positive.
discrete output module, Modicon X80, 64 transistor outputs, 24V DC positive. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Discrete output module |
| Discrete output logic | Positive |
| Response time on output | 1.2 ms |
| Insulation resistance | > 10 MOhm 500 V DC |
| Current per channel | 0.125 A |
| Maximum current per module | 6.4 A |
| Paralleling of outputs | Yes : 3 maximum |
| Switching frequency | 0.5/LI² Hz |
| Maximum overload time | 15 ms |
| Load impedance ohmic | >= 220 Ohm |
| Reverse polarity protection | Reverse mounted diode |
| MTBF reliability | 150000 H |
| Protection type | External fuse reverse polarity protection · short-circuit protection · overload protection · overvoltage protection |
| Voltage detection threshold | 18 V DC preactuator at state 0 |
| Product weight | 0.15 kg |
| IP degree of protection | IP20 |
| Protective treatment | Standard version |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility |
| Dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/ground · 1500 V AC at 50/60 Hz 1 minute, output/internal logic · 500 V DC 1 minute, between group of channels |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 3.030 kg |
| Warranty (in months) | 18 |
