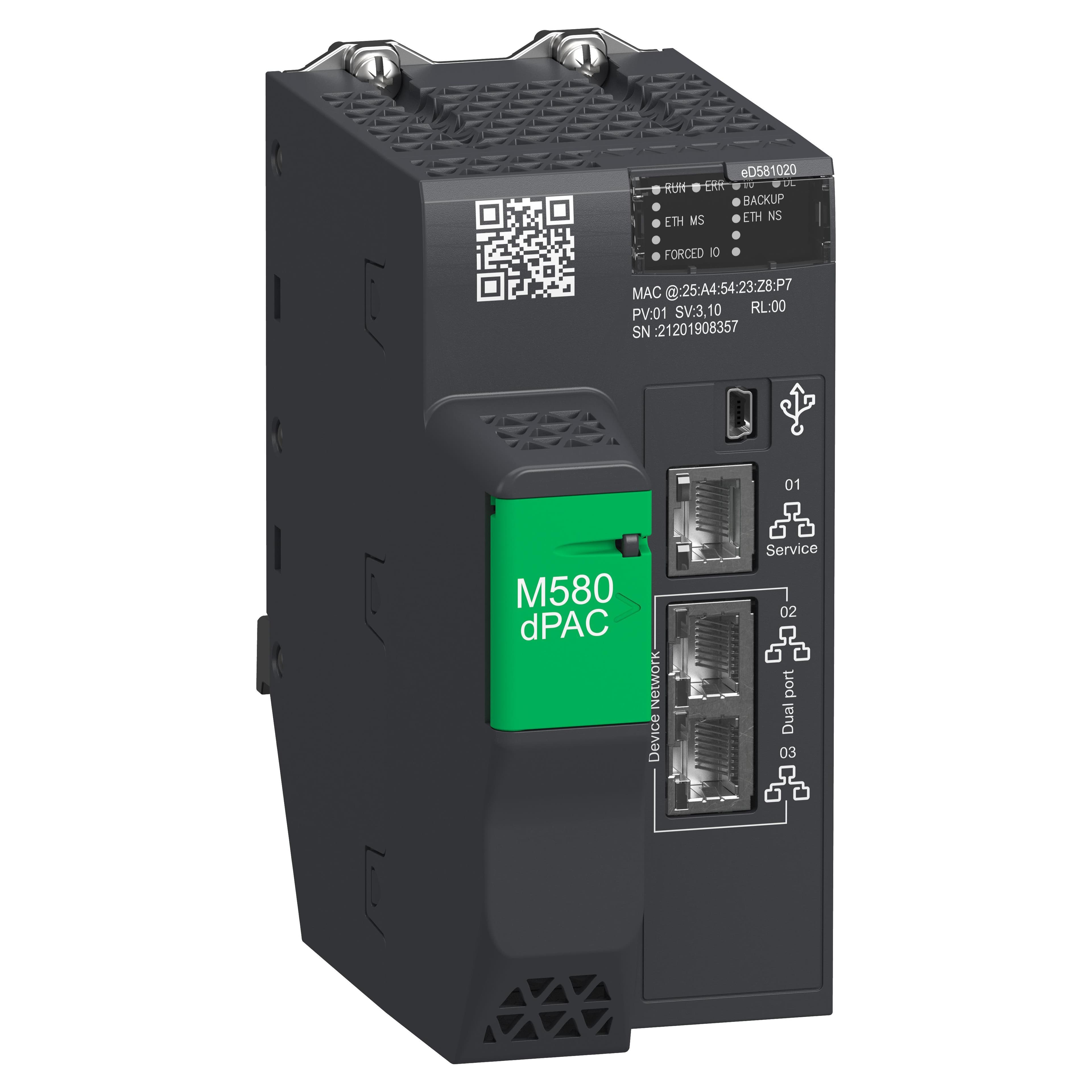

Schneider Electric processor module. dPAC controller, Modicon M580, conformal coated.
dPAC controller, Modicon M580, conformal coated. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon M580 |
|---|---|
| Product or component type | Processor module |
| Number of racks | 4 |
| Local I/O processor capacity (discrete) | 1024 I/O |
| Local I/O processor capacity (analog) | 256 I/O |
| Integrated connection type | 1 Ethernet TCP/IP for service port · 2 Ethernet TCP/IP for device network |
| Number of distributed equipment | 64 |
| Memory description | Integrated RAM, 64 MB for program and data |
| Current consumption | 295 mA at 24 V DC |
| MTBF reliability | 600000 H |
| Marking | CE |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m · 2000...5000 m with derating factor |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility · 2006/42/EC - machinery |
| Product certifications | CE · UL · CSA · EAC |
| Standards | IEC 61131-2 · IEC 61010-2-201 · UL 61010-2-201 · IACS E10 |
| Environmental characteristic | Hazardous location class I division 2 |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN) · 1 LED (red) processor or system fault (ERR) · 1 LED (red) I/O module fault (I/O) · 1 LED (green) download in progress (DL) · 1 LED (red) I/O values overrided by user (FORCED IO) · 1 LED (green/red) ETH MS (Ethernet port configuration status) · 1 LED (green/red) Eth NS (Ethernet network status) |
| Product weight | 0.849 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 5.84 kg |
| Warranty (in months) | 18 |
