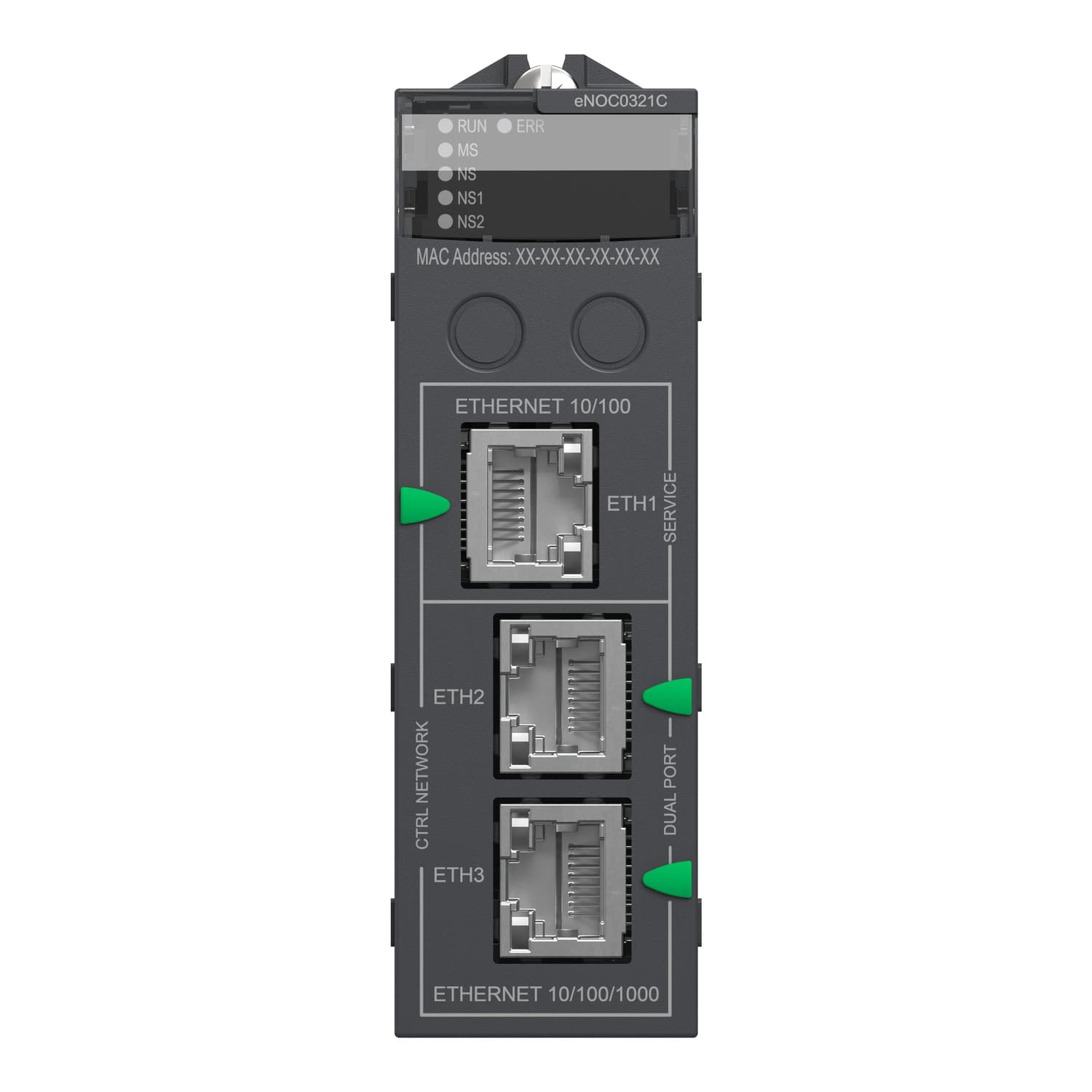

Schneider Electric communication module. control router, Modicon M580, Ethernet, conformal coating.
control router, Modicon M580, Ethernet, conformal coating. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon M580 |
|---|---|
| Product or component type | Communication module |
| Product compatibility | BMEXBP... - Ethernet + X-bus rack |
| Supply | Internal power supply via rack |
| Integrated connection type | 3 Ethernet, connector type: RJ45, transmission rate: 10/100/1000 Mbps, transmission mode: double shielded twisted pair |
| Memory usage | Application saving · Activating the advanced web server |
| Transmission support medium | Ethernet backplane |
| Communication service | Bandwidth management · FDR server · Modbus TCP I/O Scanner and Messaging · Ethernet/IP I/O Scanner and Messaging · RSTP support · IP forwarding · Email |
| Web services | FactoryCast configurable |
| Web server | Advanced |
| Current consumption | 1800 mA at 3.3 V DC |
| Local signalling | 1 LED (green) for processor running (RUN) · 1 LED (red) for processor or system fault (ERR) · 1 LED (green/red) for ETH MS (Ethernet port configuration status) · 1 LED (green/red) for Eth NS (Ethernet network status) · 1 LED (green/red) for Eth NS1 (Ethernet network status) · 1 LED (green/red) for Eth NS2 (Ethernet network status) |
| Product weight | 0.2 kg |
| IP degree of protection | IP20 |
| Protective treatment | Conformal coating |
| Ambient air temperature for operation | 0…60 °C |
| Marking | CE |
| Product certifications | CE · UL · CSA · RCM · EAC · Merchant Navy · ATEX zone 2/22 · IECEx zone 2/22 |
| Standards | IEC 61131-2 · IEC 61010-2-201 · UL 61010-2-201 · CSA C22.2 No 61010-2-201 · IACS E10 · IEC 61000-6-5, interface type 1 and type 2 · IEC 61850-3, location G · IEC 60079-0 |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility · 2014/34/EU - ATEX directive |
| Environmental characteristic | Gas resistant class Gx conforming to ISA S71.04 · Gas resistant class 3C4 conforming to IEC 60721-3-3 · Dust resistant class 3S4 conforming to IEC 60721-3-3 · Sand resistant class 3S4 conforming to IEC 60721-3-3 · Salt resistant level 2 conforming to IEC 68252 · Mold growth resistant class 3B2 conforming to IEC 60721-3-3 · Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 · Hazardous location class I division 2 |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.270 kg |
| Warranty (in months) | 18 |
