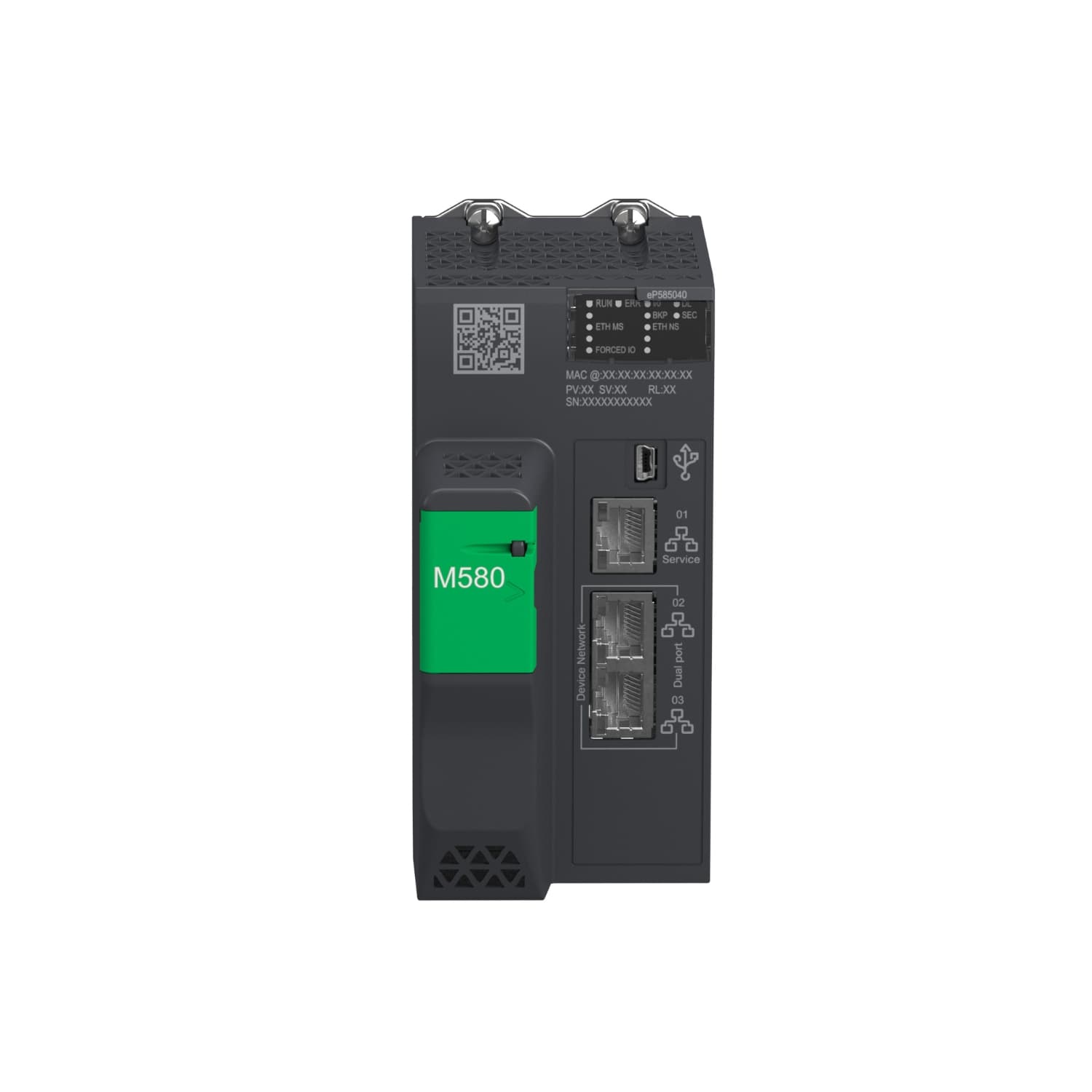

Schneider Electric processor module. standalone processor, Modicon M580, 24MB, 61 Ethernet devices, 31 remote IO racks of X80 and Quantum.
standalone processor, Modicon M580, 24MB, 61 Ethernet devices, 31 remote IO racks of X80 and Quantum. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon M580 |
|---|---|
| Product or component type | Processor module |
| Number of racks | 8 |
| Local I/O processor capacity (discrete) | 5120 I/O |
| Local I/O processor capacity (analog) | 1280 I/O |
| Number of application specific channel (local rack) | 180 |
| Application specific I/O | Counter · SSI encoder · Motion control · Serial link · HART · Accurate time stamping |
| Checks | Process control |
| Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP for service port · 2 Ethernet TCP/IP for device network · USB type mini B |
| Number of remote I/O station | 31 - 2 rack(s) per remote drop |
| Number of distributed equipment | 64 |
| Communication module processor capacity | 16 AS-Interface module · 6 Ethernet communication module |
| Communication service | DIO scanner · RIO scanner |
| Memory description | Expandable flash, 4 GB for data storage · Integrated RAM, 10 kB for system memory · Integrated RAM, 24 MB for program · Integrated RAM, 4096 kB for data |
| Application structure | 1 periodic fast task · 128 event tasks · 1 cyclic/periodic master task · 2 auxiliary tasks |
| Cybersecurity | Achilles certified · DoS prevention · IPSec · SNMP logging · Syslog protocol support · Transport layer security · Audit trail · Embedded firewall · Firmware signature · Password protection · Port hardening · Secure communication (HTTPS) · Security log |
| Number of instructions per ms | 40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic · 50 Kinst/ms 100 % Boolean |
| Current consumption | 300 mA at 24 V DC |
| MTBF reliability | 775000 H |
| Marking | CE |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | 0...2000 m · 2000...5000 m with derating factor |
| Relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE · UL · CSA · RCM · EAC · Merchant Navy |
| Standards | IEC 61131-2 · IEC 61010-2-201 · UL 61010-2-201 · CSA C22.2 No 61010-2-201 · IACS E10 · EN/IEC 61000-6-5, interface type 1 and type 2 · EN/IEC 61850-3, location G |
| Environmental characteristic | Hazardous location class I division 2 |
| Supply | Internal power supply via rack |
| Status LED | 1 LED (green) processor running (RUN) · 1 LED (red) processor or system fault (ERR) · 1 LED (red) I/O module fault (I/O) · 1 LED (green) download in progress (DL) · 1 LED (red) memory card or CPU flash fault (BACKUP) · 1 LED (green/red) ETH MS (Ethernet port configuration status) · 1 LED (green/red) Eth NS (Ethernet network status) · 1 LED (green) I/O values overrided by user (FORCED IO) |
| Product weight | 0.849 kg |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.714 kg |
| Warranty (in months) | 18 |
