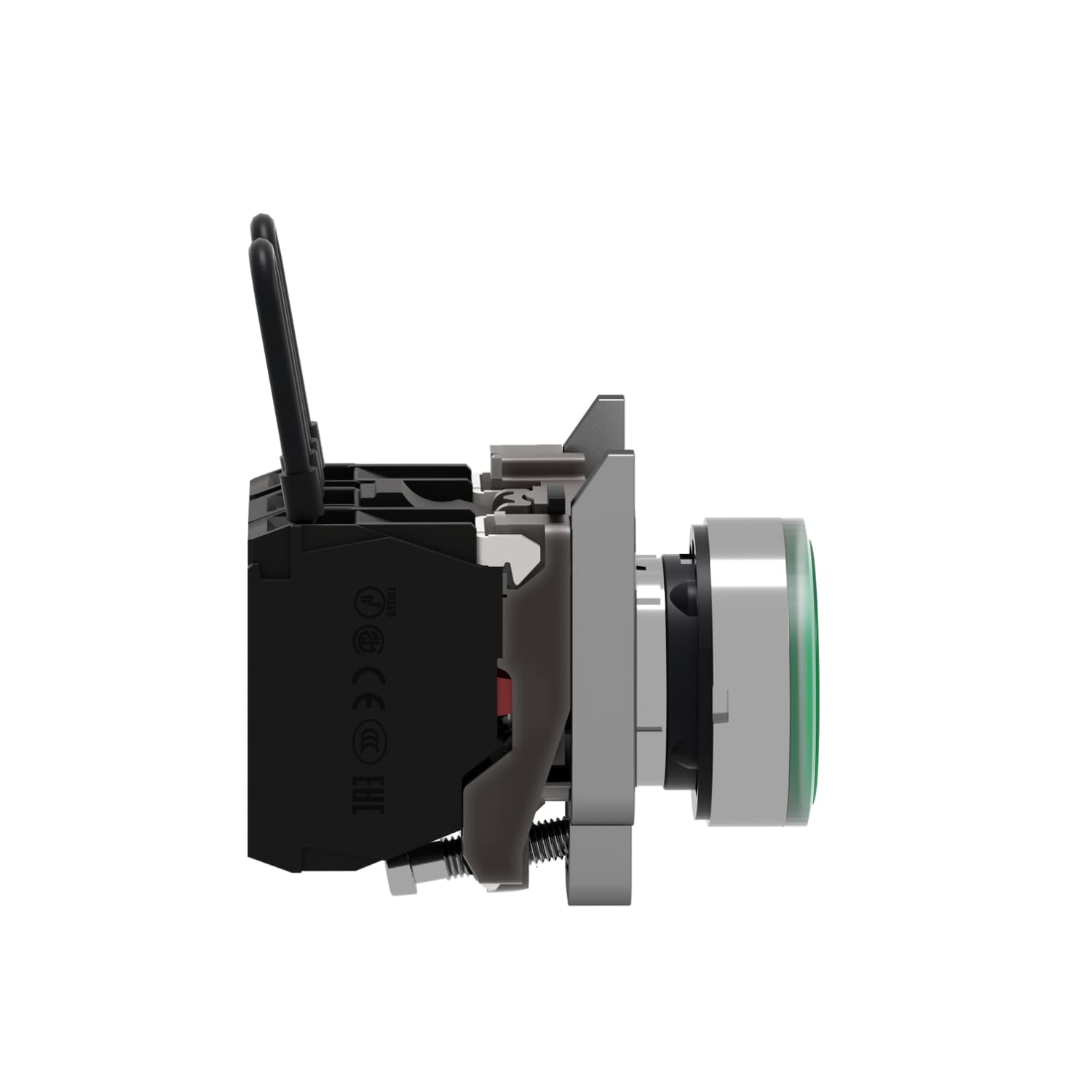

Schneider Electric push-to-test pilot light. Push to test pilot light, Harmony XB4, metal, green, 22mm, universal LED, 24V.
Push to test pilot light, Harmony XB4, metal, green, 22mm, universal LED, 24V. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony XB4 |
|---|---|
| Product or component type | Push-to-test pilot light |
| Device short name | XB4 |
| Bezel material | Metal |
| Fixing collar material | Metal |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Height | 42 mm |
| Width | 30 mm |
| Depth | 55 mm |
| Product weight | 0.09 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Embedding depth | 43 mm |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Green |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60068-2-27 · Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60068-2-27 |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| Light source | Universal LED |
| Light source colour | Green |
| Current consumption | 18 mA |
| Service life | 1.5 year(s) |
| Surge withstand | 1 kV |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class II conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60536 · IP67 · IP69 · IP69K |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK05 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14 · IEC 60947-1 · IEC 60947-5-1 · IEC 60947-5-4 · GB 14048.5 · JIS C8201-5-1 · UL 508 · JIS C8201-1 |
| Product certifications | CSA · LROS (Lloyds register of shipping) · BV · UL listed · DNV |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-6 · 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-6 |
| Warranty (in months) | 18 |
