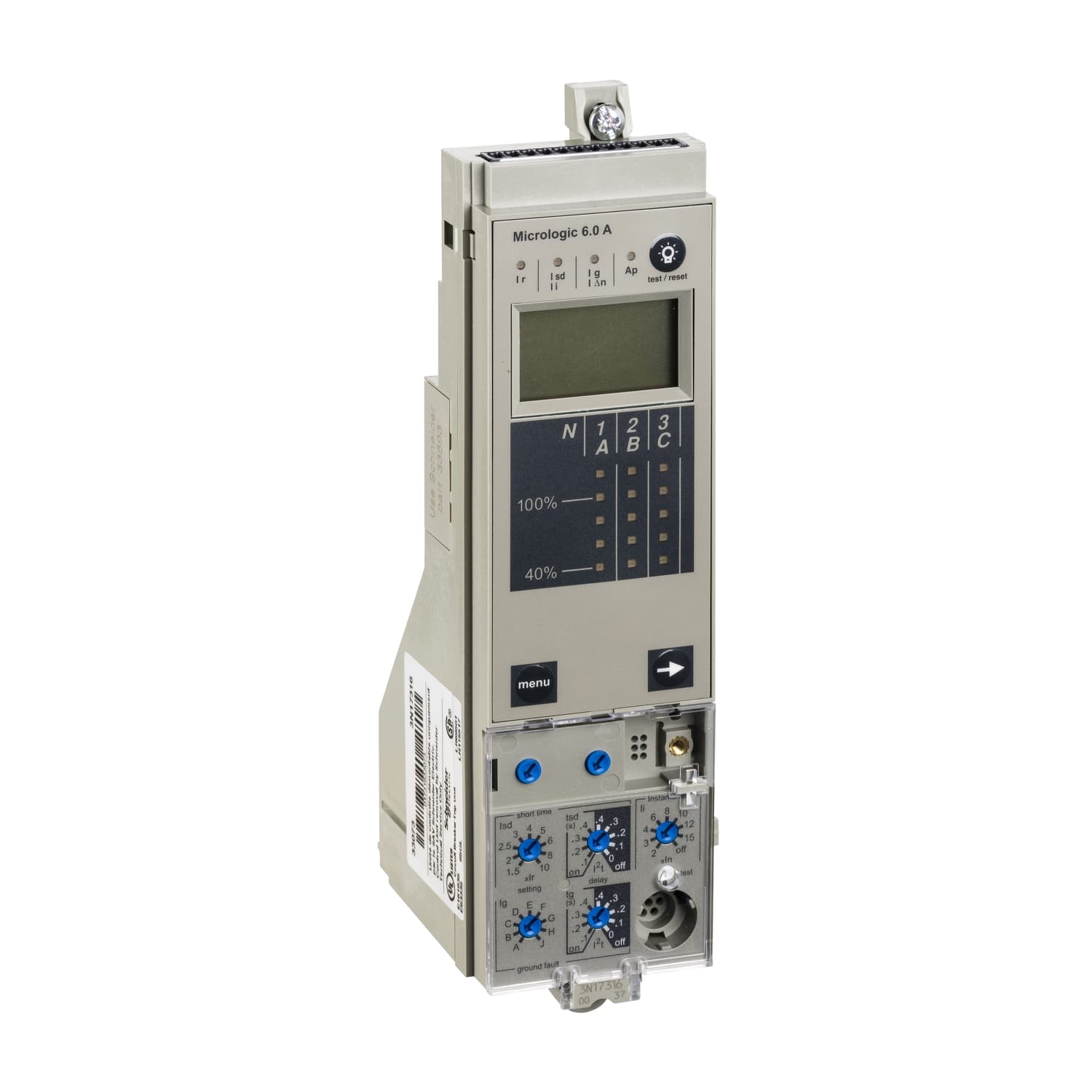

Schneider Electric ComPacT trip unit. Control unit MicroLogic 6.0A, ComPacT NS630b/NS1600, drawout, selective and earth fault protections (LSIG), ammeter.
Control unit MicroLogic 6.0A, ComPacT NS630b/NS1600, drawout, selective and earth fault protections (LSIG), ammeter. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| Range | ComPacT |
|---|
| Range of product | ComPacT NS630b...1600 new generation |
|---|
| Product or component type | Trip unit |
|---|
| Trip unit name | MicroLogic 6.0 A |
|---|
| Trip unit technology | Electronic |
|---|
| Range compatibility | ComPacT NS630b...1600 |
|---|
| Device application | Distribution |
|---|
| Number of poles | 4P · 3P |
|---|
| Protected poles description | 4t · 3t + N/2 · 3t |
|---|
| Trip unit protection functions | Selective + earth-fault protection |
|---|
| Protection type | for overload protection (long time) · for short time short-circuit protection · for instantaneous short-circuit protection · for earth fault |
|---|
| Trip unit rating | 630 A at 50 °C · 800 A at 50 °C · 1000 A at 50 °C · 1250 A at 50 °C · 1600 A at 50 °C |
|---|
| Network type | AC |
|---|
| Network frequency | 50/60 Hz |
|---|
| Circuit breaker mounting mode | Drawout |
|---|
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
|---|
| [Ir] long-time protection pick-up adjustment range | 0.4...1 x In |
|---|
| Long-time protection delay adjustment type tr | Adjustable 9 settings |
|---|
| [tr] long-time protection delay adjustment range | 0.7…16.6 s at 7.2 x Ir · 0.7…24 s at 6 x Ir · 12.5…600 s at 1.5 x Ir |
|---|
| Thermal memory | 20 mn |
|---|
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
|---|
| [Isd] Short-time protection pick-up adjustment range | 1.5...10 x Ir |
|---|
| Short-time protection delay adjustment type tsd | Adjustable |
|---|
| [tsd] Short-time protection delay adjustment range | 0…0.4 s I²t=off · 0.1…0.4 s I²t=on |
|---|
| Instantaneous protection pick-up adjustment type Ii | Adjustable 9 settings |
|---|
| [Ii] instantaneous protection pick-up adjustment range | 2...15 x In · Off |
|---|
| Ground-fault protection pick-up adjustment type Ig | Adjustable 9 settings |
|---|
| [Ig] ground-fault protection pick-up adjustment range | 0.2...1 x In for 400 A = 1250 A |
|---|
| Ground-fault protection time delay adjustment type tg | Adjustable |
|---|
| [tg] ground-fault protection time delay adjustment range | 0…0.4 s I²t=off · 0.1…0.4 s I²t=on |
|---|
| Earth-leakage protection | Without |
|---|
| Zone selective interlocking ZSI | With |
|---|
| Local signalling | 3 LEDs (red) for electrical fault · 1 LED (red) for internal error |
|---|
| Display type | Digital display |
|---|
| Type of measurement | Ammeter |
|---|
| Communication of data | Measurement readout · Protection and alarm settings |
|---|
| Ambient air temperature for operation | -25…70 °C |
|---|
| Ambient air temperature for storage | -40…85 °C |
|---|
| Warranty (in months) | 18 |
|---|
