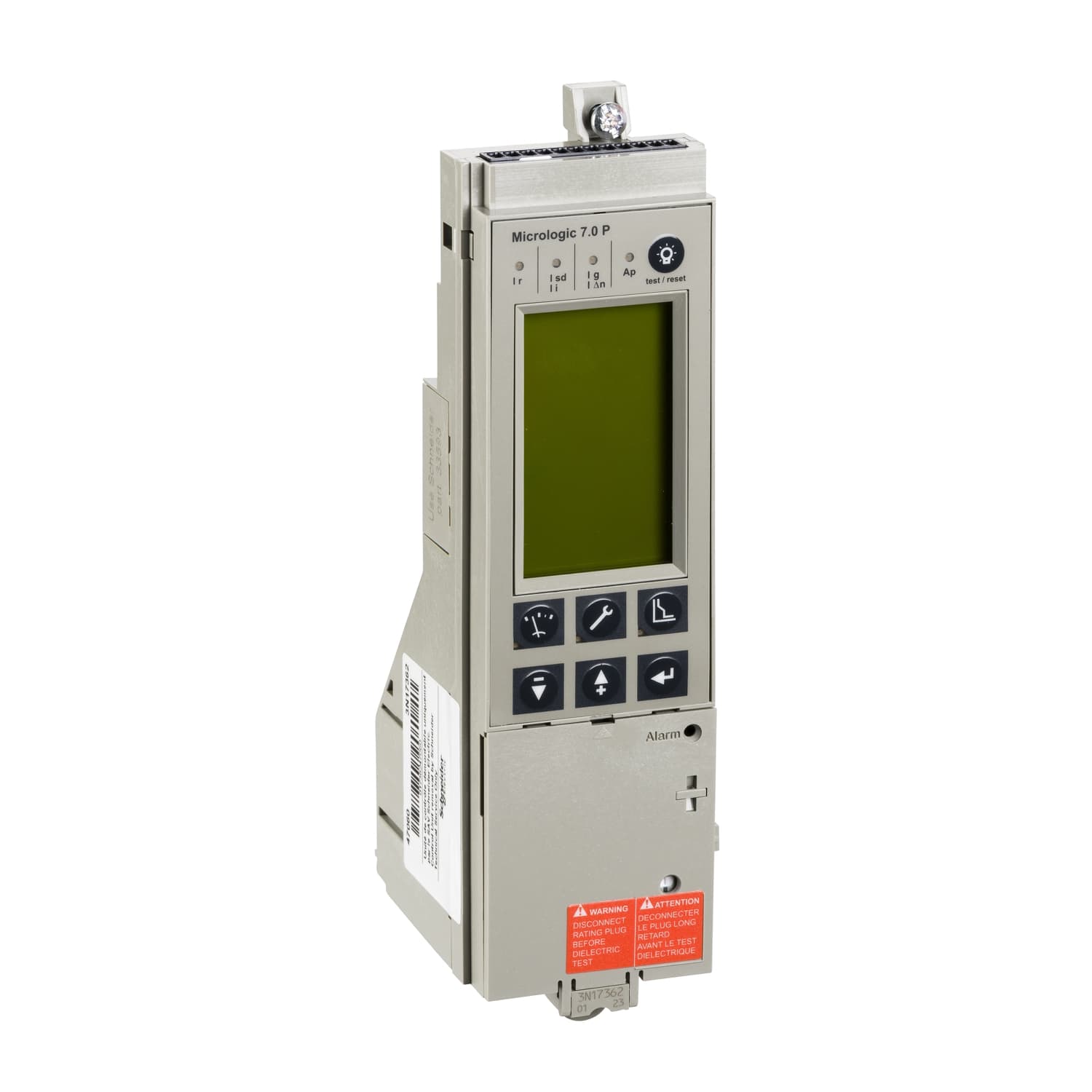

Schneider Electric ComPacT trip unit. Control unit MicroLogic 7.0P, ComPacT NS630b/NS1600, drawout, selective + earth leakage protections (LSIV), power meter.
Control unit MicroLogic 7.0P, ComPacT NS630b/NS1600, drawout, selective + earth leakage protections (LSIV), power meter. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| Range | ComPacT |
|---|
| Range of product | ComPacT NS630b...1600 new generation |
|---|
| Product or component type | Trip unit |
|---|
| Trip unit name | MicroLogic 7.0 P |
|---|
| Trip unit technology | Electronic |
|---|
| Range compatibility | ComPacT NS630b...1600 |
|---|
| Device application | Distribution |
|---|
| Number of poles | 3P · 4P |
|---|
| Protected poles description | 4t · 3t · 3t + N/2 |
|---|
| Trip unit protection functions | Selective + earth-leakage protection |
|---|
| Protection type | for overload protection (long time) · for short time short-circuit protection · for instantaneous short-circuit protection · for earth-leakage protection |
|---|
| Trip unit rating | 630 A at 50 °C · 800 A at 50 °C · 1000 A at 50 °C · 1250 A at 50 °C · 1600 A at 50 °C |
|---|
| Network type | AC |
|---|
| Network frequency | 50/60 Hz |
|---|
| Circuit breaker mounting mode | Drawout |
|---|
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
|---|
| [Ir] long-time protection pick-up adjustment range | 0.4...1 x In |
|---|
| Long-time protection delay adjustment type tr | Adjustable 9 settings |
|---|
| [tr] long-time protection delay adjustment range | 0.7…16.6 s at 7.2 x Ir · 0.7…24 s at 6 x Ir · 12.5…600 s at 1.5 x Ir |
|---|
| Thermal memory | 20 mn |
|---|
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
|---|
| [Isd] Short-time protection pick-up adjustment range | 1.5...10 x Ir |
|---|
| Short-time protection delay adjustment type tsd | Adjustable |
|---|
| [tsd] Short-time protection delay adjustment range | 0…0.4 s I²t=off · 0.1…0.4 s I²t=on |
|---|
| Instantaneous protection pick-up adjustment type Ii | Adjustable 9 settings |
|---|
| [Ii] instantaneous protection pick-up adjustment range | Off · 2...15 x In |
|---|
| Earth-leakage protection | Integrated |
|---|
| Earth-leakage protection sensitity adjustment type IΔn | Adjustable 9 settings |
|---|
| [IΔn] earth-leakage protection sensitivity adjustment range | 0.5…30 A |
|---|
| Earth-leakage sensitivity | 10 A for class A · 30 A for class AC |
|---|
| Earth-leakage protection time delay adjustement type Δt | Adjustable 5 settings |
|---|
| [Δt] Earth-leakage protection time delay adjustment range | 60…800 ms |
|---|
| Zone selective interlocking ZSI | With |
|---|
| Local signalling | 3 LEDs (red) for electrical fault · 1 LED (red) for internal error |
|---|
| Display type | Digital display |
|---|
| Type of measurement | Power meter |
|---|
| Communication of data | Measurement readout · Protection and alarm settings · Maintenance indicators |
|---|
| Ambient air temperature for operation | -25…70 °C |
|---|
| Ambient air temperature for storage | -40…85 °C |
|---|
| Warranty (in months) | 18 |
|---|
