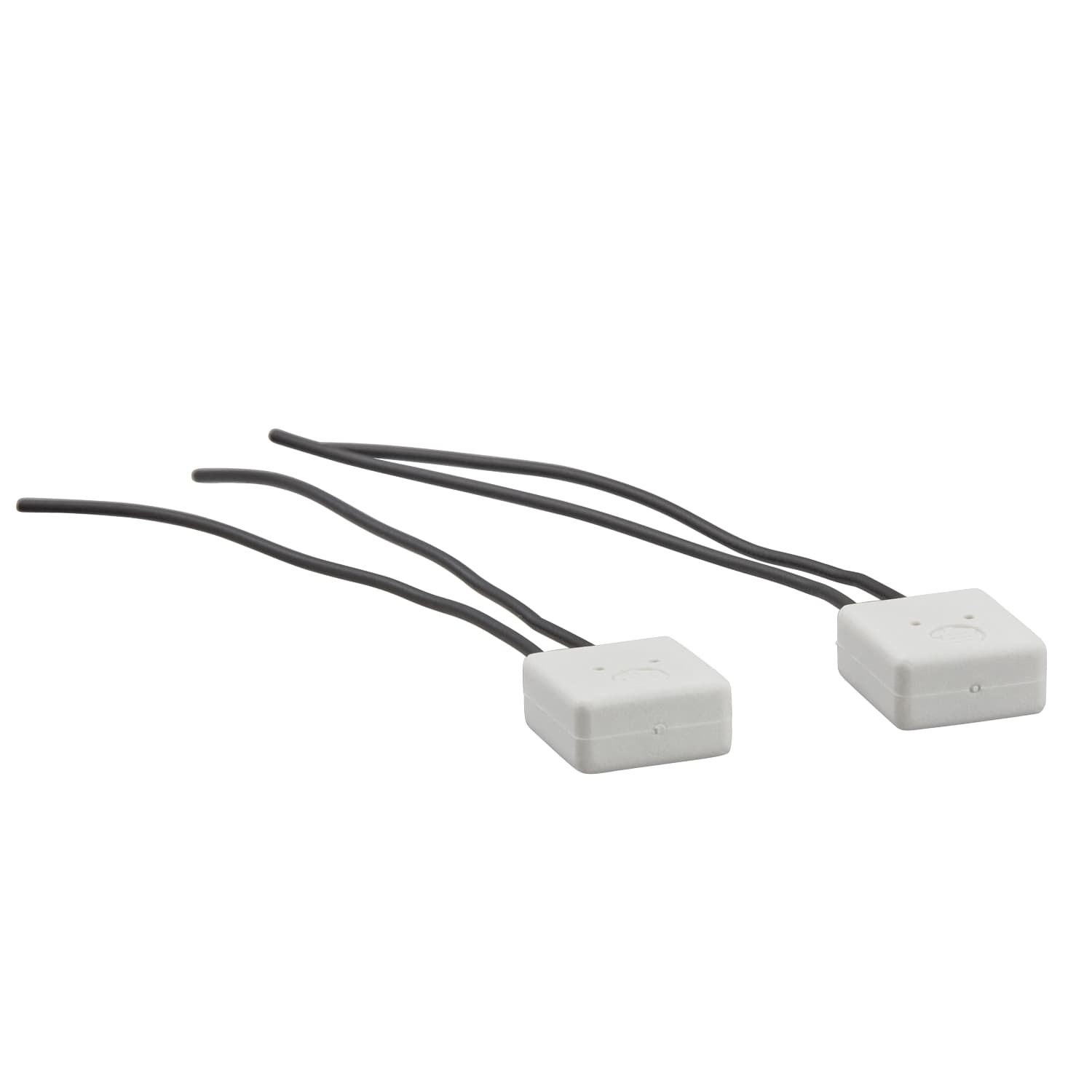

Schneider Electric interface module. IFM Modbus SL interface module, Enerlin'X.
IFM Modbus SL interface module, Enerlin'X. Genuine Schneider Electric product supplied by United Force.
| Range of product | ComPact NSX100...250 · ComPact NSX400...630 · ComPact NS630b...1600 · ComPact NS1600b...3200 |
|---|---|
| Device short name | IFM |
| Product or component type | Interface module |
| Range compatibility | Masterpact MasterPact MTZ · Masterpact MasterPact NT · Masterpact MasterPact NW · ComPact ComPact NSX · ComPact ComPact NS630b...1600 · ComPact ComPact NS1600b...3200 · PowerPact PowerPact J · PowerPact PowerPact L · PowerPact PowerPact H · PowerPact PowerPact P · PowerPact PowerPact R |
| Communication network type | Universal Logic Plug on 2-port RJ45 · Modbus, Modbus Serial line slave9.6...38.4 kbauds on 1 RJ45 |
| Mounting mode | By clips |
| Mounting support | 35 mm DIN rail |
| Accuracy class | Class 2 power supply |
| Input voltage | 24 V DC - 20...10 % |
| Output voltage | 24 V DC |
| Output current | 3 A |
| Current consumption | 30 mA 24 V DC room temperature |
| Power consumption in W | 1.635 W |
| Memory type | EEPROM data storage |
| Connections - terminals | RJ45 connector · Screw type terminals |
| Product certifications | EAC · cULus · CE · FCC |
| Standards | CISPR 22 · UL 61010 · UL 60950 · CISPR 24 · CISPR 11 · IEC 60950 · IACS E10 |
| Height | 109 mm |
| Width | 18 mm |
| Depth | 73 mm |
| Product weight | 120 g |
| IP degree of protection | Connectors: IP20 · Other parts: IP30 |
| Relative humidity | 5…85 % at 55 °C without condensation |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -20…70 °C |
| Pollution degree | 3 |
| Flame retardance | V0 conforming to UL 94 |
| Shock resistance | +/- 15 gn 11 ms conforming to EN/IEC 60068-2-27 |
| Vibration frequency | 5…8.4 Hz conforming to EN/IEC 60068-2 |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 54 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 6.772 kg |
| Warranty (in months) | 18 |
