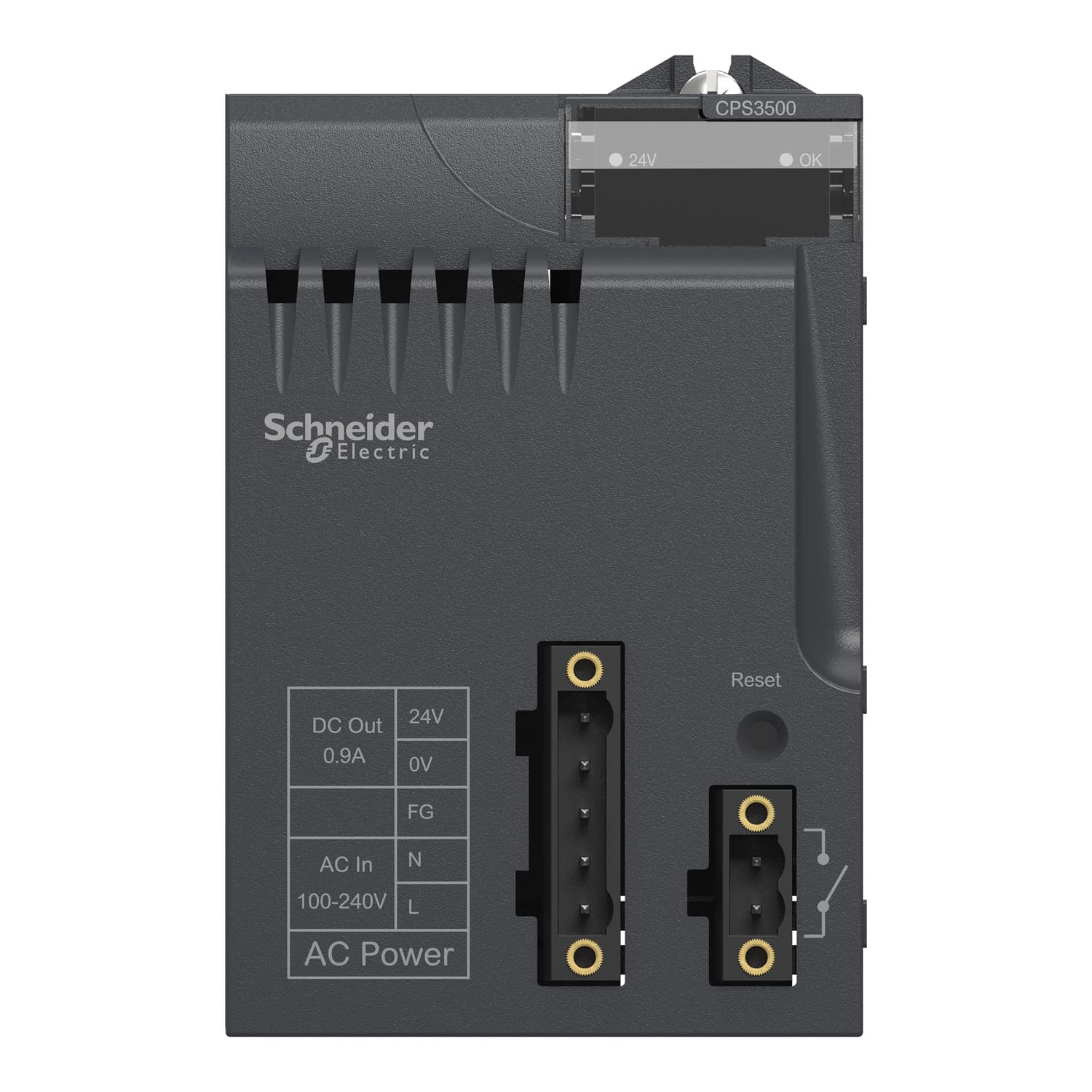

Schneider Electric power supply module. power supply module, Modicon X80, 100 to 240V AC, 36W.
power supply module, Modicon X80, 100 to 240V AC, 36W. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Power supply module |
| backplane compatibility | Not compatible with BMEXBP..02 |
| Primary voltage | 100...240 V |
| Supply circuit type | AC |
| Secondary power | 15 W 3.3 V DC I/O module logic power supply · 31.2 W 24 V DC I/O module power supply and processor · 21.6 W 24 V DC sensor power supply |
| Primary voltage limit | 85...264 V |
| Network frequency | 50/60 Hz |
| Network frequency limits | 47…63 Hz |
| Apparent power | 0.12 kVA |
| Input current | 0.52 A 240 V · 1.04 A 115 V |
| Inrush current | 30 A 120 V · 60 A 240 V |
| I²t on activation | 1 A².s 120 V · 3 A².s 240 V |
| It on activation | 0.05 A.s 120 V · 0.07 A.s 240 V |
| MTBF reliability | 4300000 H |
| Protection type | Internal fuse not accessible for primary circuit · Overload protection for secondary circuit · Overvoltage protection for secondary circuit · Short-circuit protection for secondary circuit |
| Current at secondary voltage | 0.9 A 24 V DC sensor power supply · 1.3 A 24 V DC I/O module power supply and processor · 4.5 A 3.3 V DC I/O module logic power supply |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green) rack voltage OK · 1 LED (green) sensor voltage |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay · 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor |
| Insulation resistance | >= 100 MOhm primary/ground · >= 100 MOhm primary/secondary |
| Product weight | 0.36 kg |
| Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/secondary I/O module logic power supply · 1500 V primary/secondary I/O module power supply and processor · 2300 V primary/secondary sensor power supply · 1500 V primary/ground · 500 V 24 V sensor output/ground |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | TC |
| Operating altitude | 0...2000 m · 2000...5000 m with derating factor |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 7.520 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
