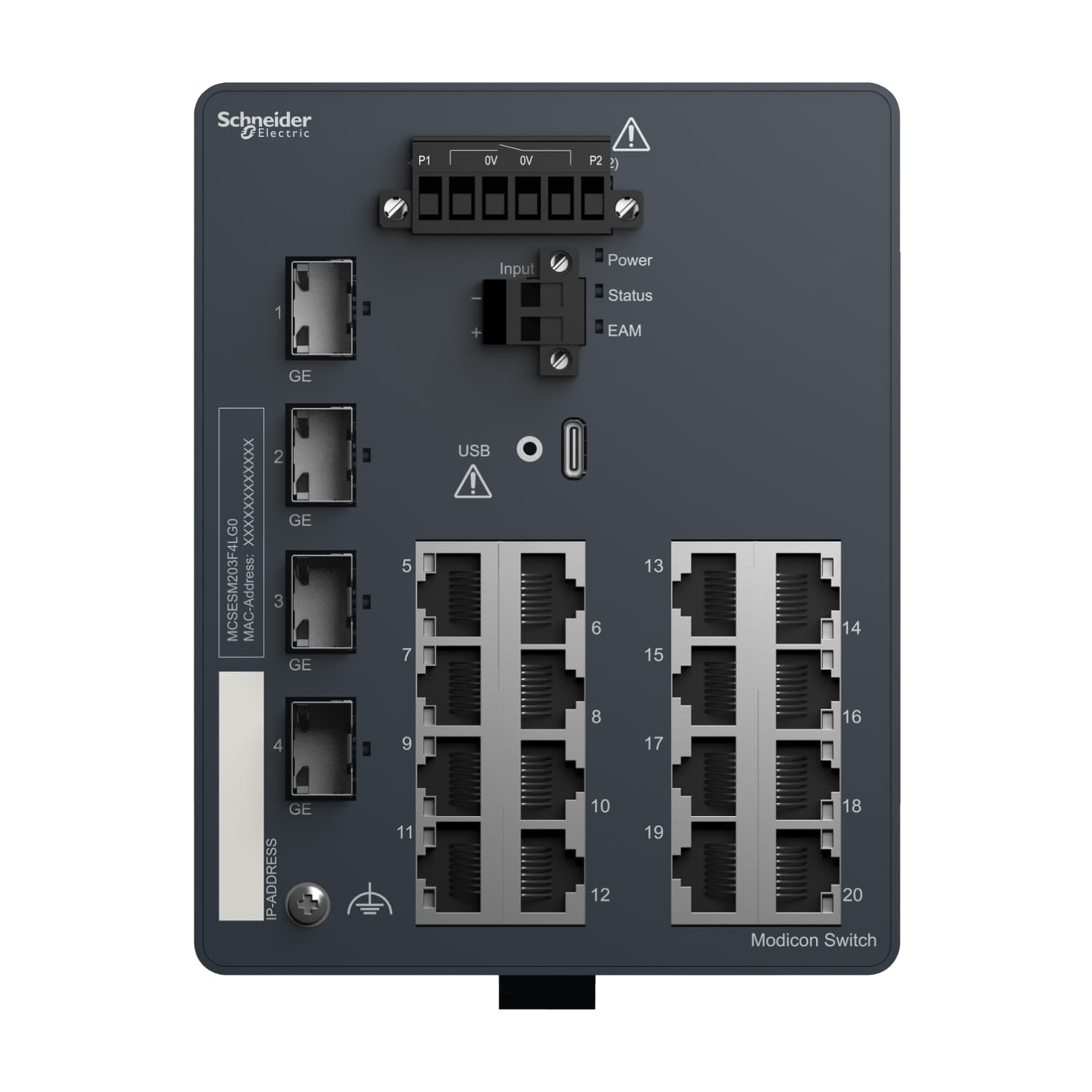

Schneider Electric ethernet tcp/ip managed switch. network switch, Modicon Networking, managed, 16 ports for copper with 4Gigabit SFP.
network switch, Modicon Networking, managed, 16 ports for copper with 4Gigabit SFP. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon Networking |
|---|---|
| Product or component type | Ethernet TCP/IP managed switch |
| Communication port protocol | Ethernet TCP/IP · SSH · HTTP · HTTPS · SNMP · SFTP · SCP · LLDP · Telnet · SNTP · Modbus TCP · IEC 61850 MMS Server · OPC UA |
| Port Ethernet | 10/100BASE-TX - 16 port(s) copper cable · 100/1000 SFP - 4 port(s) |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | Port hardening · IP-based port security · MAC-based port security · Port-based access control · Role-based access control · RADIUS assignment · HTTPS · DoS prevention · VLAN-based ACL · Audit trail · SNMP logging · Pre-login banner · TACACS+ |
| Integrated connection type | Shielded RJ45 copper cable · SFP port fiber optic (Gbit) |
| Transmission support medium | Twisted shielded pairs cable CAT 5E for copper cable · Fiber optic cable for fiber optic (Gbit) |
| Maximum cable distance between devices | 100 m copper cable |
| Ethernet service | Configuration via web server · VLAN · Multicast filtering · Data stream control · IGMP Snooping · SNMP-Traps and SYSLOG |
| Communication service | TFTP · Quality of Service (QoS) · Port monitoring · Port mirroring · Address conflict detection |
| Diagnostics run time | Signal contact · Self test · MAC notification |
| Maximum number of switches in a ring | 50 |
| Redundancy | HiPER ring · RSTP · Link aggregation · Link backup · Redundant network coupling · MRP · Redundant coupling protocol · MSTP |
| [Us] rated supply voltage | 12...24 V |
| Supply voltage limits | 9.6…32 V DC SELV |
| Power consumption in W | 15 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE · CULus · RCM |
| Function available | Security status · Alarms (Traps) · System information · Report |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies · 1 dual colour LED (green/red) for device status · 1 dual colour LED (green/yellow) for memory key status · 1 dual colour LED (green/yellow) for channel diagnostic |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault · Data link status · Switch fault · Temperature threshold · Redundancy ring fault · Incorrect configuration · External memory removed |
| Ethernet cabling system | TF switches |
| Width | 108.8 mm |
| Height | 142.8 mm |
| Depth | 117.6 mm |
| Product weight | 0.95 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 1…95 % non-condensing |
| IP degree of protection | IP30 |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility |
| Standards | UL 61010-2-201 · EN/IEC 61131-2 · IEC 61850-3 · IEC 62443-4-2 |
| Product certifications | CE · UL · RCM · DNV · ATEX · EAC · UKCA · CSA C22-2 No 213 · UKEX · FCC part 15 class A · CCC Ex |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 3.551 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 24 |
| Package 3 Height | 103.000 cm |
| Package 3 Width | 80.000 cm |
