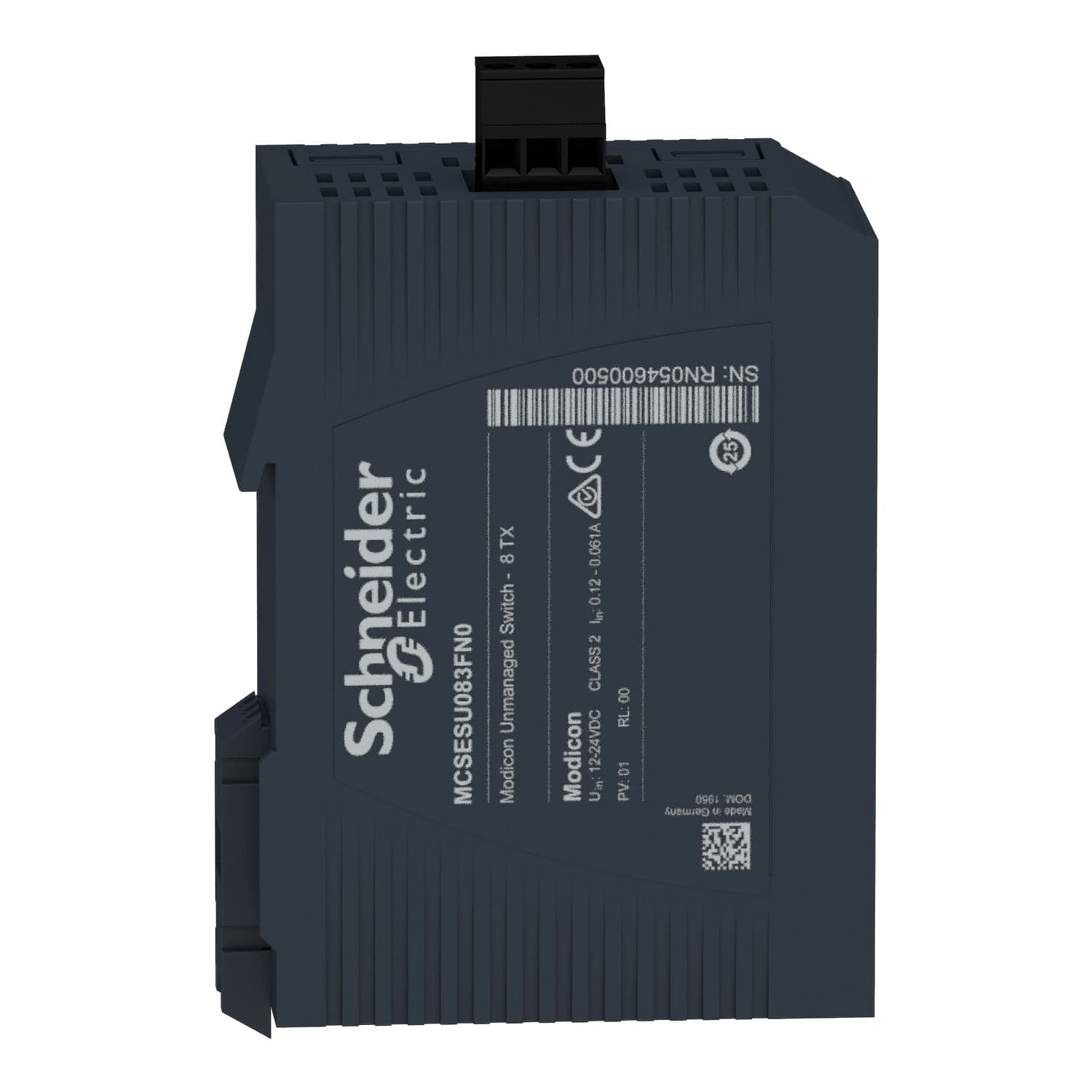

Schneider Electric ethernet tcp/ip unmanaged switch. network switch, Modicon Networking, standard unmanaged, 8 ports for copper.
network switch, Modicon Networking, standard unmanaged, 8 ports for copper. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon Networking |
|---|---|
| Product or component type | Ethernet TCP/IP unmanaged switch |
| Communication port protocol | Ethernet TCP/IP |
| Port Ethernet | 10/100BASE-TX - 8 port(s) copper cable |
| Maximum number of switches in cascade | Unlimited |
| Integrated connection type | Shielded RJ45 copper cable |
| Transmission support medium | Twisted shielded pairs cable CAT 5E for copper cable |
| Maximum cable distance between devices | 100 m copper cable |
| [Us] rated supply voltage | 12...24 V |
| Supply voltage limits | 9.6…32 V DC SELV |
| Power consumption in W | 1.5 W |
| Electrical connection | Removable connector 3 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE · UL · RCM |
| Local signalling | 1 LED (green) for power supply · 1 LED per channel (yellow) for data rate (ETH LINK) · 1 dual colour LED (green/yellow) for link status |
| Ethernet cabling system | TF switches |
| Width | 38 mm |
| Height | 102 mm |
| Depth | 79 mm |
| Product weight | 0.15 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % non-condensing |
| IP degree of protection | IP30 |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility |
| Standards | UL 61010-2-201 · EN/IEC 61131-2 |
| Product certifications | CE · UL · RCM · EAC · UKCA |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 6.792 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 42.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 38.200 kg |
| Warranty (in months) | 18 |
