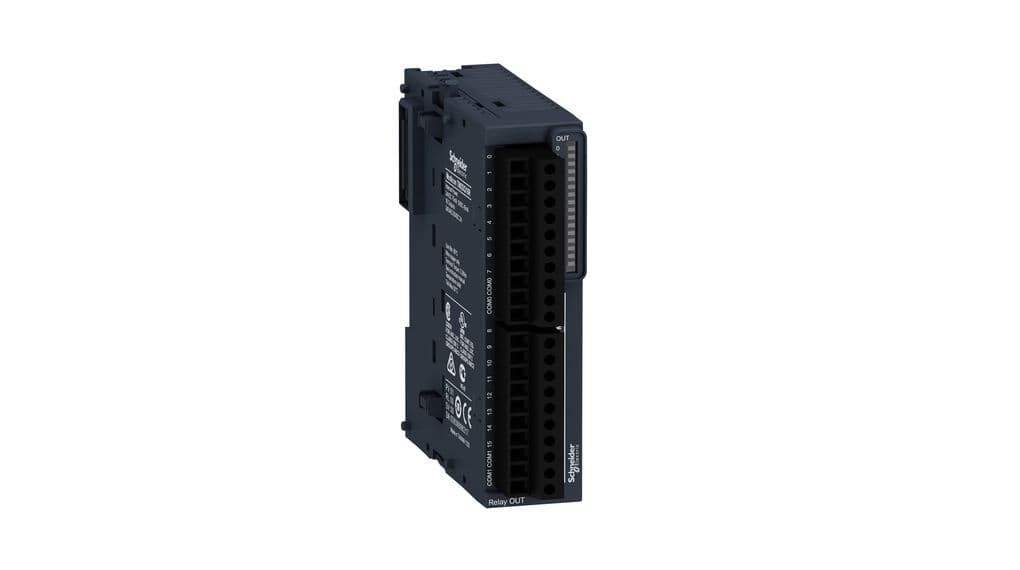

Schneider Electric discrete output module. discrete output module, Modicon TM3, 16 relay outputs, screw, 24V DC.
discrete output module, Modicon TM3, 16 relay outputs, screw, 24V DC. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon TM3 |
|---|---|
| Product or component type | Discrete output module |
| Range compatibility | Modicon M241 · Modicon M251 · Modicon M221 · Modicon M262 |
| Device application | Industrial application |
| Discrete output number | 16 |
| Discrete output logic | Positive or negative |
| Discrete output voltage | 240 V AC for relay outputs · 30 V DC for relay outputs |
| Discrete output current | 2000 mA relay output |
| Minimum switching current | 10 mA 5 V DC |
| Response time on output | <= 10 ms maximum (turn on) · <= 5 ms maximum (turn off) |
| Mechanical durability | 20000000 cycles |
| Safety reliability data | MTBF = 130 years 40 °C |
| Power supply type | Electronic powered by internal bus |
| Typical current consumption | 37 mA at 5 V DC · 5 mA |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for outputs |
| Maximum cable distance between devices | Unshielded cable: <30 m for relay output |
| Isolation between channels and bus | 500 V AC |
| Local signalling | 1 LED per channel (green) for output status |
| Housing colour | Grey |
| AWG gauge | 0.14…1.5 mm² / 26 AWG...16 AWG with solid cable |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 · Top hat type TH35-7.5 rail conforming to IEC 60715 · plate or panel with fixing kit |
| Height | 90 mm |
| Width | 27.4 mm |
| Depth | 84.6 mm |
| Product weight | 0.145 kg |
| IP degree of protection | IP20 |
| Protective treatment | None |
| Marking | CE |
| Product certifications | CE · CULus · UKCA · RCM · EAC · CULus HazLoc |
| Standards | IEC 61131-2 |
| Ambient air temperature for operation | -10…35 °C (vertical installation) · -10…55 °C (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation · 10…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail · 3 gn (f = 8.4…150 Hz) on DIN rail · 3.5 mm (f = 5…8.4 Hz) on panel mounting · 3 gn (f = 8.4…150 Hz) on panel mounting |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 12.0 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 504 |
