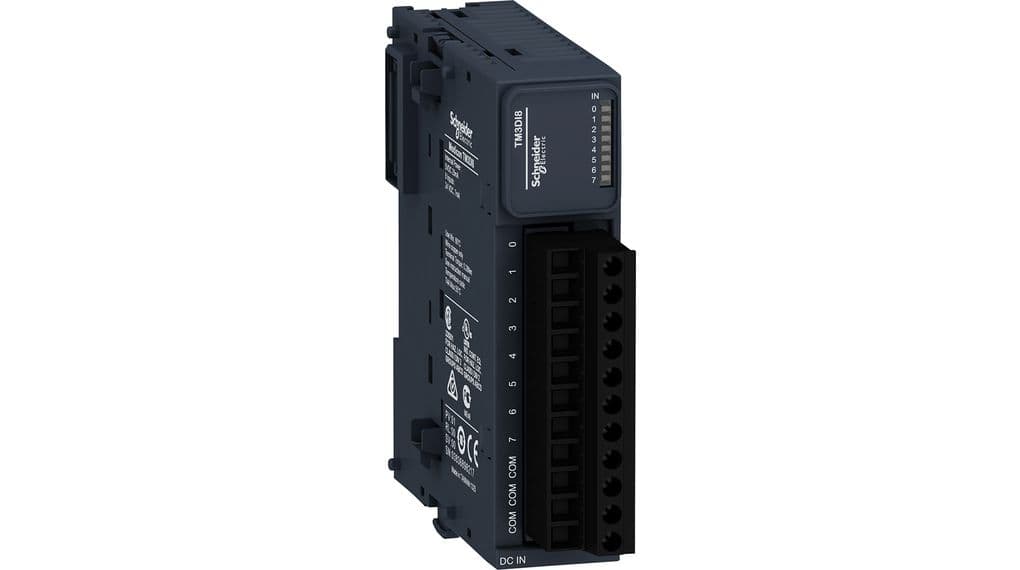

Schneider Electric discrete input module. discrete input module, Modicon TM3, 8 inputs, screw, 24V DC.
discrete input module, Modicon TM3, 8 inputs, screw, 24V DC. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon TM3 |
|---|---|
| Product or component type | Discrete input module |
| Range compatibility | Modicon M241 · Modicon M251 · Modicon M221 · Modicon M262 |
| Device application | Industrial application |
| Discrete input number | 8 |
| Discrete input voltage | 24 V DC |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input compatibility | 8 conforming to IEC 61131-2 Type 1 |
| Discrete input current | 7 mA |
| Voltage state 1 guaranteed | Input: 15...28.8 V DC |
| Voltage state 0 guaranteed | 0...5 V input |
| Current state 1 guaranteed | >= 2.5 mA |
| Current state 0 guaranteed | <= 1 mA |
| Input impedance | 3.4 kOhm |
| Response time on input | 4 ms (maximum (turn on)) · 4 ms (maximum (turn off)) |
| Safety reliability data | MTBF = 410 years 40 °C |
| Power supply type | Electronic powered by internal bus |
| Typical current consumption | 22 mA at 5 V DC · 5 mA |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs |
| Maximum cable distance between devices | Unshielded cable: <30 m for regular input |
| Isolation between channels and bus | 500 V AC |
| Local signalling | 1 LED per channel (green) for input status |
| Housing colour | Grey |
| AWG gauge | 0.2…2.5 mm² / 24 AWG...14 AWG with solid cable |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 · Top hat type TH35-7.5 rail conforming to IEC 60715 · plate or panel with fixing kit |
| Height | 90 mm |
| Width | 27.4 mm |
| Depth | 84.6 mm |
| Product weight | 0.085 kg |
| IP degree of protection | IP20 |
| Protective treatment | None |
| Marking | CE |
| Product certifications | CE · CULus · UKCA · RCM · EAC · CULus HazLoc |
| Standards | IEC 61131-2 |
| Ambient air temperature for operation | -10…35 °C (vertical installation) · -10…55 °C (horizontal installation) |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 % without condensation for operation · 10…95 % without condensation for storage |
| Operating altitude | 0...2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3.5 mm (f = 5…8.4 Hz) on DIN rail · 3 gn (f = 8.4…150 Hz) on DIN rail · 3.5 mm (f = 5…8.4 Hz) on panel mounting · 3 gn (f = 8.4…150 Hz) on panel mounting |
| Shock resistance | 15 gn for 11 ms |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
