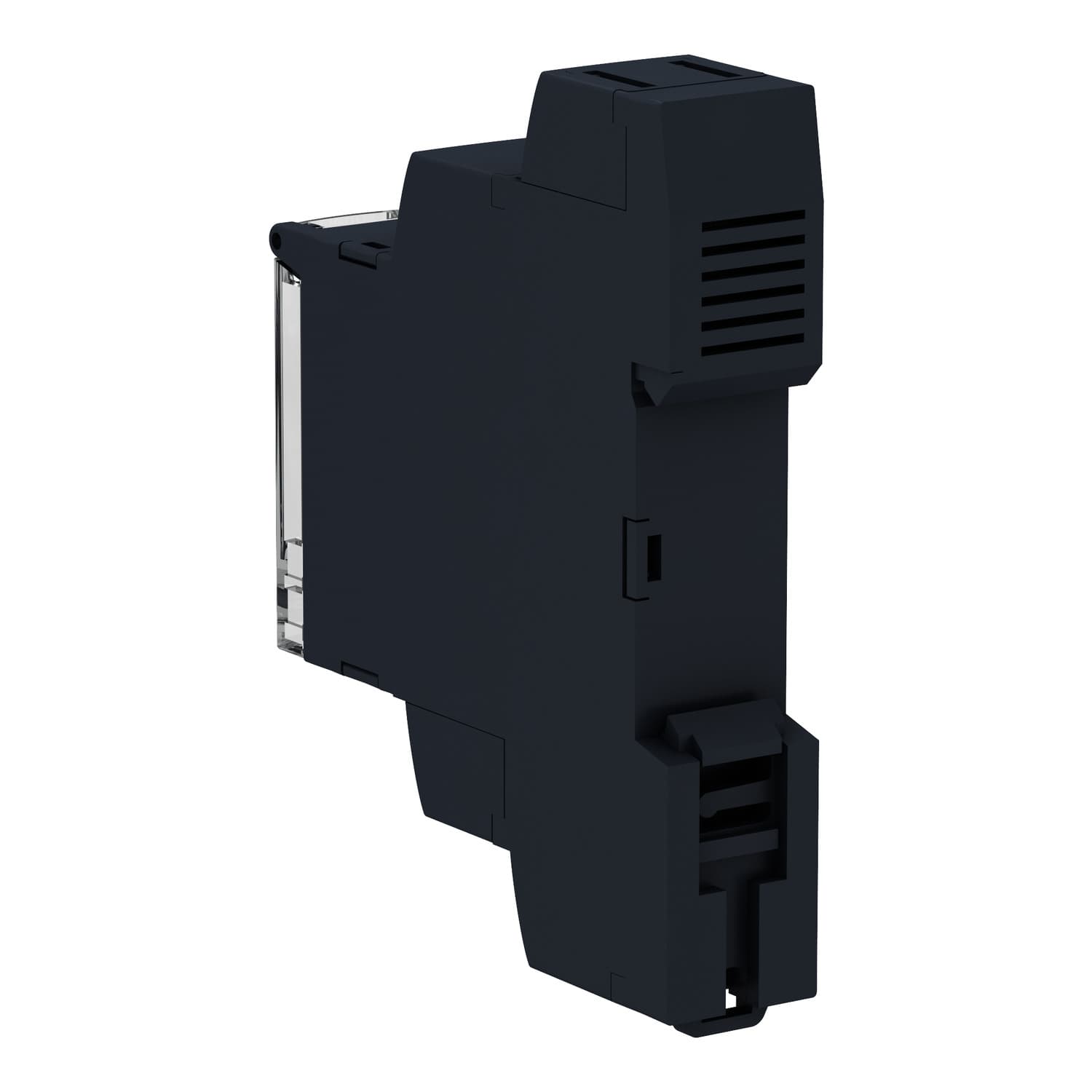

Schneider Electric modular timing relay. single function relay, Harmony Timer Relays, 0.7A, 1s.100h, multifunction, solid state output, 24 to 240V AC.
single function relay, Harmony Timer Relays, 0.7A, 1s..100h, multifunction, solid state output, 24 to 240V AC. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony Timer Relays |
|---|---|
| Discrete output type | Solid state |
| Width | 17.5 mm |
| Product or component type | Modular timing relay |
| Component name | RE17L |
| Time delay range | 1...10 s · 6...60 s · 6...60 min · 1...10 h · 10...100 h · 1...10 min · 0.1...1 s |
| nominal output current | 0.7 A |
| Height | 90 mm |
| Depth | 72 mm |
| Control type | Selector switch front panel |
| [Us] rated supply voltage | 24...240 V AC 50/60 Hz |
| Voltage range | 0.85...1.1 Us |
| Supply frequency | 50...60 Hz +/- 5 % |
| release of input voltage | 8 V |
| control signal pulse width | 0.05 s typical |
| Insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| [Uimp] rated impulse withstand voltage | 5 kV during 1.2/50 µs |
| power on delay | 100 ms |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 3.3 mm² (20 AWG...12 AWG) solid without cable end · Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end · Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end · Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Dielectric strength | 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1 |
| Housing material | Polycarbonate |
| Repeat accuracy | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Time delay type | Power on-delay - A- Power on-delay relay · On-delay and off-delay - Ac- On-delay and off-delay relay w/ control signal · Power on-delay - At- Power on-delay relay w/ pause/summation (Y1) · Interval - B- Single interval relay w/ control signal · Interval - Bw- Double interval relay w/ control signal · Off-delay - C- Off-delay relay w/ control signal · Symmetrical flashing - D- Symmetrical flashing relay (starting pulse-off) · Symmetrical flashing - Di- Symmetrical flashing relay (starting pulse-on) · Interval - H- Interval relay · Interval - Ht- Interval relay w/ pause/summation (Y1) |
| Reset time | 350 ms on de-energisation typical |
| On-load factor | 100 % |
| Power consumption in VA | 0…3 VA at 240 V AC |
| Maximum power consumption in W | 1.5 W at 240 V DC |
| Breaking capacity | 0.5 A AC conforming to UL · 0.7 A AC at 20 °C |
| operating frequency | 10 Hz |
| Maximum output current | 20 A |
| minimum switching current | 10 mA |
| Maximum leakage current | 5 mA |
| Maximum switching voltage | 250 V AC |
| Maximum voltage drop | <4 V 3-wire · <8 V 2-wire |
| Electrical durability | 100000000 cycles |
| Marking | CE |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| Safety reliability data | MTTFd = 353.8 years · B10d = 320000 |
| Mounting position | Any position in relation to normal vertical mounting plane |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Function available | A- Power on-delay relay-1 solid state output · Ac- On-delay and off-delay relay w/ control signal-1 solid state output · At- Power on-delay relay w/ pause/summation (Y1)-1 solid state output · B- Single interval relay w/ control signal-1 solid state output · Bw- Double interval relay w/ control signal-1 solid state output · C- Off-delay relay w/ control signal-1 solid state output · D- Symmetrical flashing relay (starting pulse-off)-1 solid state output · Di- Symmetrical flashing relay (starting pulse-on)-1 solid state output · H- Interval relay-1 solid state output · Ht- Interval relay w/ pause/summation (Y1)-1 solid state output |
