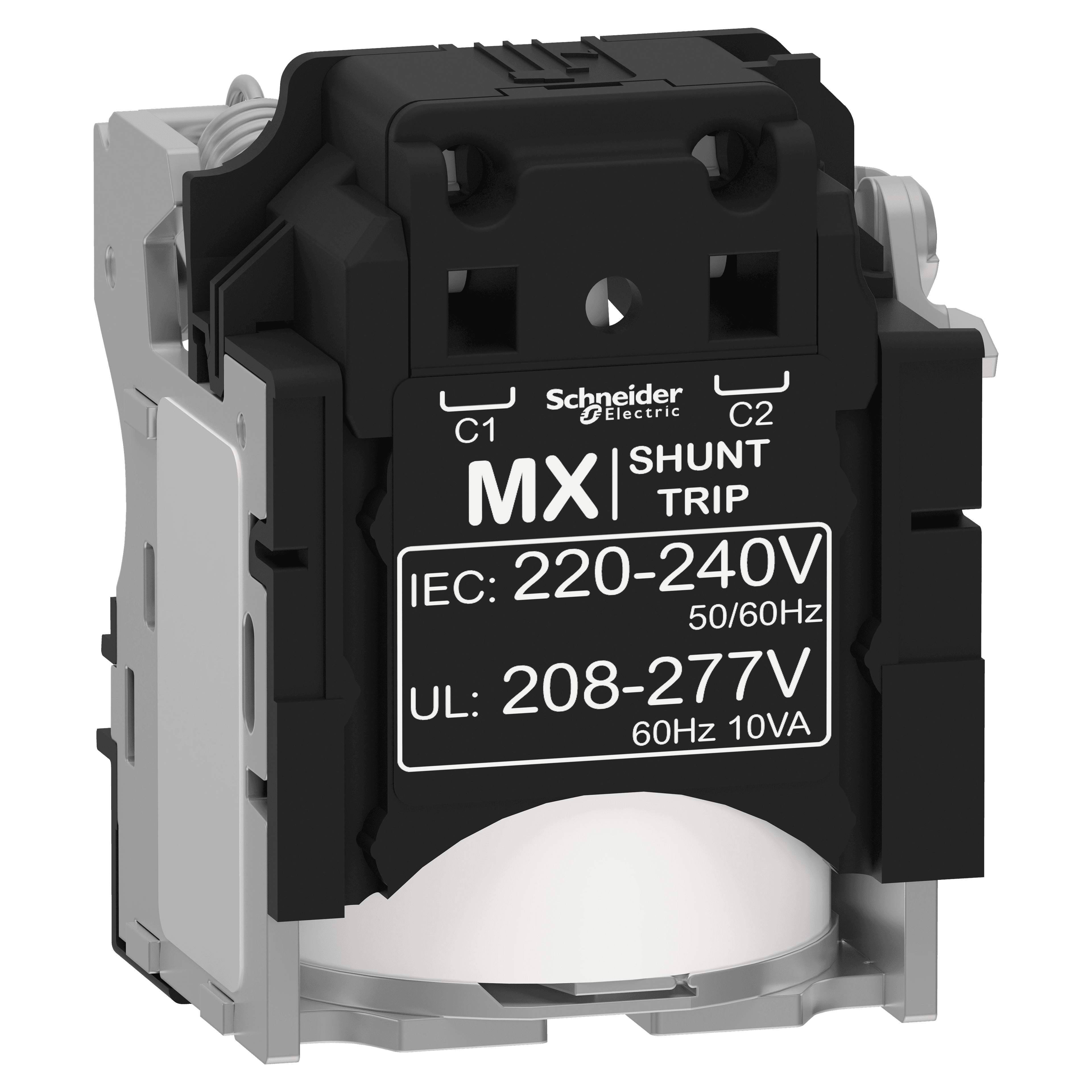

Schneider Electric ComPacT voltage release. Shunt trip release MX, ComPacT NSX, 220/240VAC 50/60Hz, 208/277VAC 60Hz, screwless spring terminal connections.
Shunt trip release MX, ComPacT NSX, 220/240VAC 50/60Hz, 208/277VAC 60Hz, screwless spring terminal connections. Genuine Schneider Electric product supplied by United Force.
| Range | ComPacT |
|---|---|
| Range of product | ComPact NSX100...250 · ComPacT NSX100...250 · ComPact NSX400...630 · ComPacT NSX400...630 · ComPact NSX100...250 DC · ComPacT NSX100...250 DC · ComPact NSX100...250 DC PV · ComPacT NSX100...250 DC PV · ComPact NSX400...630 DC · ComPacT NSX400...630 DC · ComPact NSX400...630 DC PV · ComPacT NSX400...630 DC PV |
| Device short name | MX |
| Product or component type | Voltage release |
| Device application | Control |
| Voltage release type | Opening coil · Shunt trip release |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz · 208...277 V AC 60 Hz |
| Range compatibility | ComPacT ComPacT NSX · ComPacT ComPacT NSX DC · ComPact ComPact NSX · ComPact ComPact NSX DC · EasyPact EasyPact CVS · PowerPact PowerPact Multistandard |
| Operating threshold | 0.7...1.1 x Un opening |
| Response time | 50 ms |
| Control signal type | Impulse · Maintained |
| Impulse duration | >= 20 ms |
| Supply inrush power | 10 VA |
| Auxiliary connection terminal | Spring 0.5…1.5 mm² (20 AWG...16 AWG) |
| Wire stripping length | 7 mm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 7.400 cm |
| Package 2 Width | 10.600 cm |
| Package 2 Length | 23.800 cm |
| Package 2 Weight | 1.240 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 60 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 7.876 kg |
| Warranty (in months) | 18 |
