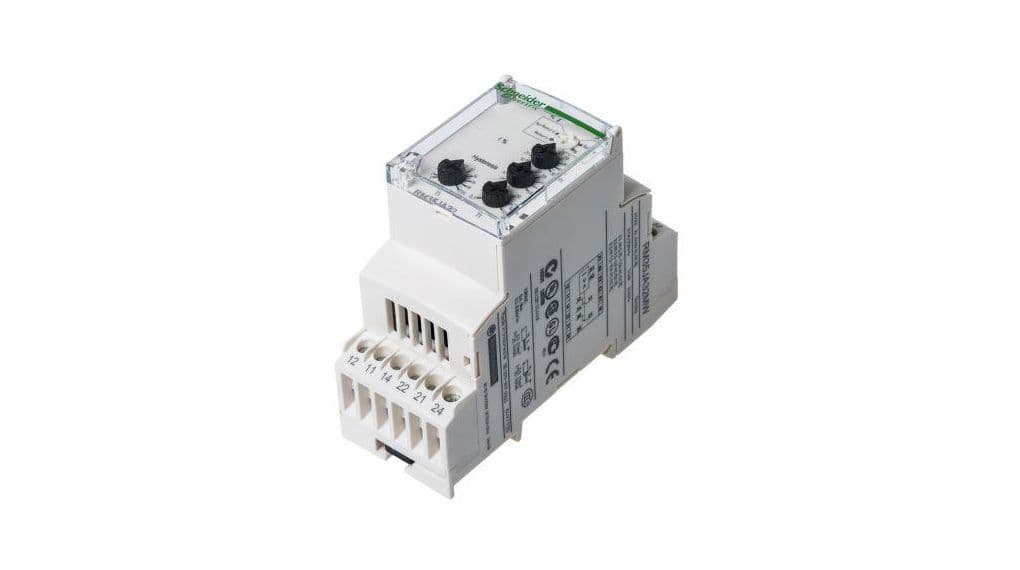

Schneider Electric current control relay. current control relay, Harmony Control Relays, 5A, 2CO, overcurrent or undercurrent detection, 0.15…15A, 24…240V AC DC.
current control relay, Harmony Control Relays, 5A, 2CO, overcurrent or undercurrent detection, 0.15…15A, 24…240V AC DC. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony Control Relays |
|---|---|
| Relay type | Current control relay |
| Product or component type | Current control relay |
| Relay name | RM35JA |
| Relay monitored parameters | Overcurrent or undercurrent detection |
| Time delay type | Adjustable 0.3...30 s, 0 + 10 % Tt- time delay upon fault · Adjustable 1...20 s, 0 + 10 % Ti- inhibition time delay upon startup |
| Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 5 A AC/DC |
| Maximum power consumption in VA | 3.5 VA AC |
| Measurement range | 150 mA...15 A current AC/DC |
| Utilisation category | AC-12 conforming to IEC 60947-5-1 · AC-13 conforming to IEC 60947-5-1 · AC-14 conforming to IEC 60947-5-1 · AC-15 conforming to IEC 60947-5-1 · DC-12 conforming to IEC 60947-5-1 · DC-13 conforming to IEC 60947-5-1 · DC-14 conforming to IEC 60947-5-1 |
| Contacts type and composition | 2 C/O |
| Reset time | 1500 ms time delay |
| Maximum switching voltage | 250 V AC/DC |
| Supply voltage limits | 20.4…264 V AC/DC |
| operating voltage tolerance | - 15 % + 10 % Un |
| Maximum power consumption in W | 0.6 W DC |
| Control circuit frequency | 40...70 Hz +/- 10 % |
| Resistance across terminals | 0.005 Ohm at E3-M terminals · 0.015 Ohm at E2-M terminals · 0.05 Ohm at E1-M terminals |
| Output contacts | 2 C/O |
| nominal output current | 5 A |
| Maximum measuring cycle | 30 ms measurement cycle as true rms value |
| Hysteresis | 5…50 % of threshold setting |
| delay at power up | 0.3 s |
| Measurement accuracy | +/- 10 % of the full scale value |
| Repeat accuracy | +/- 0.5 % for input and measurement circuit · +/- 2 % for time delay |
| Measurement error | 0.05 %/°C with temperature variation · 1 by volt over the whole range with voltage variation |
| Polarity | No DC |
| Threshold setting | 10...100 % |
| Marking | CE : EMC 89/336/EEC · CE : 73/23/EEC |
| Overvoltage category | III conforming to IEC 60664-1 |
| Insulation resistance | > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60255-5 · > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60664-1 · > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60255-5 · > 500 MOhm at 500 V DC between supply and relay output conforming to IEC 60664-1 · > 500 MOhm at 500 V DC between measurement and relay output conforming to IEC 60255-5 · > 1 MOhm at 500 V DC between supply and measurement conforming to IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60664-1 |
| Insulation | Between supply and measurement |
| Operating position | Any position without derating |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end · Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end · Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end · Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Polycarbonate |
| Local signalling | LED (green) for power ON · LED (yellow) for relay ON |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
