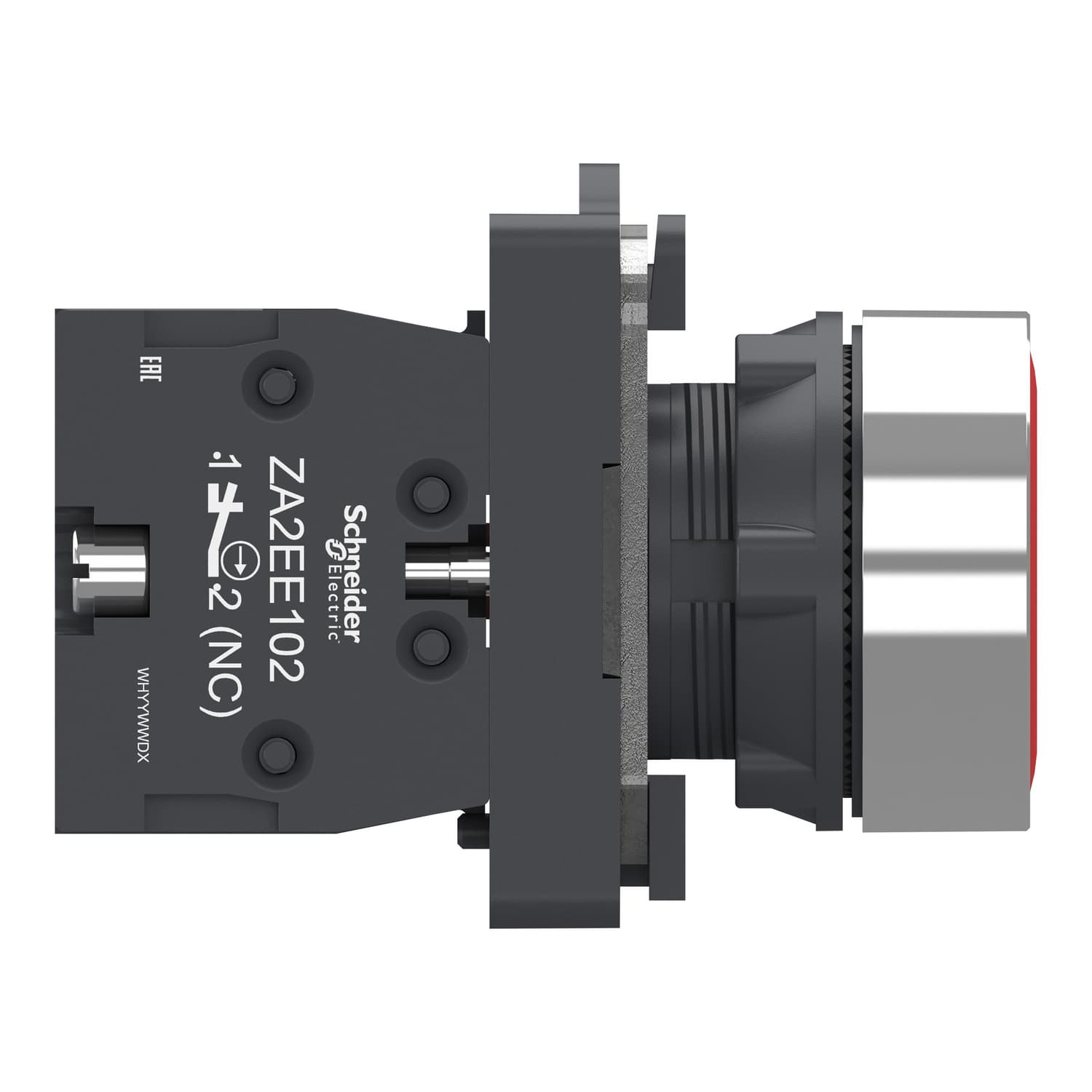

Schneider Electric complete push-button, rated 3 A. Complete push button, Easy Harmony XA2, plastic head, 22mm, red, 1NC, self-lock, unmarked.
Complete push button, Easy Harmony XA2, plastic head, 22mm, red, 1NC, self-lock, unmarked. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony XA2 |
|---|---|
| Device short name | XA2 |
| Product or component type | Complete push-button |
| Device presentation | Complete product |
| Component name | XA2A |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Protective treatment | TC |
| Operating position | Any position |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Operator profile | Red flush, unmarked |
| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| Mechanical durability | 500000 cycles |
| Connections - terminals | Screw clamp terminal, = 1 x 0.5 mm² · Faston terminals, connection size: 6.3 mm |
| Tightening torque | 0.8…1.2 N.m |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 · 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 · 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
| Electrical reliability | Λ < 10exp(-8) at 24 V and 5 mA conforming to IEC 60947-5-4 |
| Width | 30 mm |
| Height | 43 mm |
| Depth | 55 mm |
| Product weight | 0.035 kg |
| Cap/operator or lens colour | Red |
| Type of operator | Push-push |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK03 conforming to IEC 60529 |
| Standards | GB 14048.1 · IEC 60947-1 · GB 14048.5 · IEC 60947-5-1 |
| Product certifications | CCC · CE · UKCA |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 · 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 3 cm |
