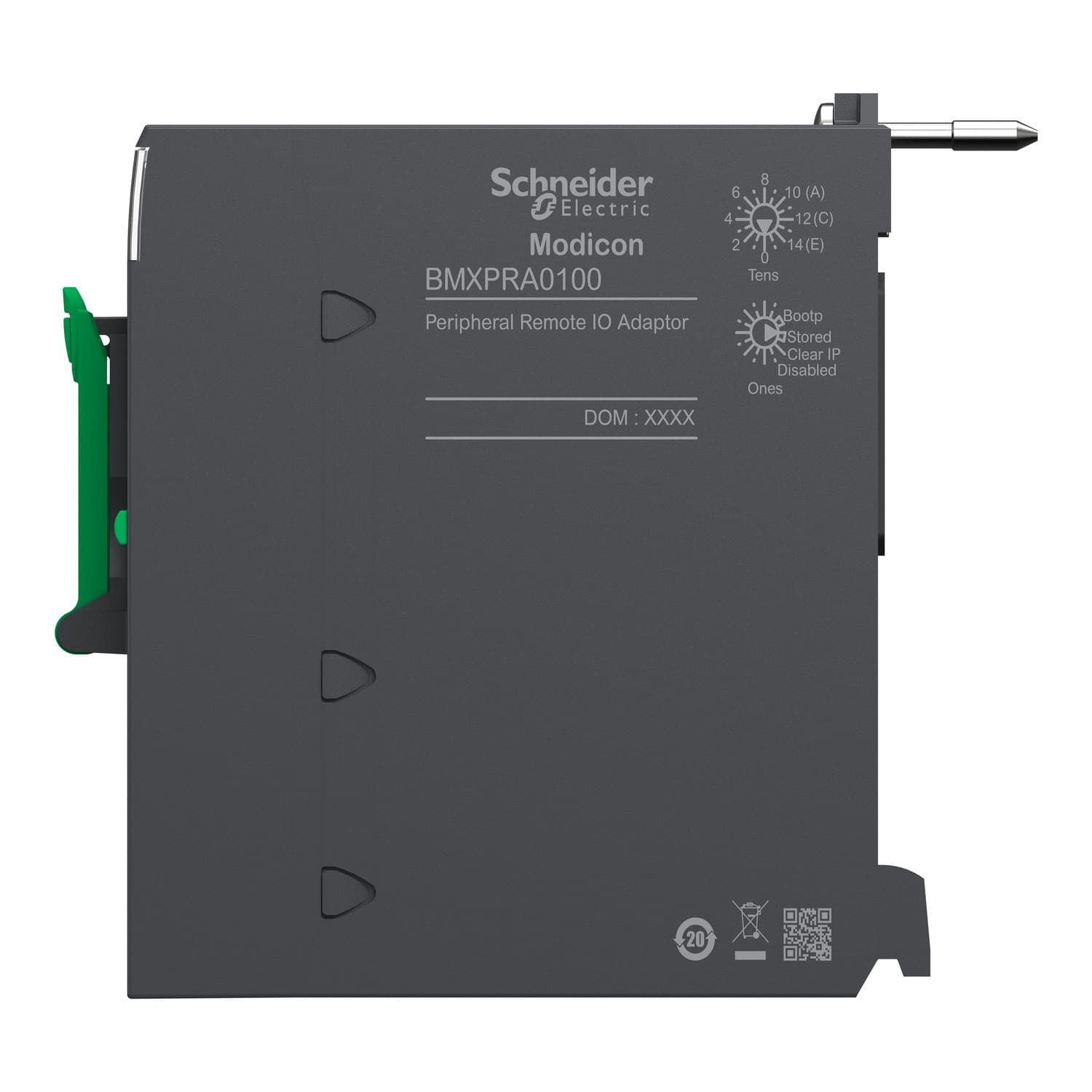

Schneider Electric peripheral remote i/o adaptor. peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet.
peripheral remote IO adaptor module, Modicon X80, max 1024 discrete with 256 analog IO, Ethernet. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Peripheral remote I/O adaptor |
| Number of port | 1 |
| Integrated connection type | Ethernet/IP for device network |
| Communication port protocol | Modbus TCP |
| Realtime clock | With |
| Memory capacity | 448 kB internal · 96 kB removable |
| Application structure | 1 master task |
| Local signalling | 1 LED (green) for module active (RUN) · 1 LED (red) for module error (ERR) · 1 LED (red) for external fault (I/O) · 1 LED (green) for activity on Ethernet network (ETH ACT) · 1 LED (red) for memory card fault (CARD ERR) · 1 LED (green) for Ethernet link diagnostics (STS) · 1 LED (green) for Ethernet network status (link) |
| Product compatibility | 0…1024 discrete I/O module · 0…256 analog I/O module · 0…2 Ethernet module |
| Average consumption in mA | 95 mA |
| Power dissipation in W | 2.3 W |
| Marking | CE |
| Module format | Standard |
| Maximum altitude transport | 3000 m |
| Relative humidity | 95 % without condensation |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility · 2014/34/EU - ATEX directive |
| Product certifications | CE · UL · CSA · RCM · EAC · Merchant Navy · ATEX zone 2/22 · IECEx zone 2/22 |
| Standards | IEC 61131-2 · IEC 61010-2-201 · UL 61010-2-201 · CSA C22.2 No 61010-2-201 · IACS E10 · IEC 61000-6-5, interface type 1 and type 2 · IEC 61850-3, location G · IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2 |
| IP degree of protection | IP20 |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Operating altitude | <= 2000 m |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.000 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 74.000 kg |
| Warranty (in months) | 18 |
