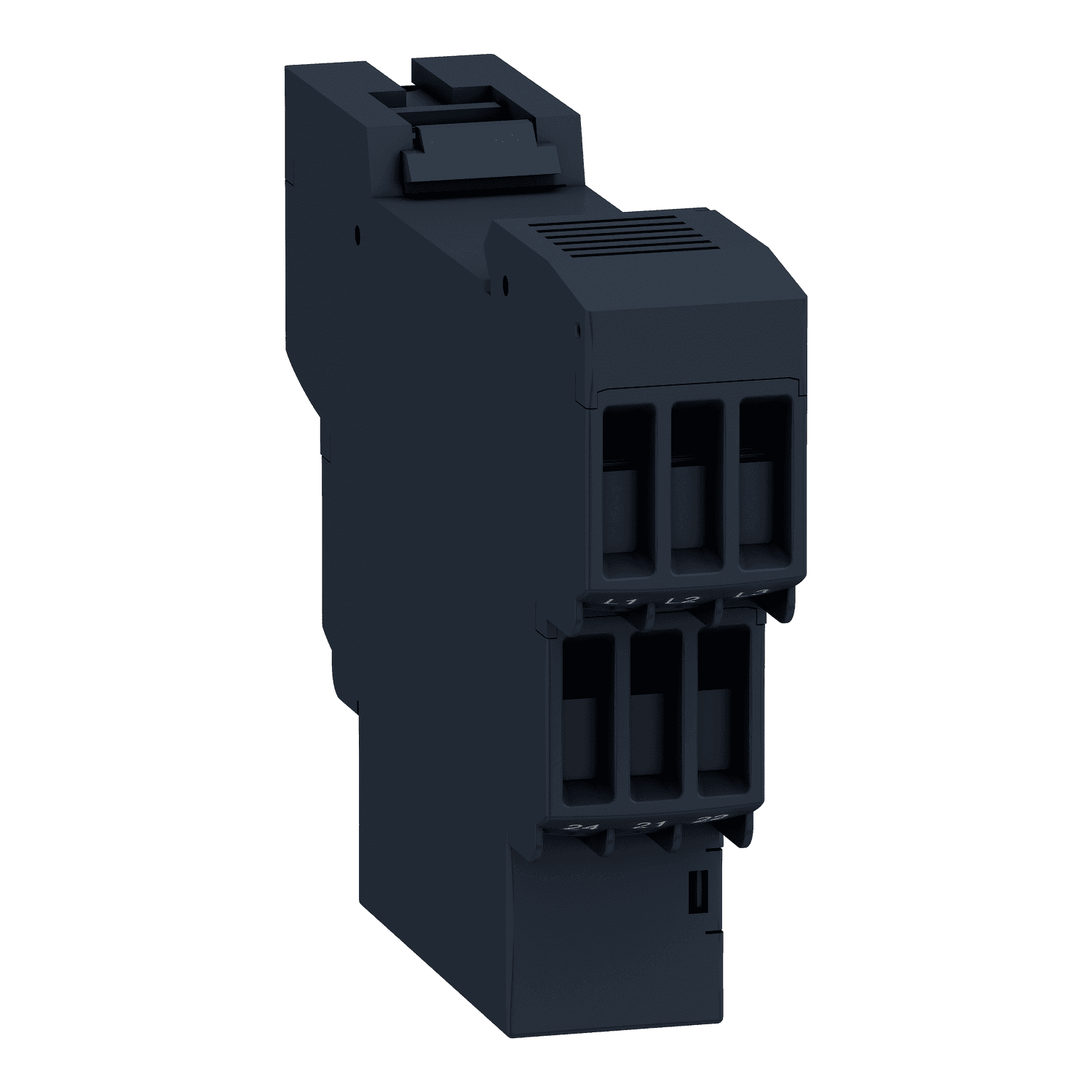

Schneider Electric 3-phase control relay. 3 phase control relay, Harmony Control Relays, 5A, 2CO, 208..480V AC.
3 phase control relay, Harmony Control Relays, 5A, 2CO, 208...480V AC. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony Control Relays |
|---|---|
| Relay type | Control relay |
| Relay name | RM17TG |
| Product or component type | 3-phase control relay |
| Relay monitored parameters | Phase sequence · Phase failure detection (2 or more phase cut) |
| Control type | Without test button |
| Contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 208...440 V |
| Product specific application | For 3-phase supply |
| [Us] rated supply voltage | , self-powered |
| Supply voltage limits | 183…484 V AC |
| Supply frequency | 50/60 Hz +/- 10 % |
| Power consumption in VA | 0…22 VA at 400 V AC 50 Hz |
| Measurement range | 208...480 V AC |
| Measurement voltage limits | 183…484 V AC |
| Voltage detection threshold | < 100 V AC |
| Time delay type | Without |
| Response time | <= 130 ms (in the event of a fault) |
| Power on Delay | 650 ms |
| Output contacts | 2 C/O |
| nominal output current | 5 A |
| Maximum switching voltage | 250 V AC |
| Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 mA at 5 V DC |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Utilisation category | AC-12 conforming to IEC 60947-5-1 · AC-13 conforming to IEC 60947-5-1 · AC-14 conforming to IEC 60947-5-1 · AC-15 conforming to IEC 60947-5-1 |
| Control circuit voltage limits | - 12 % + 10 % Un |
| Control circuit frequency | 50...60 Hz +/- 10 % |
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4 · Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 · Immunity for industrial environments conforming to IEC 61000-6-2 |
| Standards | IEC 60255-1 |
| Product certifications | GOST · C-Tick · UL · CSA · GL |
| Marking | CE |
| Directives | 73/23/EEC - low voltage directive · 89/336/EEC - electromagnetic compatibility |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -20…50 °C |
| Relative humidity | 95 % at 55 °C conforming to IEC 60068-2-30 |
| Vibration resistance | 0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6 · 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60255-21-1 |
| IP degree of protection | IP20 (terminals) conforming to IEC 60529 · IP30 (casing) conforming to IEC 60529 |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Overvoltage category | III conforming to IEC 60664-1 |
| Dielectric test voltage | 2 kV, 1 min AC 50 Hz |
| Insulation resistance | > 500 MOhm at 500 V DC conforming to IEC 60255-5 |
| [Ui] rated insulation voltage | 400 V conforming to IEC 60664-1 |
