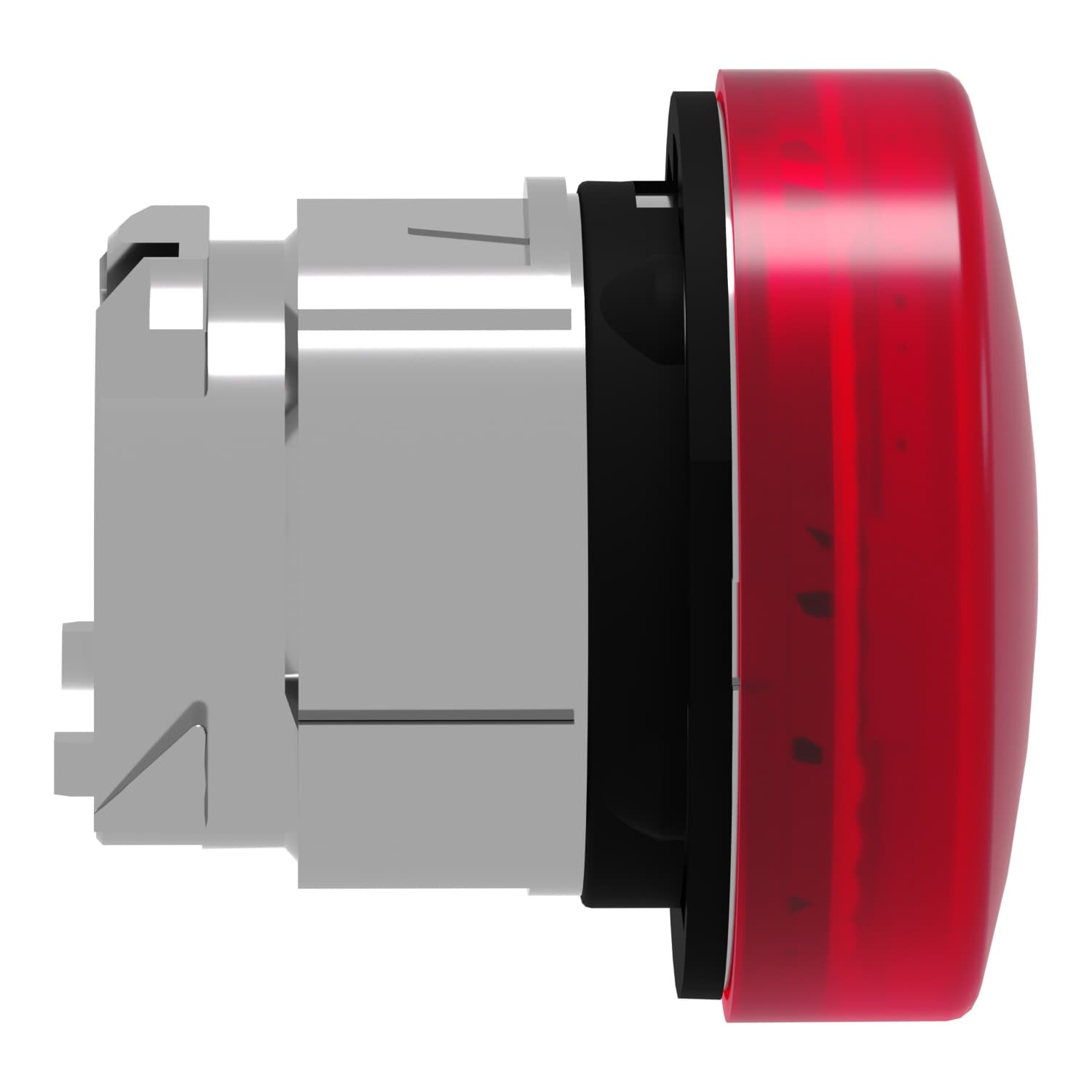

Schneider Electric head for pilot light. Head for pilot light, Harmony XB4, metal, red, 22mm, universal LED, plain lens.
Head for pilot light, Harmony XB4, metal, red, 22mm, universal LED, plain lens. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony XB4 |
|---|---|
| Product or component type | Head for pilot light |
| Product compatibility | Universal LED |
| Device short name | ZB4 |
| Bezel material | Chromium plated metal |
| Mounting diameter | 22 mm |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Red |
| Operator additional information | With plain lens |
| CAD overall width | 29 mm |
| CAD overall height | 29 mm |
| CAD overall depth | 30 mm |
| Product weight | 0.026 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Electrical composition code | P1 in front mounting with integral LED · P2 in front mounting with integral LED and transformer |
| Device presentation | Basic element |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Overvoltage category | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 · IP67 · IP69 · IP69K |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK06 conforming to IEC 50102 |
| Standards | IEC 60947-5-1 · IEC 60947-5-4 · UL 508 · IEC 60947-5-5 · JIS C8201-5-1 · CSA C22.2 No 14 · IEC 60947-1 · JIS C8201-1 |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 · 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 300 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 8.720 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 2400 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 79.964 kg |
| Warranty (in months) | 18 |
