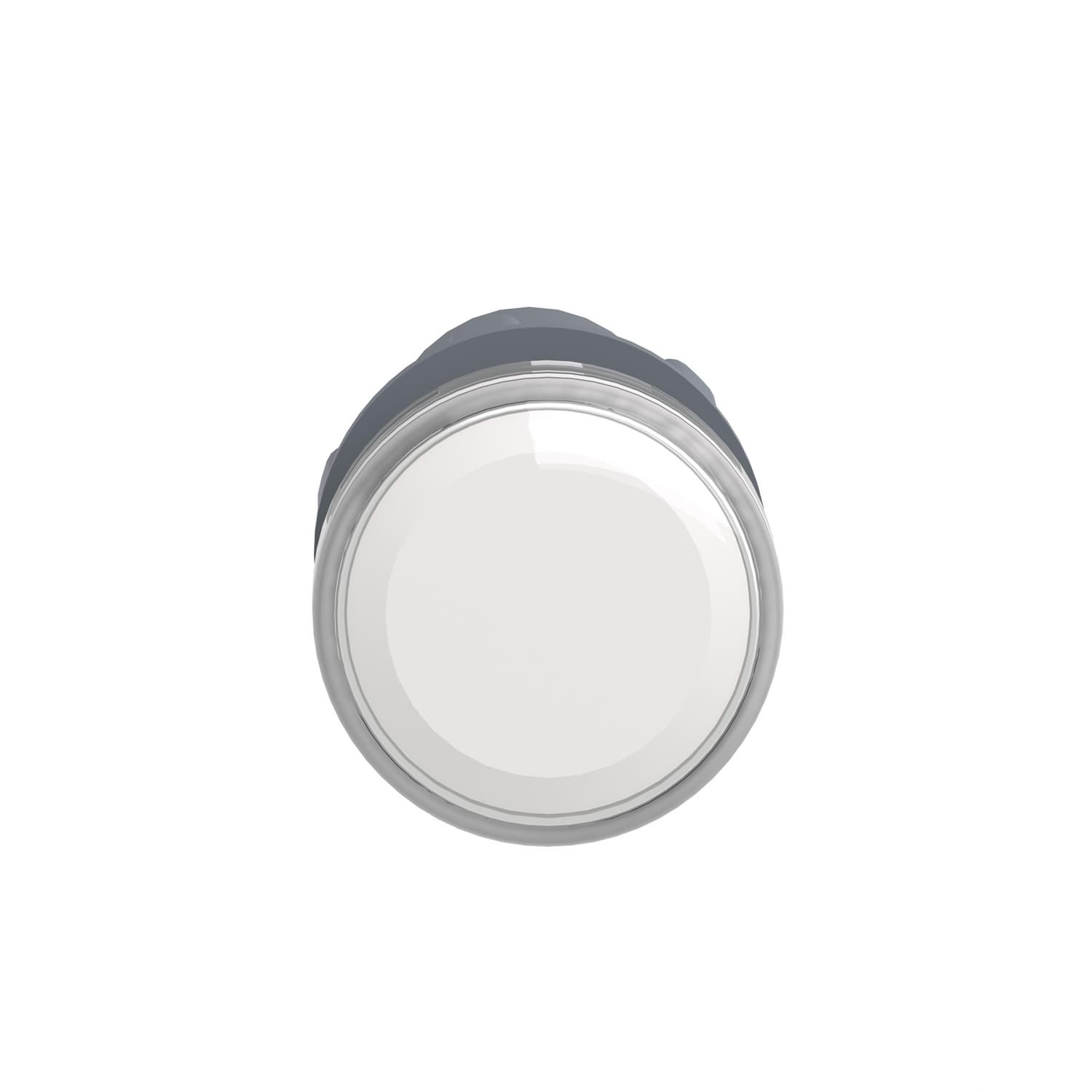

Schneider Electric monolithic pilot light. Monolithic pilot light, Easy Harmony XA2, plastic, white, 22mm, integral LED, screw clamp terminals, 220…230V AC, anti interference.
Monolithic pilot light, Easy Harmony XA2, plastic, white, 22mm, integral LED, screw clamp terminals, 220…230V AC, anti interference. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony XA2 |
|---|---|
| Product or component type | Monolithic pilot light |
| Device short name | XA2 |
| Mounting diameter | 22.5 mm |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | White |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 220...230 V AC 50/60 Hz |
| Terminals description ISO n°1 | (X1-X2)PL |
| Device mounting | Fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm · >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing mode | Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m) |
| Marking | CCC · CE |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 · Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips No 2 screwdriver · Slotted compatible with flat Ø 4 mm screwdriver · Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| Supply voltage limits | 0.8…1.2 V AC |
| Current consumption | <= 20 mA |
| Service life | 40000 h at rated voltage and 25 °C |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 53 mm |
| Product weight | 0.02 kg |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| Overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK05 |
| Standards | GB 14048.5 · IEC 60947-5-1 · IEC 60947-1 · GB 14048.1 · IEC 60529 · IEC 50102 |
| Product certifications | CE · CCC |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 8.000 cm |
| Package 2 Width | 22.000 cm |
| Package 2 Length | 29.500 cm |
| Package 2 Weight | 216.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 160 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
