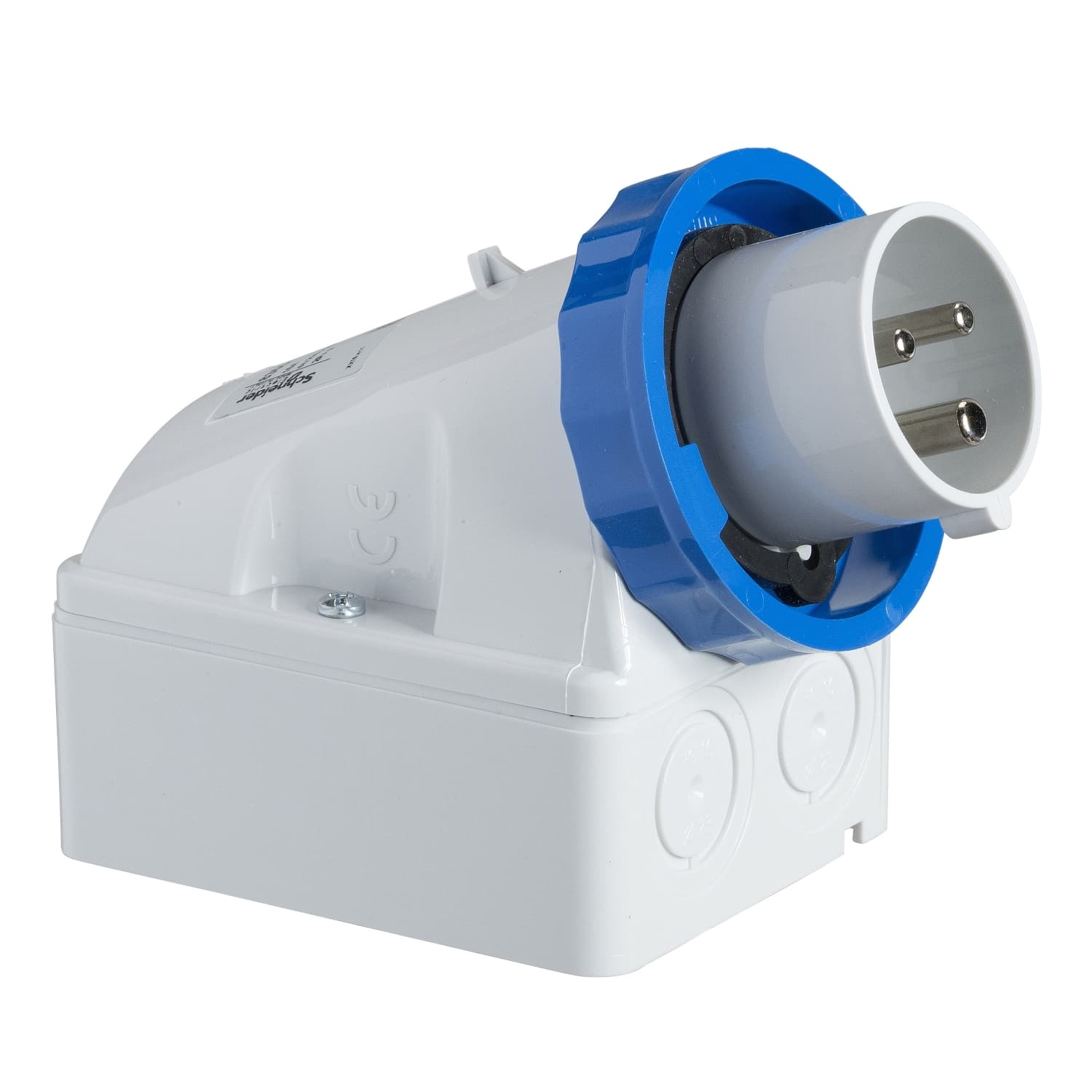

Schneider Electric Mureva plug, rated 16 A. Wall mounting plug, Mureva PK, 16A, 3P+N+E, 220V, IP67.
Wall mounting plug, Mureva PK, 16A, 3P+N+E, 220V, IP67. Genuine Schneider Electric product supplied by United Force.
| Range | Mureva |
|---|---|
| Product or component type | Plug |
| Device short name | Mureva plug |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Mounting mode | Wall-mounted |
| Plug, socket, control station shape | Angled |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 200...250 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 9 h |
| Plug, socket material | Self-extinguishing engineering polymer |
| Contacts material | Pins: nickel plated brass |
| Connections - terminals | Captive screws |
| Cable cross section | 1…4 mm² |
| cable entry | Cable gland |
| Thread type | Pg 21 |
| Product weight | 0.458 kg |
| Base dimension | 106 x 130 mm |
| Height | 134 mm |
| Width | 106 mm |
| Depth | 169 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Blue |
| Standards | EN 60309-1 · EN 60309-2 |
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Relative humidity | 50 % at 40 °C · 70 % at 30 °C · 90 % at 20 °C |
| Operating altitude | 2000 m |
| Ambient air temperature for operation | 35 °C ( 86400 s ) · -25…40 °C |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 12.700 cm |
| Package 2 Width | 27.400 cm |
| Package 2 Length | 27.400 cm |
| Package 2 Weight | 906.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 8 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.432 kg |
