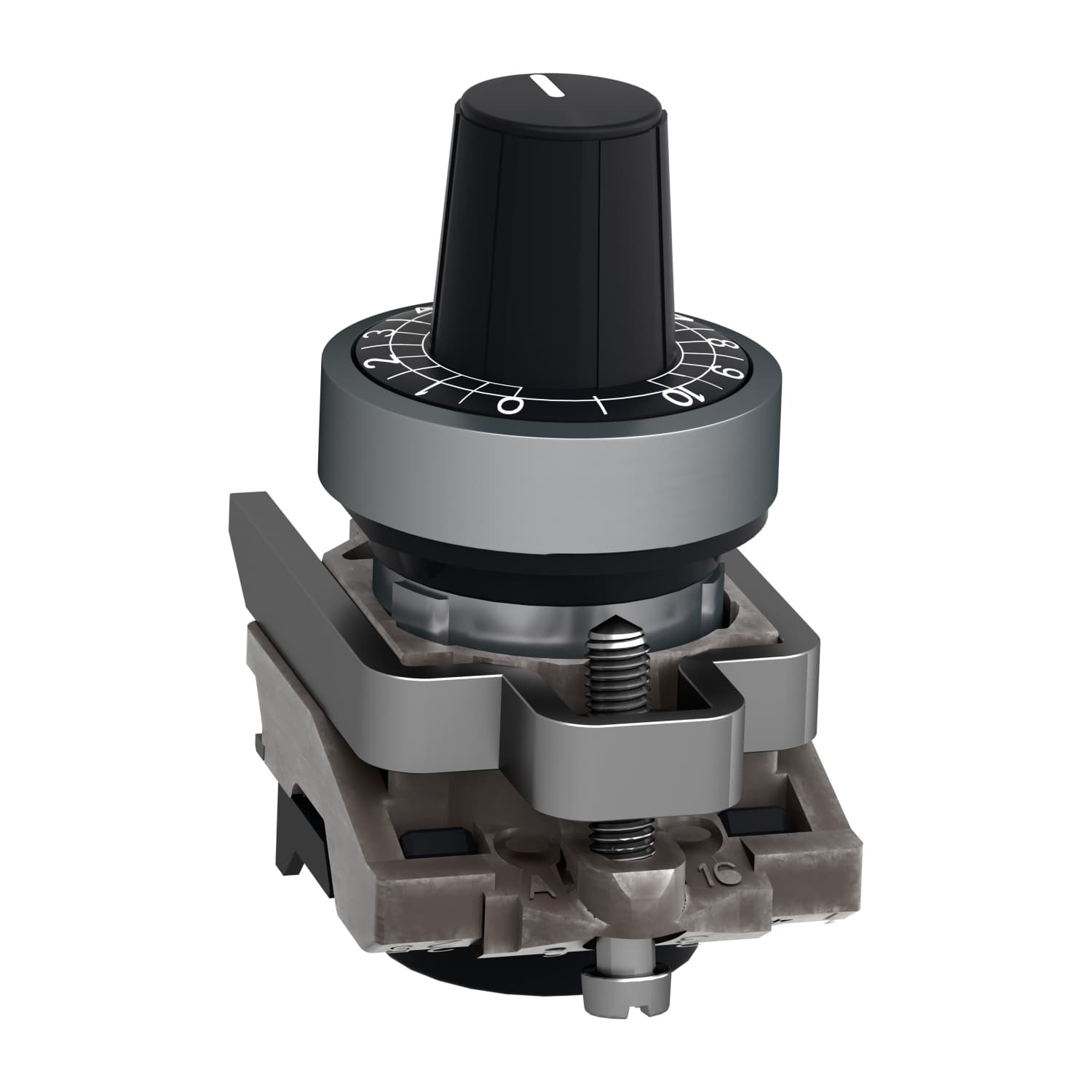

Schneider Electric head + mounting base for potentiometer. Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6mm shaft.
Potentiometer head, Harmony XB4, metal,black, 22mm, for use with 6mm shaft. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony XB4 |
|---|---|
| Product or component type | Head + mounting base for potentiometer |
| Device short name | ZB4 |
| Bezel material | Chromium plated metal |
| Mounting diameter | 22 mm |
| Product compatibility | For use with Ø 6 mm shaft |
| Sale per indivisible quantity | 1 |
| Head type | Standard |
| Product weight | 0.08 kg |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Shape of signaling unit head | Round |
| Operator profile | knurled knob, with (white) |
| Device presentation | Basic element |
| Protective treatment | TH |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| Electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Enclosure Type | UL type 4X/13 |
| IK degree of protection | IK03 conforming to IEC 50102 |
| Standards | UL 508 · IEC 60947-1 · JIS C8201-5-1 · IEC 60947-5-4 · IEC 60947-5-1 · CSA C22.2 No 14 · IEC 60947-5-5 · JIS C8201-1 |
| Product certifications | CSA · DNV · BV · LROS (Lloyds register of shipping) · UL listed |
| Vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 · 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 80 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 6.653 kg |
| Warranty (in months) | 18 |
