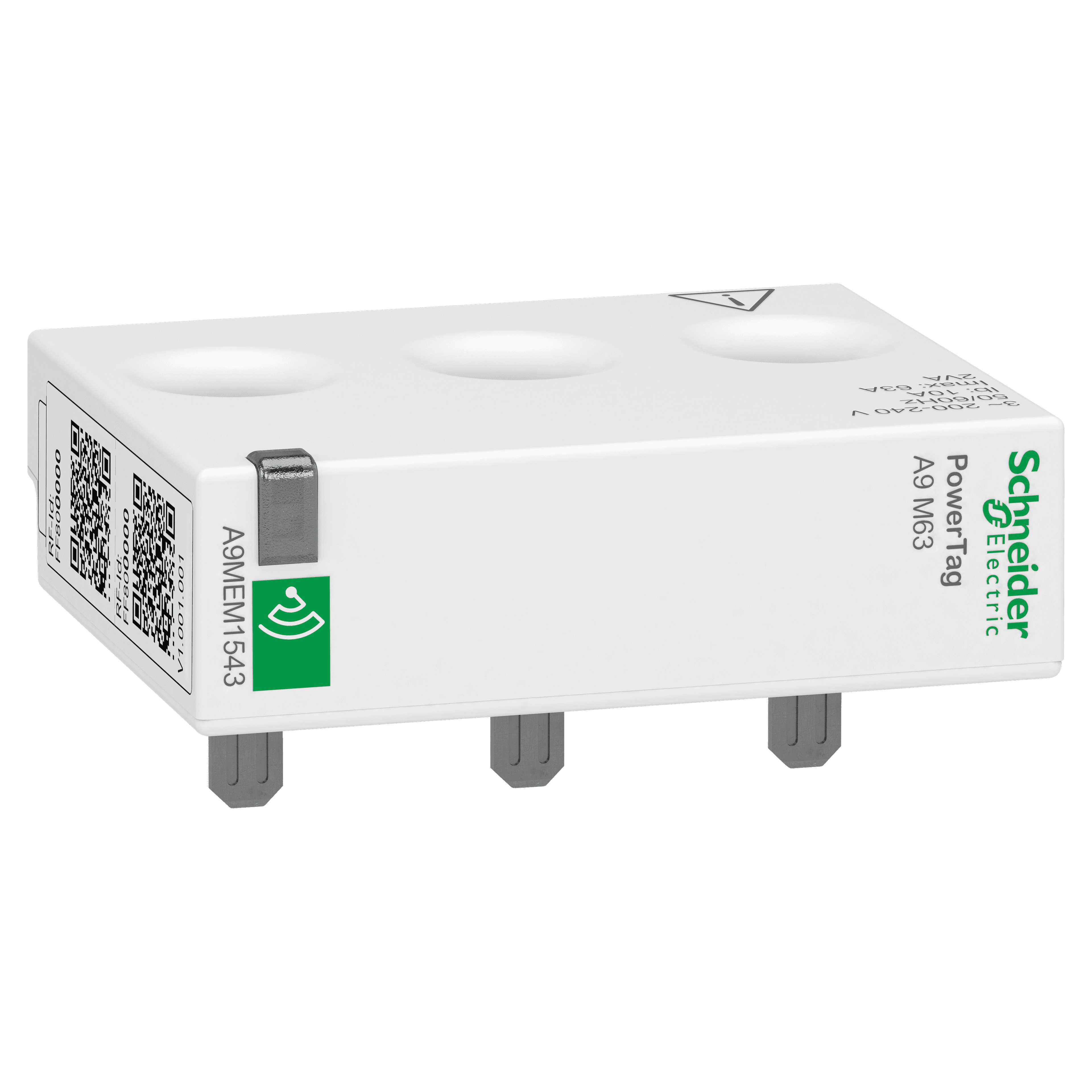

Schneider Electric PowerTag A9 M63 energy sensor. energy sensor, PowerTag Monoconnect 230V LL 63A 3P top and bottom position.
energy sensor, PowerTag Monoconnect 230V LL 63A 3P top and bottom position. Genuine Schneider Electric product supplied by United Force.
| Range of product | PowerLogic |
|---|---|
| Product name | PowerTag A9 M63 |
| Product or component type | Energy sensor |
| Poles | 3P |
| Maximum current [Imax] | 63 A |
| [Ib] Basic current | 10 A |
| Starting current | 40 mA |
| Saturation current | 130 A |
| Product specific application | Circuit monitoring · Cost allocation · Load monitoring · Overload alarm · Energy management |
| Concentrator compatibility | EcoStruxure Panel Server Entry · EcoStruxure Panel Server Universal · EcoStruxure Panel Server Advanced · Wiser hub generation 2 · Acti9 PowerTag Link · Acti9 PowerTag Link HD |
| Application | Buildings: breaker voltage monitoring · Buildings: cost allocation · Buildings: overload alarm |
| Range compatibility | Acti9 Acti9 iK60 · Acti9 Acti9 iC60 · Acti9 Acti9 iC60 RCBO · Multi9 Multi9 C60 |
| Type of measurement | Active power · Current · Voltage · Power factor · Active energy |
| Accuracy class | Class 1 current conforming to IEC 61557-12 · Class 0.5 voltage conforming to IEC 61557-12 · Class 1 active power conforming to IEC 61557-12 · Class 1 active energy conforming to IEC 61557-12 · Class 1 power factor conforming to IEC 61557-12 |
| Mounting location | Top or bottom |
| Mounting support | On circuit breaker |
| Product destination | Switchboard |
| Event management | Voltage loss with measured current at voltage loss |
| Transmission support medium | Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4 |
| Emission power | 10 mW |
| Form factor | Monoconnect |
| Mounting mode | By screws (terminals) |
| Electrical connection (voltage sensing & power supply) | Connector tooth |
| Cable cross section | 1 rigid cable 1.5…16 mm² · 2 stranded cable 1.5…2.5 mm² · 2 rigid cable 1.5…2.5 mm² · 1 stranded cable 1.5…16 mm² |
| supply voltage | 200...240 V AC, +/- 20 %, between phases |
| Network frequency | 50 Hz · 60 Hz |
| Maximum power consumption | 2 VA |
| Standards | IEC 61557-12 · IEC 61010-1 · IEC 61010-2-030 · IEC 61326-1 · ETSI EN 300 328 · ETSI EN 301 489-1 |
| Product certifications | IEC · DNV Marine |
| Height | 16.5 mm |
| Width | 54 mm |
| Depth | 43 mm |
| Product weight | 28 g |
| Colour | White (RAL 9003) |
| Compatibility code | PowerTag A9 M63 |
| Quality labels | CE |
| Directives | 2014/53/EU - radio equipment directive |
| Operating altitude | 0...2000 m |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Overvoltage category | III conforming to IEC 61010-1 |
| Measurement category | Category III conforming to IEC 61010-2-030 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| IK degree of protection | IK05 |
| Pollution degree | 3 |
