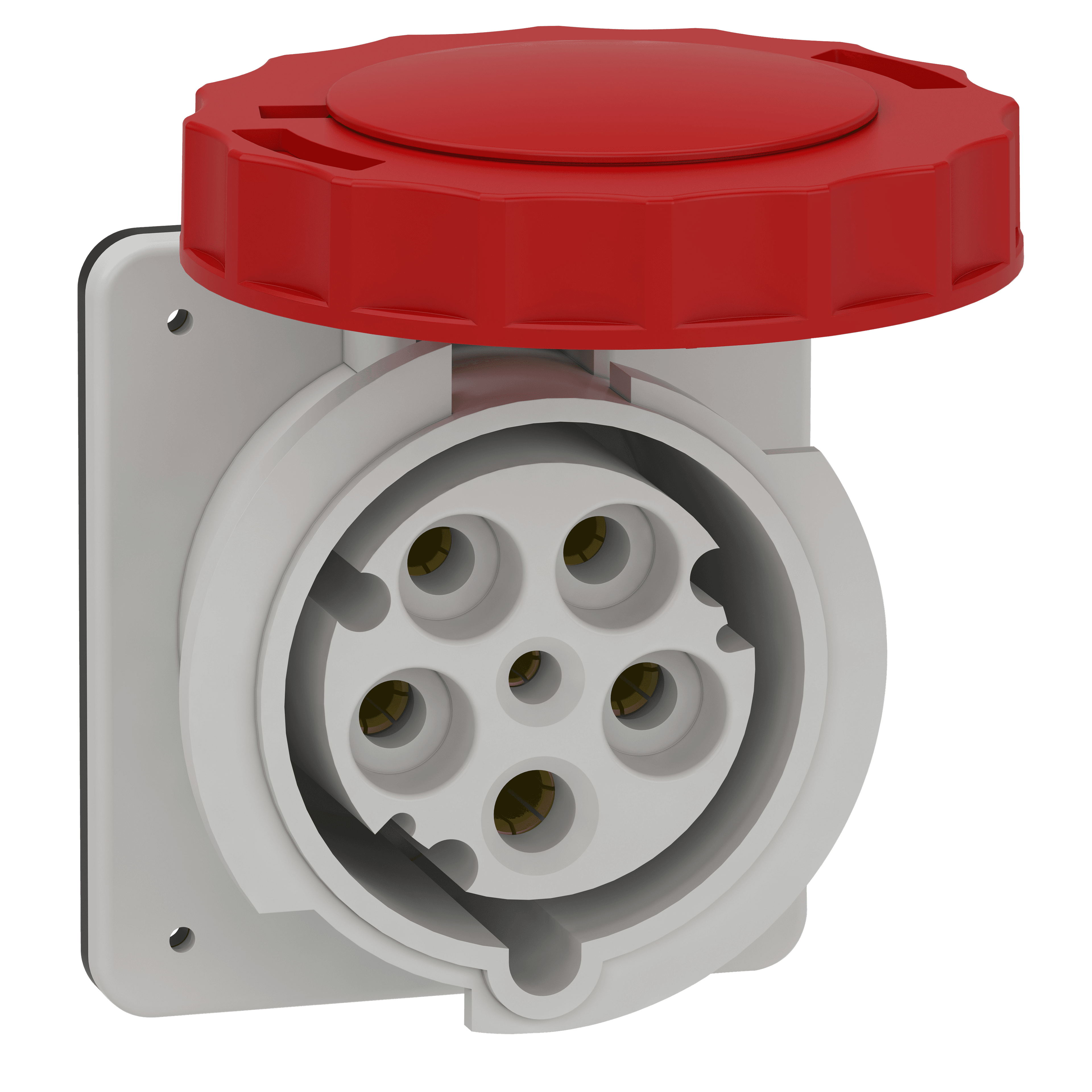

Schneider Electric Mureva socket, rated 63 A. Panel mounting socket, Mureva PK, straight, 63A, 3P+N+E, 400V, IP67.
Panel mounting socket, Mureva PK, straight, 63A, 3P+N+E, 400V, IP67. Genuine Schneider Electric product supplied by United Force.
| Range | Mureva |
|---|---|
| Product or component type | Socket |
| Device short name | Mureva socket |
| Plug, socket category | Low voltage |
| Poles description | 3P + N + E |
| Network type | AC |
| Outlet standard | Industrial |
| Mounting mode | Panel-mounted |
| Plug, socket, control station shape | Straight |
| [In] rated current | 63 A |
| [Ue] rated operational voltage | 380...415 V |
| Network frequency | 50/60 Hz |
| Ground lug clockwise position | 6 h |
| Plug, socket material | Housing: self-extinguishing engineering polymer |
| Contacts material | Pins: stainless steel · Sleeves: nickel plated brass · Springs: stainless steel |
| Connections - terminals | Captive screws, completely loosened |
| Cable cross section | 6…25 mm² |
| Product weight | 0.52 kg |
| Base dimension | 100 x 107 mm |
| Height | 107 mm |
| Width | 108 mm |
| Depth | 113 mm |
| Colour | Grey (RAL 7035) |
| Voltage colour | Red |
| Standards | EN 60309-1 · EN 60309-2 |
| IP degree of protection | IP67 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity | 50 % at 40 °C · 70 % at 30 °C · 90 % at 20 °C |
| Ambient air temperature for operation | 35 °C ( 86400 s ) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 10.149 kg |
| Warranty (in months) | 18 |
