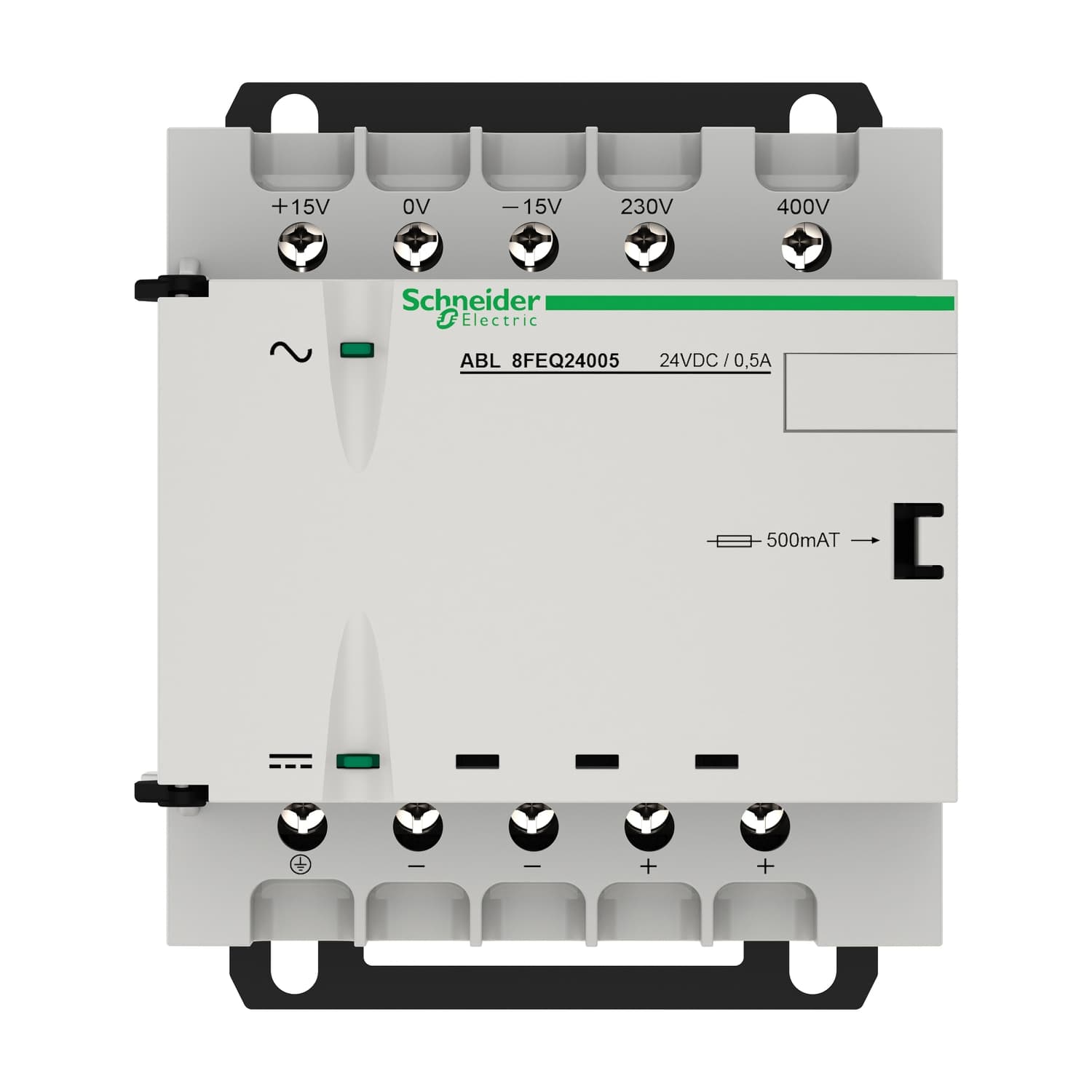

Schneider Electric power supply. rectified and filtered power supply - 1 or 2-phase - 400 V AC - 24 V - 0.5 A.
rectified and filtered power supply - 1 or 2-phase - 400 V AC - 24 V - 0.5 A. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon Rectified |
|---|---|
| Product or component type | Power supply |
| Power supply type | Rectified and filtered |
| Rated power in W | 12 W |
| Nominal input voltage | 230 V AC single phase, terminal(s): N-L1 · 400 V AC phase to phase, terminal(s): L1-L2 |
| Output voltage | 24 V DC |
| Power supply output current | 0.5 A |
| Anti-harmonic filter | Low frequency harmonic currents |
| Product certifications | UL 508 · cULus · KC · EAC |
| Network frequency limits | 47…63 Hz |
| Input voltage limits | 207...253 V · 360...440 V |
| Power Factor | 0.656 at 230 V · 0.881 at 400 V |
| Efficiency | 71 % |
| Power dissipation in W | 3.48 W |
| Output coupling | Parallel · Series |
| Output protection type | Against overload and short-circuits, protection technology: internal fuse, 0.5 A, 5 x 20 mm, T curve · Against overvoltage, protection technology: 2 J peak limiter |
| Hold-up time | 17 ms |
| Status LED | 1 LED (green) output voltage · 1 LED (orange) input voltage |
| Residual ripple | <= 1200 MV |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 5 x 2.5...5 x 4 mm² 14 AWG...11 AWG · For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² 14 AWG...11 AWG · For output connection: screw type terminals, connection capacity: 4 x 2.5...4 x 4 mm² 14 AWG...11 AWG |
| Depth | 123.0 mm |
| Height | 108 mm |
| Width | 87 mm |
| Product weight | 1.28 kg |
| Compatibility code | ABL8F |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…80 °C |
| Relative humidity | 0…95 % without condensation or dripping water |
| Operating altitude | 3000 m |
| Vibration resistance | 0.05 mm (f= 47…57 Hz) conforming to IEC 60068-1 · 0.7 gn (f= 13.9…47 Hz) conforming to IEC 60068-1 · 1 gn (f= 57…150 Hz) conforming to IEC 60068-1 · 1 mm (f= 3…13.9 Hz) conforming to IEC 60068-1 |
| Safety class | Class I conforming to VDE 0106-1 |
| Dielectric strength | 2000 V between input and ground · 4600 V between input and output · 500 V between output and ground |
| Other environmental characteristic | EMC conforming to IEC 62041 · Safety conforming to EN/IEC 61558-2-6 · Safety conforming to UL 508 · Safety conforming to UL 60950-1 · EMC conforming to IEC 61000-3-2 |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 75.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 61.210 kg |
| Warranty (in months) | 18 |
