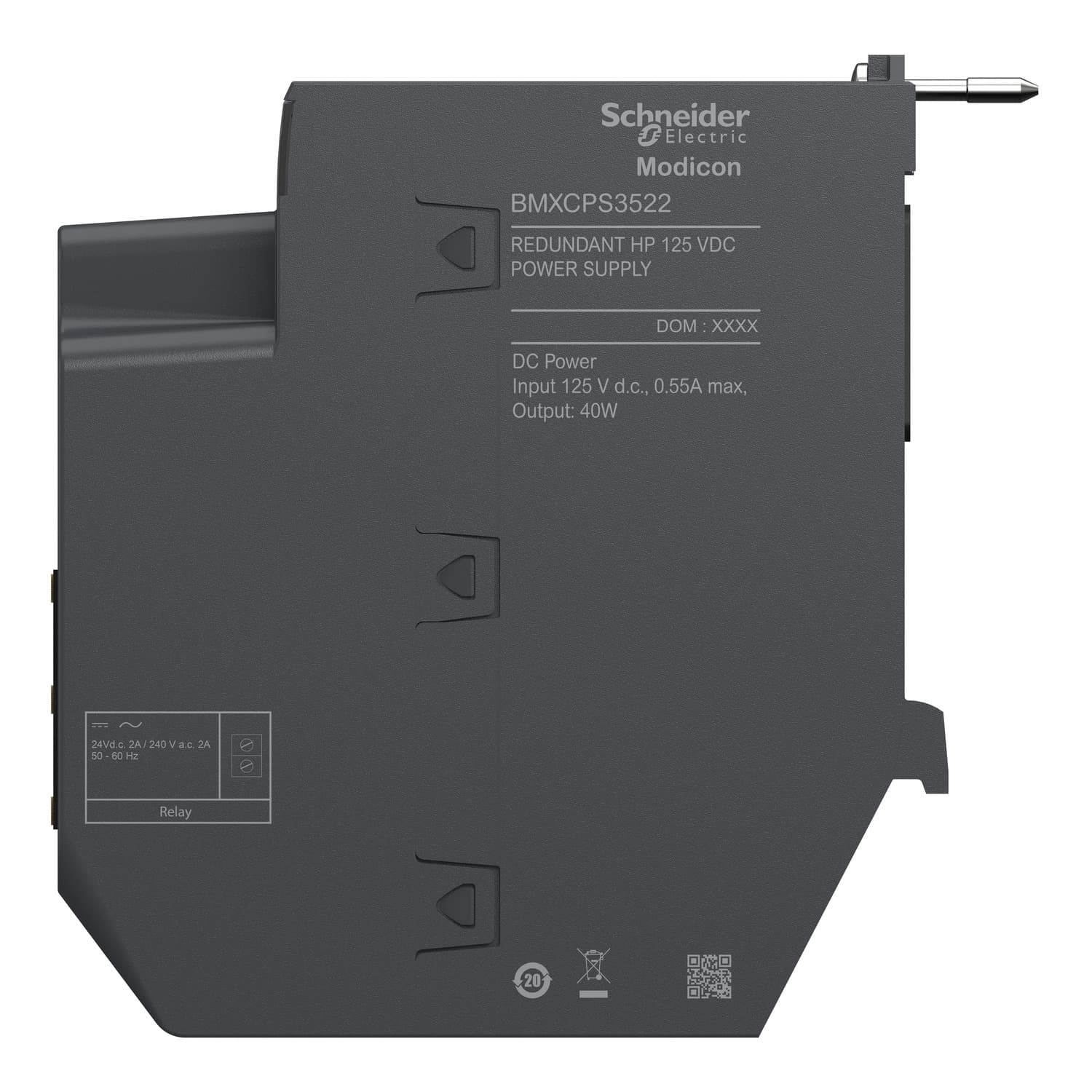

Schneider Electric power supply module. redundant power supply module, Modicon X80, 125V DC.
redundant power supply module, Modicon X80, 125V DC. Genuine Schneider Electric product supplied by United Force.
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Power supply module |
| backplane compatibility | All backplane |
| advanced diagnostics available via network | Uptime duration · Temperature sensing · Remaining lifetime · Redundancy information · Redundancy test |
| Primary voltage | 125 V |
| Supply circuit type | DC |
| Secondary power | 18 W 3.3 V DC at 0…60 °C I/O module logic power supply · 40 W 24 V DC at 0…60 °C I/O module power supply and processor if 3.3 V not loaded |
| Primary voltage limit | 100...150 V |
| Input current | 600 mA 125 V |
| Inrush current | 60 A 125 V |
| I²t on activation | 2.5 A².s 125 V |
| It on activation | 0.09 A.s 125 V |
| MTBF reliability | 830000 H |
| Protection type | Internal fuse not accessible for primary circuit · Overload protection for secondary circuit · Overvoltage protection for secondary circuit · Short-circuit protection for secondary circuit |
| Current at secondary voltage | 1.67 A 24 V DC I/O module power supply and processor · 5 A 3.3 V DC I/O module logic power supply |
| Maximum power dissipation in W | 8.5 W |
| Status LED | 1 LED (green) presence of voltages (OK) · 1 LED (green) redundancy OK · 1 LED (green) power supply status |
| Control type | RESET push-button cold restart |
| Electrical connection | 1 connector 2 pin(s)alarm relay · 1 connector 5 pin(s)line supply, protective earth |
| Insulation resistance | >= 100 MOhm primary/ground · >= 100 MOhm primary/secondary |
| Product weight | 0.61 kg |
| Immunity to microbreaks | 1 ms |
| Dielectric strength | 1500 V primary/secondary I/O module logic power supply · 1500 V primary/secondary I/O module power supply and processor · 2300 V primary/secondary sensor power supply · 1500 V primary/ground |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive · 2014/30/EU - electromagnetic compatibility |
| Environmental characteristic | 3C3 conforming to IEC 60721-3-3 · 3C4 conforming to IEC 60721-3-3 |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % without condensation |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.22 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 70 cm |
| Package 3 Width | 60 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 43.2 kg |
| Warranty (in months) | 18 |
