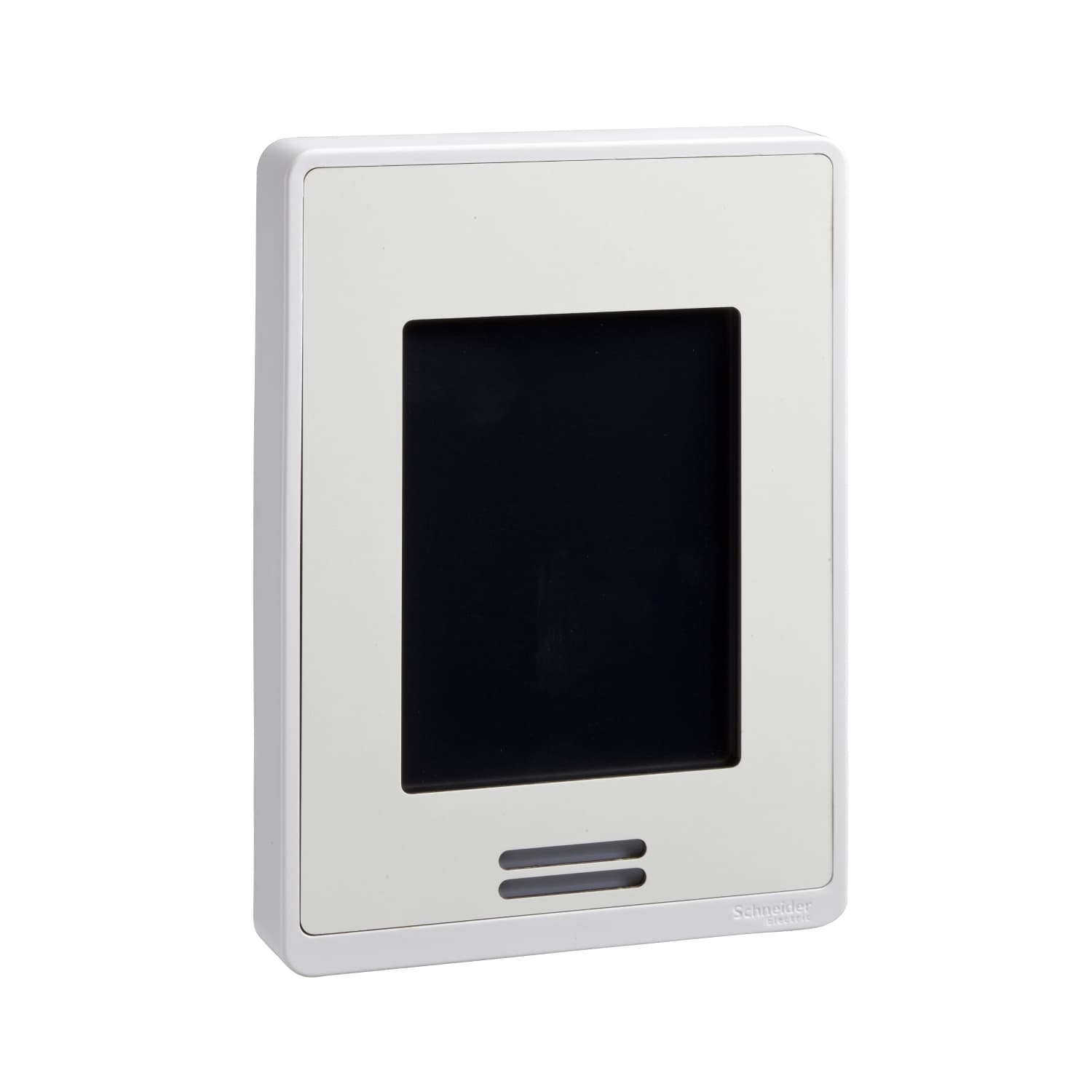

Schneider Electric SE8000 Series room controller, rated 4 A. Hotel Line-Voltage Fan Coil Room Controller: BACnet MS/TP, ZigBee Embedded, RH sensor & control, IP ready, PIR motion sensor, White Case/Fascia.
Hotel Line-Voltage Fan Coil Room Controller: BACnet MS/TP, ZigBee Embedded, RH sensor & control, IP ready, PIR motion sensor, White Case/Fascia. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| AWG gauge | 24 AWG...18 AWG |
|---|
| Width | 86 mm |
|---|
| Market segment | Lodging · Small commercial · Hotel · Buildings · Healthcare · Non-critical buildings · Office · Residential · School |
|---|
| Device application | Line voltage fan coil |
|---|
| Product weight | 340 g |
|---|
| Product or component type | Room controller |
|---|
| Product name | SE8000 Series |
|---|
| Device short name | SER8300 |
|---|
| Height | 120 mm |
|---|
| Directives | 2014/30/EU - electromagnetic compatibility · 2014/35/EU - low voltage directive · 2014/53/EU - radio equipment directive |
|---|
| [In] rated current | 4 A |
|---|
| Housing colour | White |
|---|
| Ambient air temperature for storage | -30…50 °C |
|---|
| Depth | 25 mm |
|---|
| Ambient air temperature for operation | 0…50 °C |
|---|
| Measurement accuracy | Temperature: +/- 0.5 °C, · Humidity: +/- 5 %, 20...80 % RH (non-condensing) · Humidity: +/- 10 %, 10...20 % (non-condensing) · Humidity: +/- 10 %, 80...90 % (non-condensing) |
|---|
| Information displayed | Temperature: - 40...122 °F |
|---|
| Network frequency | 50 Hz · 60 Hz |
|---|
| Communication port protocol | BACnet MS/TP · Modbus RTU · Zigbee Pro |
|---|
| Relative humidity | 0…95 % |
|---|
| Temperature setting range | 12…37.5 °C cooling · 4.5…32 °C heating |
|---|
| Sensor type | 10 kOhm T2 NTC thermistor temperature · Space RH sensor humidity |
|---|
| Output current | 1 A relay output · 3 A relay output (inrush) |
|---|
| [Us] rated supply voltage | 7 V DC 50/60 Hz +/- 10 % |
|---|
| Input type | 2 x dry contact · 5 x analog |
|---|
| Output voltage | 24 V AC for relay output · 0...10 V DC for analog output |
|---|
| Output type | 5 xrelay output · 4 xuniversal |
|---|
| Standards | EN/IEC 60730-1 · EN/IEC 60730-2-9 · EN/IEC 60730-2-13 · CSA E60730-2-9 · UL 60730-2-9 · UL 60730-2-13 · ICES-003 · FCC part 15 Subpart B · ETSI EN 300 328:v2.1.1 · ETSI EN 301 489-1:v1.9.2 · FCC part 15 Subpart C · ETSI EN 301 489-17:v2.2.1, 2012 · RSS 247 |
|---|
| Humidity setting range | 30…95 % |
|---|
| Input voltage | 0...10 V DC |
|---|
| Range | SpaceLogic |
|---|
| Economizer | No |
|---|
| Humidity control | Yes |
|---|
| PIR cover | Yes |
|---|
| Scheduling | Yes |
|---|
| surface treatment | Untreated |
|---|
| Surface finish | Matt |
|---|
| Function available | Fan control · HVAC control · Available with CO2/RH/T · Brightness sensor · Changes can be made directly over display · Code lock function · Easily configurable · Firmware update by USB |
|---|
| Warranty (in months) | 18 |
|---|
