Schneider Electric VigiPacT residual current protection relay. Residual current protection relay, VigiPacT RH99P, 30mA-30A, 12/24VAC 50/60Hz, 12/48VDC, front panel mounting.
Residual current protection relay, VigiPacT RH99P, 30mA-30A, 12/24VAC 50/60Hz, 12/48VDC, front panel mounting. Genuine Schneider Electric product supplied by United Force.
Technical specifications
| Range | VigiPacT |
|---|
| Device short name | RH99P |
|---|
| Product or component type | Residual current protection relay |
|---|
| Relay application | Protection relay |
|---|
| Mounting support | Front panel |
|---|
| Earth-leakage protection class | Type A |
|---|
| Type of setting | Selector |
|---|
| Residual earth-leakage sensitity adjustment type | Adjustable 9 settings |
|---|
| Earth-leakage sensitivity | 0.03…30 A |
|---|
| Earth-leakage time delay | Instantaneous for 0.03 A · Adjustable 9 settings 0…4.5 s for 0.03…30 A |
|---|

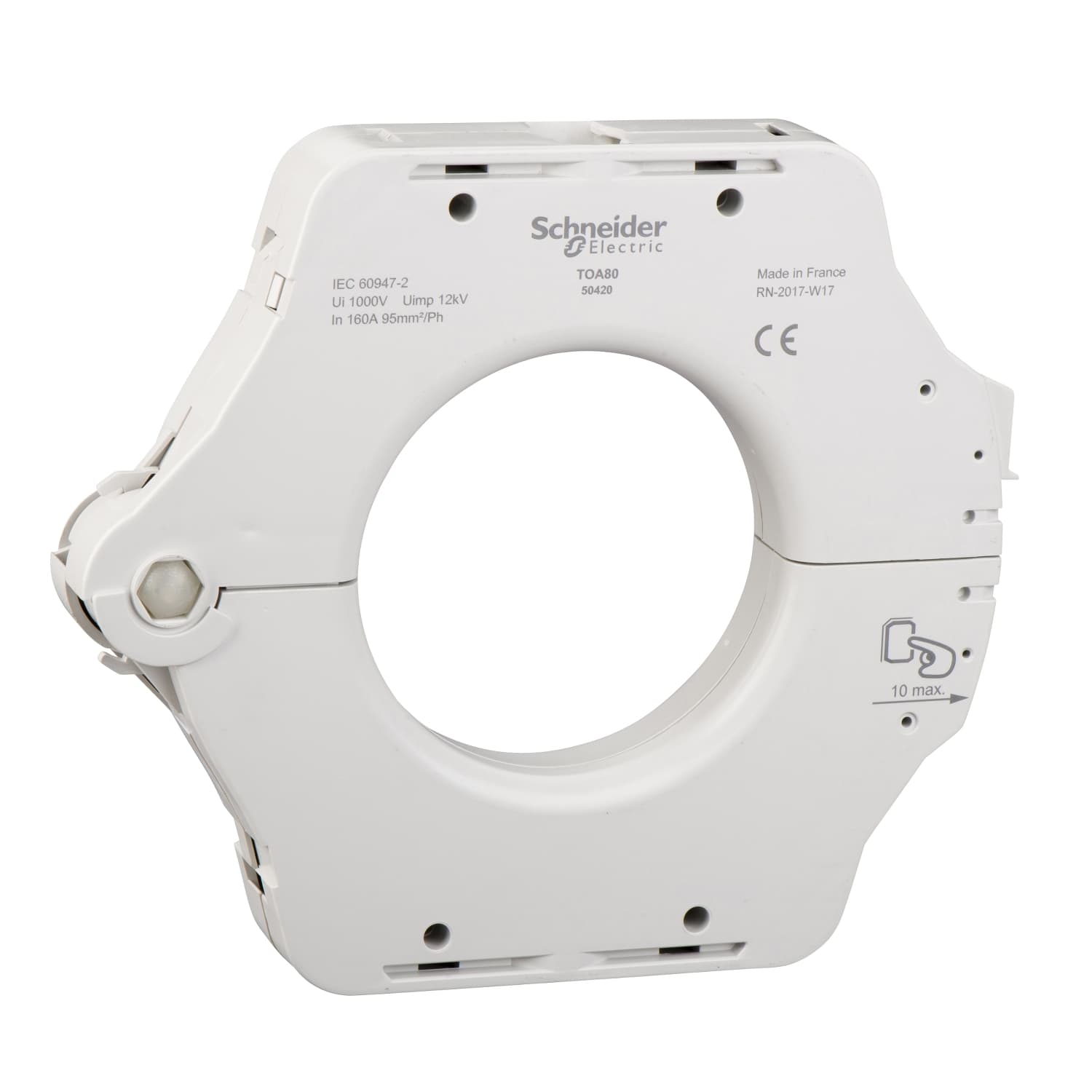

| Current sensors compatibility | VigiPacT TOA earth leakage current sensor · VigiPacT A earth leakage current sensor · VigiPacT L earth leakage current sensor |
|---|
| [Ithe] conventional enclosed thermal current | 8 A |
|---|
| Minimum load | 10 mA at 12 V |
|---|
| [Us] rated supply voltage | 12...24 V AC 50/60 Hz 55...120 % · 12...48 V DC 55...120 % |
|---|
| Power consumption in VA | 4 VA |
|---|
| Monitored distribution system | 1000 V - AC at 50/60 Hz (maximum) · 1000 V - AC at 400 Hz (maximum) |
|---|
| Earthing system | IT · TN-S · TT |
|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|
| Reset | Manual reset |
|---|
| Test function | Remote test · Local |
|---|
| Monitoring | Electronics (continuous) · Power supply (continuous) · Relay/sensor link (continuous) |
|---|
| Type of measurement | Earth fault current internal measurement, range: 80...100 % |
|---|
| Tamperproof of settings | Protected by sealable cover |
|---|
| Connections - terminals | Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² flexible 24 AWG...12 AWG · Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² rigid 24 AWG...12 AWG · Auxiliary power supply: terminal block cable(s) 0.25…2.5 mm² flexible 24 AWG...12 AWG · Fault: terminal block cable(s) 0.2…2.5 mm² flexible 24 AWG...12 AWG · Fault: terminal block cable(s) 0.2…2.5 mm² rigid 24 AWG...12 AWG · Fault: terminal block cable(s) 0.25…2.5 mm² flexible 24 AWG...12 AWG · Relay test and fault reset: terminal block cable(s) 0.2…2.5 mm² flexible 24 AWG...12 AWG · Relay test and fault reset: terminal block cable(s) 0.2…2.5 mm² rigid 24 AWG...12 AWG · Relay test and fault reset: terminal block cable(s) 0.25…2.5 mm² flexible 24 AWG...12 AWG · Sensor: terminal block cable(s) 0.2…2.5 mm² flexible 24 AWG...12 AWG · Sensor: terminal block cable(s) 0.2…2.5 mm² rigid 24 AWG...12 AWG · Sensor: terminal block cable(s) 0.25…2.5 mm² flexible 24 AWG...12 AWG · Voltage presence: terminal block cable(s) 0.2…2.5 mm² flexible 24 AWG...12 AWG · Voltage presence: terminal block cable(s) 0.2…2.5 mm² rigid 24 AWG...12 AWG · Voltage presence: terminal block cable(s) 0.25…2.5 mm² flexible 24 AWG...12 AWG |
|---|
| Wire stripping length | Auxiliary power supply: 7 mm · Fault: 7 mm · Relay test and fault reset: 7 mm · Sensor: 7 mm · Voltage presence: 7 mm |
|---|
| Tightening torque | Auxiliary power supply: 0.6 N.m · Fault: 0.6 N.m · Relay test and fault reset: 0.6 N.m · Sensor: 0.6 N.m · Voltage presence: 0.6 N.m |
|---|
| Standards | EN/IEC 60947-2 Annex M · EN/IEC 60755 · UL 1053 · CAN/CSA C22.2 No. 144 |
|---|
| Width | 72 mm |
|---|
| Height | 72 mm |
|---|
| Depth | 78 mm |
|---|
| Cut-out dimensions | 68 x 68 mm |
|---|
| Product weight | 0.3 kg |
|---|
| IP degree of protection | IP40 on front face: conforming to EN/IEC 60529 · IP30 on side parts: conforming to EN/IEC 60529 · IP20 on connection terminals: conforming to EN/IEC 60529 |
|---|
| IK degree of protection | IK07 conforming to EN 50102 |
|---|
| Mechanical robustness | Fire resistance conforming to IEC 60695-2-1 · IK protection 2 joules: IK07 conforming to EN 50102 · Vibrations 13.2...100 Hz: 0.7 g · Vibrations 2...13.2 Hz: +/- 1 mm |
|---|
| Overvoltage category | IV |
|---|
| Electrical shock protection class | Class II |
|---|
| Electromagnetic compatibility | Conducted and radiated emissions: , B, conforming to CISPR 11 · Conducted radio-frequency immunity test: , 3, conforming to IEC 61000-4-6 · Electrostatic discharge immunity test: , 4, conforming to IEC 61000-4-2 · High-energy conducted susceptibility: , 4, conforming to IEC 61000-4-5 · Low-energy conducted susceptibility: , 4, conforming to IEC 61000-4-4 · Radiated susceptibility: , 3, conforming to IEC 61000-4-3 |
|---|
| Relative humidity | 95 % at 55 °C |
|---|
| Pollution degree | 3 conforming to IEC 60664-1 |
|---|
| Ambient air temperature for operation | -35…70 °C |
|---|
| Ambient air temperature for storage | -55…85 °C |
|---|
