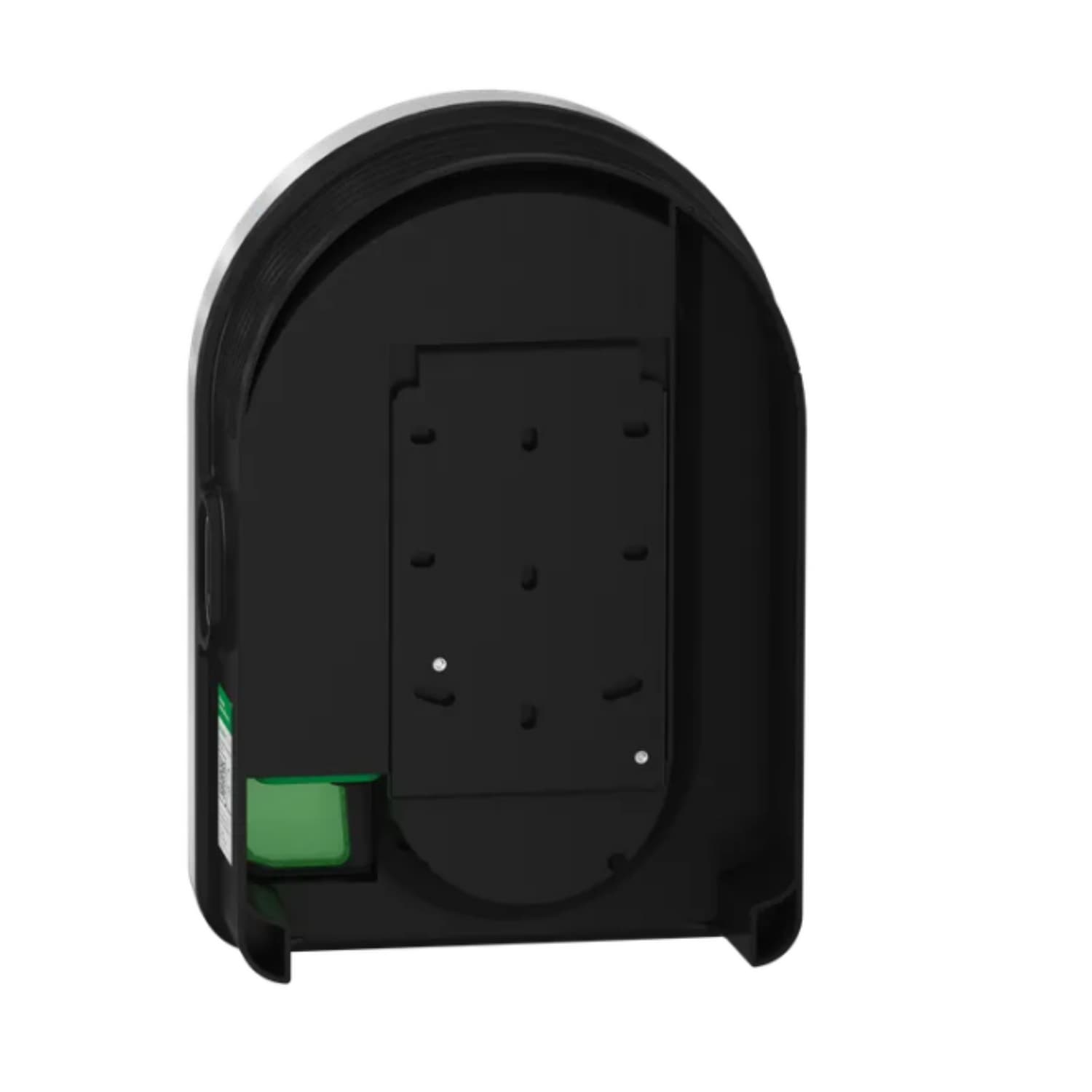

Schneider Electric Schneider Charge charging station. Charging station, Schneider Charge, 1P+N/3P+N, 1xT2S, 7.4/11/22kW, 16/32A.
Charging station, Schneider Charge, 1P+N/3P+N, 1xT2S, 7.4/11/22kW, 16/32A. Genuine Schneider Electric product supplied by United Force.
| Range | Schneider Charge |
|---|---|
| Product name | Schneider Charge |
| Product or component type | Charging station |
| Poles description | 1P + N · 3P + N |
| Mounting mode | Wall-mounted |
| Max power | 7.4 kW 32 A · 11 kW 16 A · 22 kW 32 A |
| Number of charge point | 1 |
| Connection to the vehicle | Socket-outlet T2 with shutter front face |
| rated supply voltage | 230...240 V AC 50...60 Hz +/- 10 % · 400 V AC 50...60 Hz +/- 10 % |
| Earthing system | IT 230 · TT · TN-S |
| Number of inputs | 1 |
| Input type | Dry contact for dynamic energy management |
| Local signalling | Red, green and blue 1 LED, function: status indication |
| Protection type | Earth-leakage protection |
| Height | 352 mm |
| Width | 244 mm |
| Depth | 117 mm |
| Product weight | 3.2 kg |
| Colour | White/green |
| Standards | EN 61851 · IEC 61851-1 · EN 61000-6-1 · EN 61000-6-3 · IEC 62955 |
| Communication network type | Wi-Fi · Wireless · Ethernet |
| Communication port protocol | OCPP 1.6, for connection to the Schneider Electric Wiser app |
| IP degree of protection | IP55 conforming to EN/IEC 60529 |
| IK degree of protection | IK10 |
| Ambient air temperature for operation | -30…45 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0...2000 m |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 32 |
| Package 2 Height | 104.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 166.416 kg |
