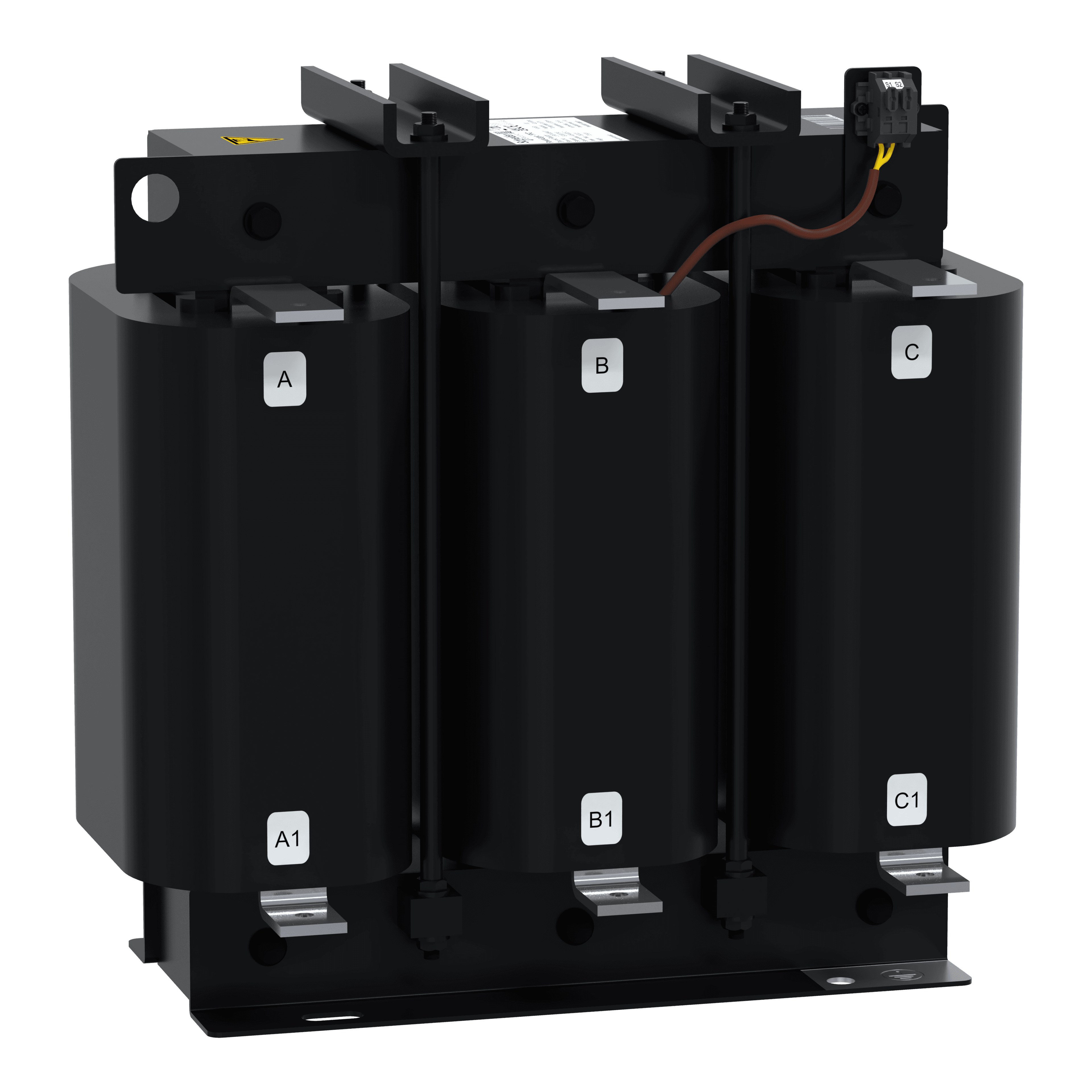

Schneider Electric PowerLogic detuned reactor, rated 2 A. Anti Harmonic PowerLogic PFC detuned reactor, 100kvar 228Hz (3.8) 7% 60Hz 400V.
Anti Harmonic PowerLogic PFC detuned reactor, 100kvar 228Hz (3.8) 7% 60Hz 400V. Genuine Schneider Electric product supplied by United Force.
| Range | PowerLogic |
|---|---|
| Device short name | DR |
| Product or component type | Detuned reactor |
| Network frequency | 60 Hz |
| Reactive power rating | 100 kvar for 400 V AC 60 Hz |
| Network rated voltage | 400 V AC 60 Hz |
| Tuning order | 3.8 - 228 Hz - 7 % - 60 Hz |
| power losses (max) | 480 W |
| Value of inductance | 0.305 mH |
| Inductance tolerance | - 5 % to 5 % per phase |
| Fundamental current rating | 144.3 A |
| RMS current rating | 155.9 A |
| Electrical insulation class | Class H |
| [Ui] rated insulation voltage | 1.1 kV |
| Dielectric test voltage | 4 kV 60 Hz 1 minute |
| [Imp] maximum permanent current | 1.2 x I1 |
| Harmonic current spectrum | 3.7 % x I3 · 38.2 % x I5 · 13.6 % x I7 · 4.9 % x I11 |
| Dynamic withstand current | 2.2 x Isc |
| [Ith] conventional free air thermal current | 2 A at 250 V AC 50 Hz |
| Type of installation | Indoor installation |
| Type of cooling | Forced convection |
| Connections - terminals | Pad terminal |
| fixing center | 200 x 125 mm |
| Height | 350 mm |
| Width | 350 mm |
| Depth | 220 mm |
| Product weight | 35 kg |
| Standards | IEC 60068 |
| IP degree of protection | IP00 |
| Operating altitude | <= 2000 m |
| Ambient air temperature for operation | 0…55 °C at 1000...2000 m |
| Average ambient air temperature for operation | 50 °C at 1000...2000 m (average over 24 hours) · 35 °C at > 1000...2000 m (average over 1 year) |
| Climatic withstand | Relative humidity: 20...80 % · Salt mist (400 V/50 Hz) : 250 hours |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 53.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
| Package 2 Weight | 94.700 kg |
| Warranty (in months) | 18 |
