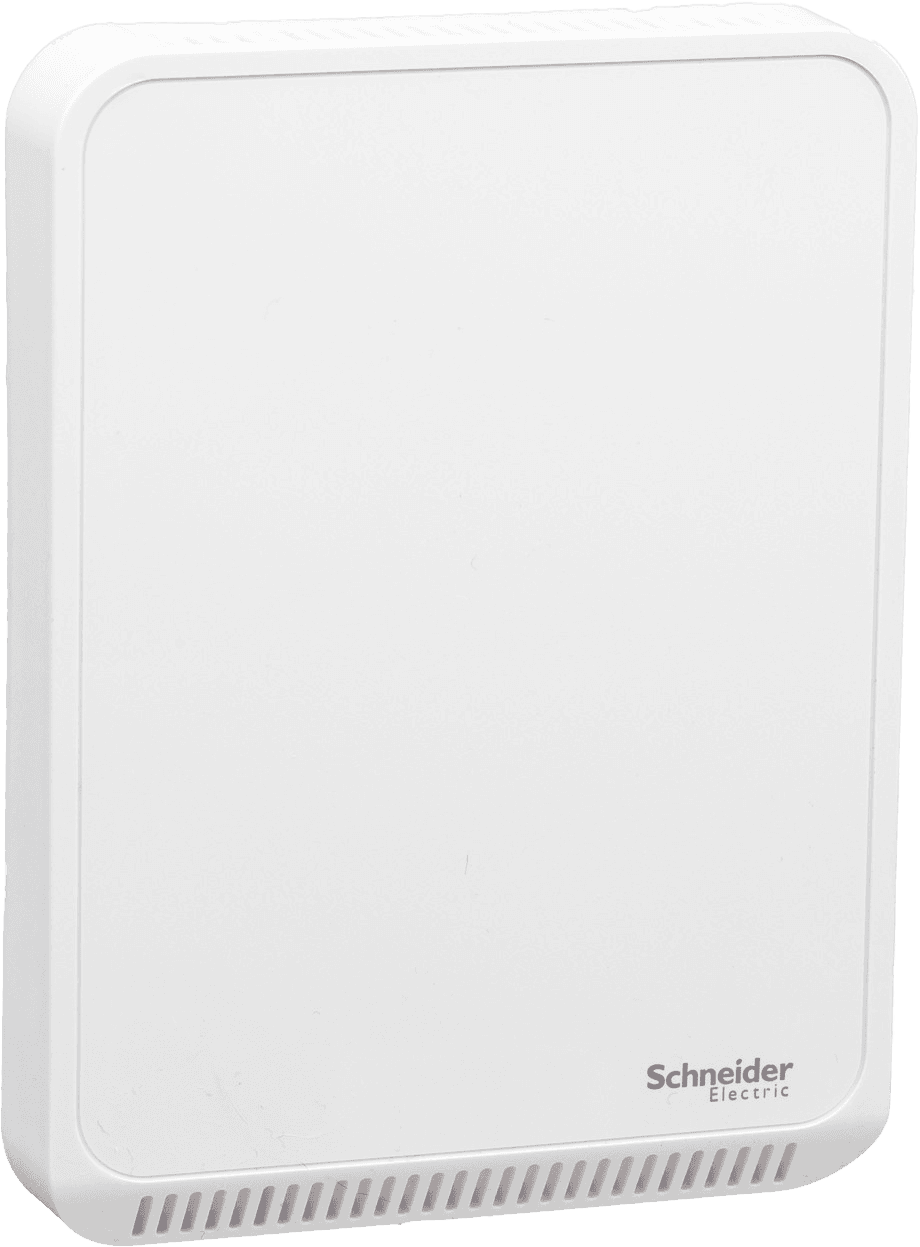

Schneider Electric SpaceLogic Room Unit humidity sensor. Sensor, SpaceLogic SLA Series, humidity, room, temperature, analog outputs, matte white housing.
Sensor, SpaceLogic SLA Series, humidity, room, temperature, analog outputs, matte white housing. Genuine Schneider Electric product supplied by United Force.
| Range | SpaceLogic |
|---|---|
| Product or component type | Humidity sensor |
| Product name | SpaceLogic Room Unit |
| Type of measurement | Humidity · Temperature |
| Device application | HVAC · Temperature control · Fan speed controller |
| Product specific application | Humidity control |
| Product certifications | CE conforming to EN 61000-6-2 · CE conforming to EN 61000-6-3 · CE conforming to EN 61326-1 · RCM · EAC · ICES-003 · CULus |
| Display type | Without display |
| location | Living space |
| Mounting support | Wall-mount |
| Depth | 24 mm |
| Height | 85 mm |
| Width | 115 mm |
| Network frequency | 50 Hz · 60 Hz |
| Ambient air temperature for operation | 0…50 °C |
| Standards | UL 916 · FCC part 15 class B |
| Colour | White |
| Sensor type | Transmitter · Thin-film capacitive |
| [Us] rated supply voltage | 24 V AC · 20...30 V DC |
| Device presentation | Complete product |
| Surface finish | Matt |
| Communication network type | Wired |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Function available | With temperature sensor · With humidity sensor |
| Hysteresis | 1.5 % |
| Connections - terminals | Screw terminal - 2 cable(s) (24 AWG...18 AWG) |
| Number of outputs | 1 fan · 1 configurable |
| Output type | Analog |
| Output voltage | 0...10 V for fan speed · 0...5 V for configurable analog output · 0...10 V for configurable analog output |
| Range compatibility | EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers |
| Humidity setting range | 0…100 % |
| Temperature setting range | 10…35 °C · 0…50 °C |
| Warranty (in months) | 18 |
