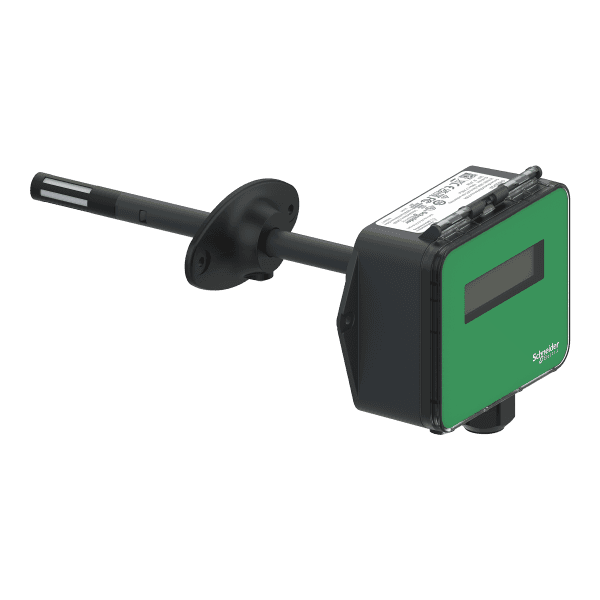

Schneider Electric Plant Room Air Quality Sensor humidity sensor. Humidity sensor, SpaceLogic Sensors, SHD2 Series, LCD display, BACnet, Modbus, temperature transmitter.
Humidity sensor, SpaceLogic Sensors, SHD2 Series, LCD display, BACnet, Modbus, temperature transmitter. Genuine Schneider Electric product supplied by United Force.
| Range of product | SpaceLogic |
|---|---|
| Product or component type | Humidity sensor |
| Type of measurement | Humidity · Temperature |
| Device application | HVAC |
| location | Indoor |
| Calibration certificate | Humidity: replaceable RH element available in 1% & 2% with NIST |
| Sensor type | Thin film capacitive, replaceable humidity · Solid state temperature · Transmitter temperature |
| Colour | Duct: |
| Communication port protocol | BACnet MS/TP · Modbus RTU |
| Communication network type | Wired |
| Depth | 249 mm |
| Height | 100 mm |
| Width | 133 mm |
| Display type | LCD display |
| Connections - terminals | Screwless terminals |
| Enclosure material | Polycarbonate strong housing |
| Humidity measurement accuracy | +/- 2 % 0...100 % RH |
| Relative humidity | 0…95 % RH, non-condensing |
| Analogue output type | 4...20 mA · 0...5 V DC · 0...10 V DC |
| Output type | Analog |
| Standards | EN 61000 · EN 61000-6-2 · EN 61000-6-3 · EN 61326-1 · UL 916 · FCC part 15 class A · REACH · ICES-003 · RoHS |
| Storage Relative Humidity | 0…95 % RH, non-condensing |
| [Us] rated supply voltage | 20...30 V DC · 24 V AC |
| Temperature measurement accuracy | +/- 0.2 °C |
| Measurement temperature | -35…60 °C |
| Temperature resolution | 0.1 °C |
| Product name | Plant Room Air Quality Sensor |
| Product brand | Schneider Electric |
| Range | SHD2 Series |
| Market segment | Buildings |
| IP degree of protection | IP65 |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2 kg |
| Warranty (in months) | 18 |
