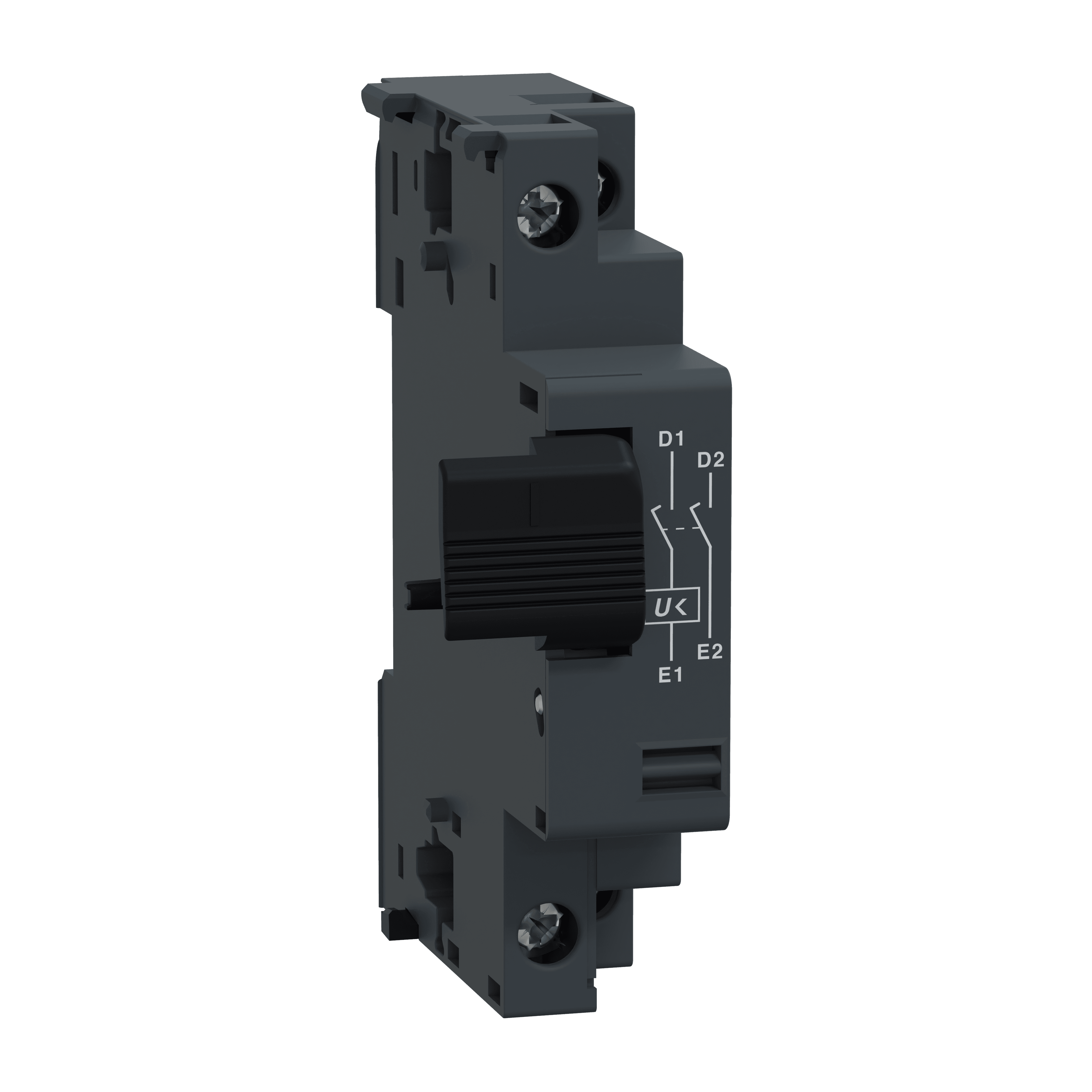

Schneider Electric TeSys · TeSys Deca safety undervoltage trip. Undervoltage release (MN),TeSys Deca frame 2,380-400V AC 60Hz,safety device for GV2ME.
Undervoltage release (MN),TeSys Deca frame 2,380-400V AC 60Hz,safety device for GV2ME. Genuine Schneider Electric product supplied by United Force.
| Range | TeSys · TeSys Deca |
|---|---|
| Product or component type | Safety undervoltage trip |
| Device short name | GVAX |
| [Uc] control circuit voltage | 380...400 V AC 60 Hz |
| Range compatibility | TeSys GV2ME · TeSys Deca |
| Control circuit voltage limits | 0.85...1.1 Un |
| [Ui] rated insulation voltage | 690 V AC conforming to IEC 60947-1 · 600 V AC conforming to UL 60947-4-1 · 600 V AC conforming to CSA C22.2 No 60947-4-1 |
| Threshold tripping voltage | 0.7...0.35 Un |
| Inrush power in VA | 12 VA AC |
| Inrush power in W | 8 W |
| Hold-in power consumption in VA | 3.5 VA AC |
| Hold-in power consumption in W | 1.1 W |
| Operating time | 10...15 ms conforming to IEC 60947-1 |
| On-load factor | 100 % |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1…2.5 mm²solid · Screw clamp terminals 2 cable(s) 1…2.5 mm²solid · Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end · Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end · Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end · Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end |
| Tightening torque | < 1.4 N.m on screw clamp terminals |
| Mechanical durability | 30000 cycles |
| Quantity per set | Set of 10 |
| Height | 89 mm |
| Width | 18 mm |
| Depth | 66 mm |
| Product weight | 0.105 kg |
| Colour | Dark grey |
| Warranty (in months) | 18 |
