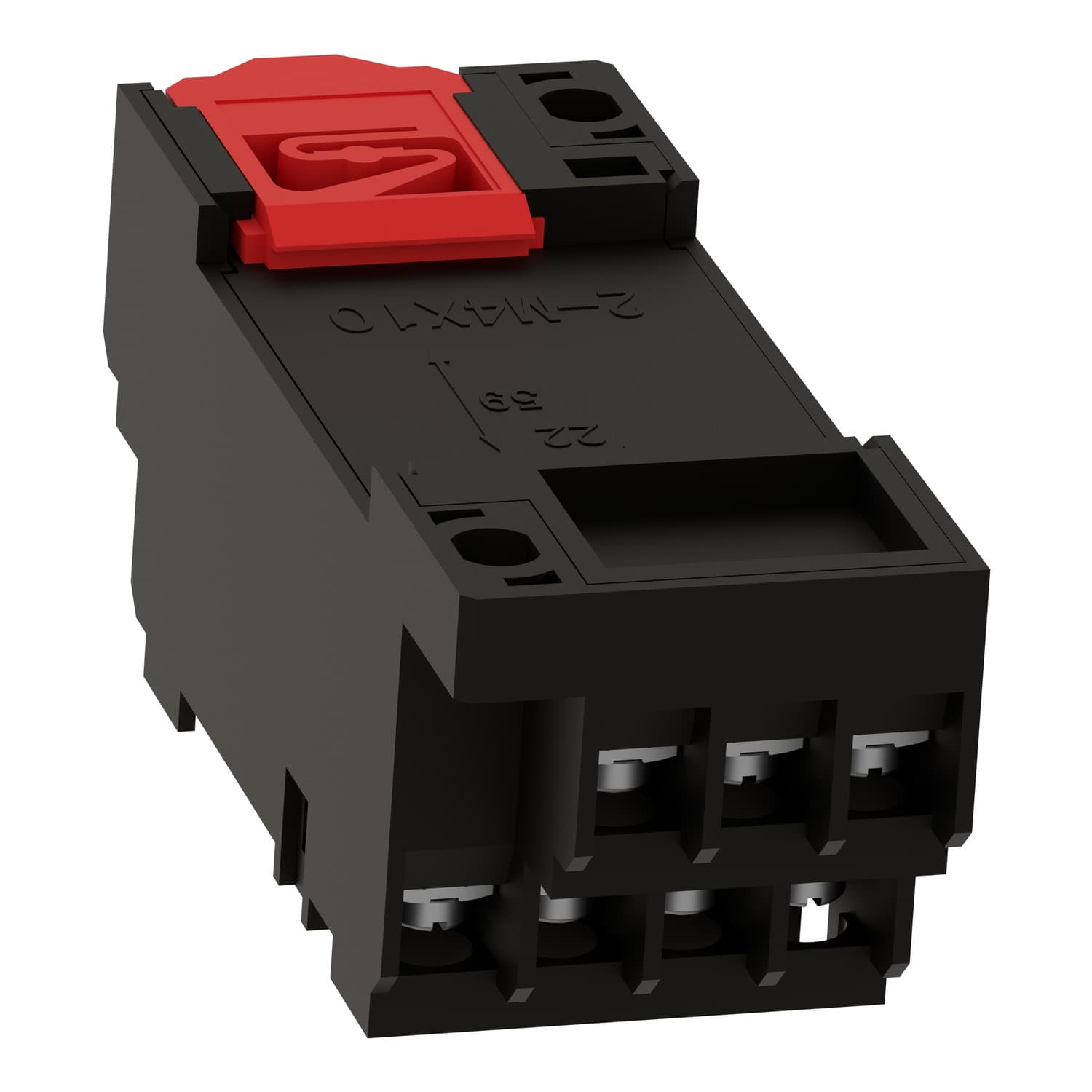

Schneider Electric socket, rated 7 A. socket, Harmony Electromechanical Relays, for RXM2LB RXM4LB relays,7A, screw clamp socket, mixed contact terminal.
socket, Harmony Electromechanical Relays, for RXM2LB RXM4LB relays,7A, screw clamp socket, mixed contact terminal. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Product compatibility | Plug-in relay RXM with 2 C/O contact · Plug-in relay RXM with 4 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 7 A · 20 A + 0.5 ms per user registered |
| Product or component type | Socket |
| Contacts type and composition | 4 C/O |
| [Ue] rated operational voltage | 250 V AC conforming to IEC |
| Connections - terminals | Screw clamp terminals, 1 x 0.2...1 x 1.0 mm² (24 AWG...17 AWG) flexible with cable end · Screw clamp terminals, 2 x 0.2...2 x 1.0 mm² (24 AWG...17 AWG) flexible with cable end · Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (20 AWG...16 AWG) solid without cable end · Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end |
| Tightening torque | < 0.8 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) · Clip-on (35 mm symmetrical DIN rail) |
| Contact terminal arrangement | Mixed |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 29 mm |
| Product weight | 0.053 kg |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 · CE · UL 508 |
| Marking | CE |
| Ambient air temperature for storage | -55…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 6.8 cm |
| Package 2 Width | 8.0 cm |
| Package 2 Length | 14.9 cm |
| Package 2 Weight | 0.541 kg |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 270 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 14.9 kg |
| Warranty (in months) | 18 |
