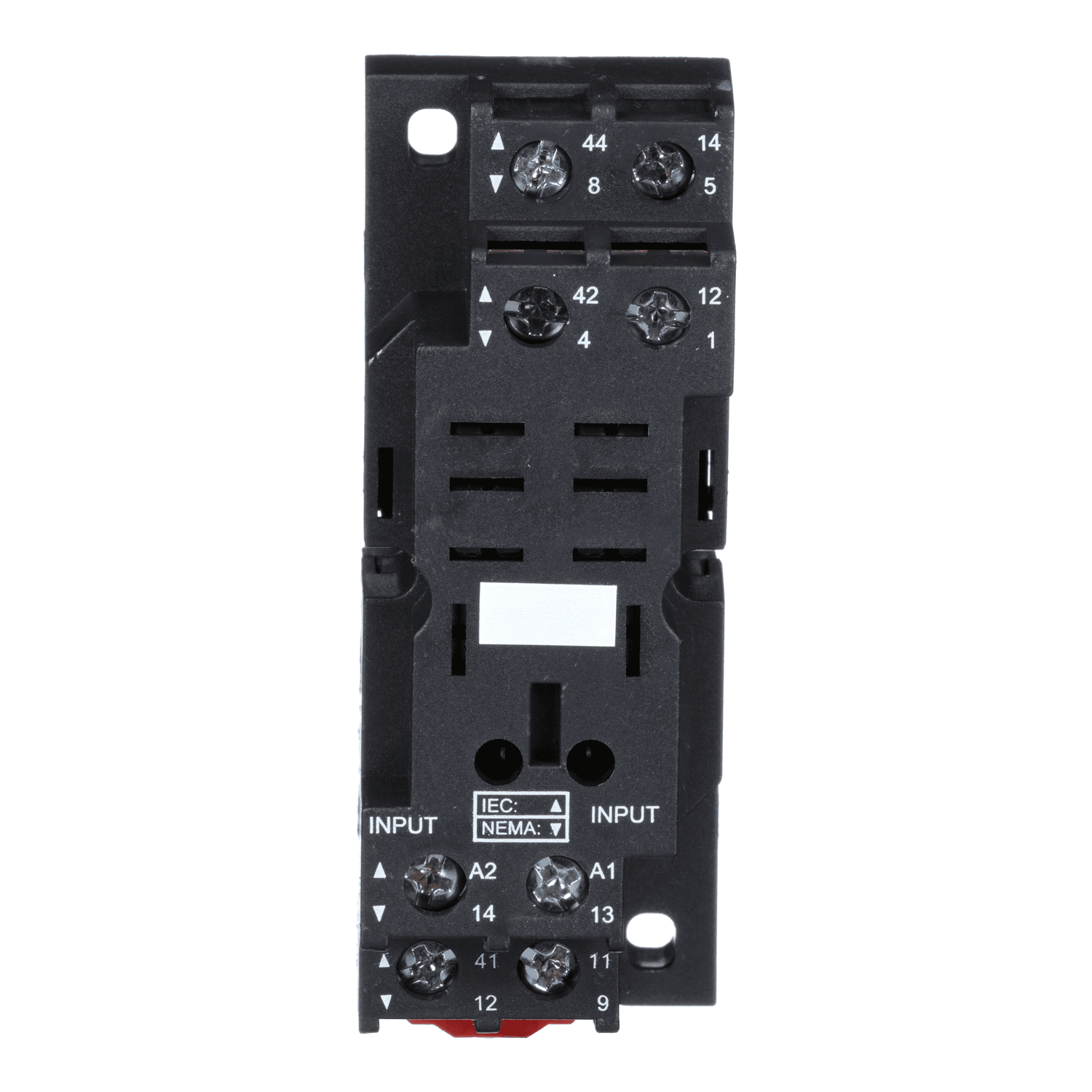

Schneider Electric socket, rated 16 A. Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM2 relays.
Harmony, plugin relay socket, mixed contact, 16 A, 250 V, screw clamp, for RPM2 relays. Genuine Schneider Electric product supplied by United Force.
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Device short name | RPZ |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RPM with 2 C/O contact |
| Contacts type and composition | 2 C/O |
| [Ith] conventional free air thermal current | 16 A |
| [Ue] rated operational voltage | < 250 V |
| Shape of pin | Flat |
| Contact terminal arrangement | Mixed |
| Tightening torque | < 1 N.m for M3.5 screw(s) |
| Fixing mode | By screw (panel) · Clip-on (35 mm symmetrical DIN rail) |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 30 mm |
| Product weight | 0.054 kg |
| Connections - terminals | - screw clamp terminals, flexible cable with cable end 1 x 0.5...1 x 2.5 mm² / 20 AWG...14 AWG · - screw clamp terminals, solid cable without cable end 1 x 0.5...1 x 1.5 mm² / 20 AWG...16 AWG · - screw clamp terminals, flexible cable with cable end 2 x 0.5...2 x 2.5 mm² / 20 AWG...14 AWG · - screw clamps terminals, solid cable without cable end 2 x 0.5...2 x 1.5 mm² / 20 AWG...16 AWG |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Dielectric strength | 2500 V |
| Standards | IEC 61984 |
| Product certifications | UL · CSA |
| Marking | CE |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 6.7 cm |
| Package 2 Width | 9.2 cm |
| Package 2 Length | 15.8 cm |
| Package 2 Weight | 577 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 12.388 kg |
| Warranty (in months) | 18 |
